Desktop Automated Glue Dispensing Machine

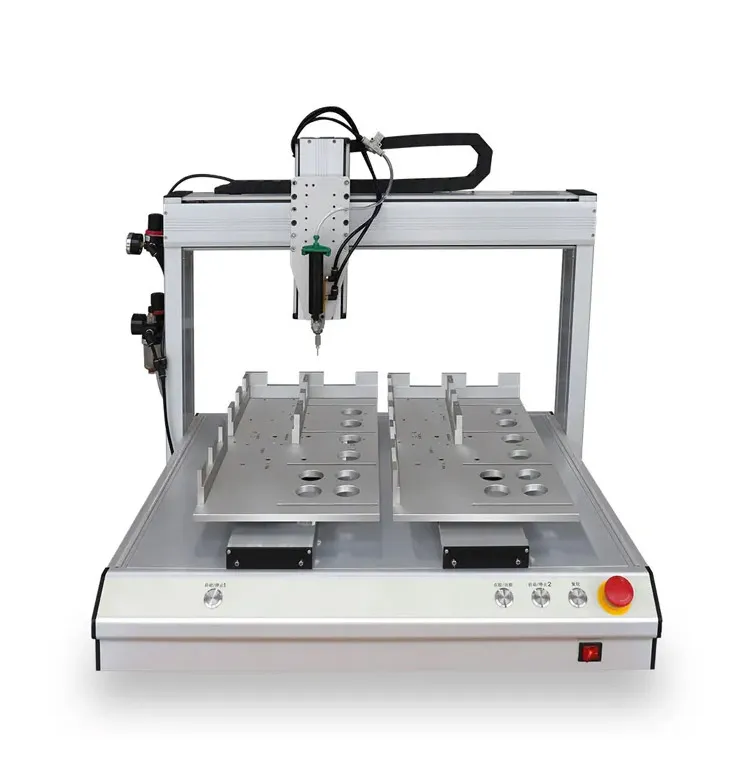

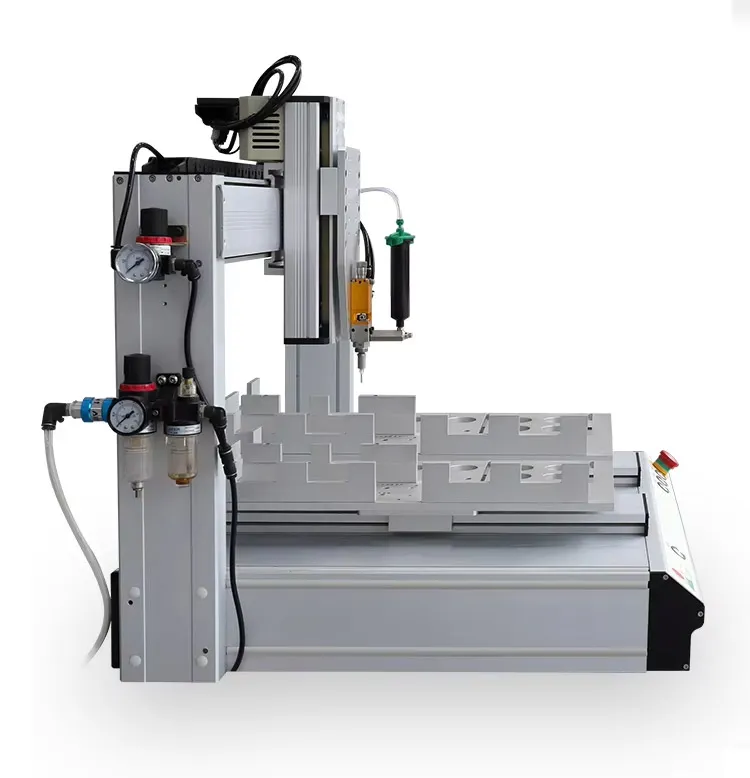

Desktop 3-Axis Automated Glue Dispensing Machine with Dual Station

This desktop 3-axis automated glue dispensing machine equipped with dual stations, it allows continuous operation without stopping, improving productivity while maintaining high accuracy.
1) Processing with bonding, infusion, coating, sealing, filling, drop, linear/ arc/ round gluing, etc.
2) Dispense in point, line, surface, arc, circle and irregular curve, and triaxial linkage function is available.
3) Set the amount of glue size, glue speed, glue time, stop glue time, glue stability, no glue leakage.
4) The plate multi - jigs work in circulation, effectively improve the working efficiency.
5) During high-speed operation, it is extremely smooth and operates with extremely low noise.

Send Inquiry Now

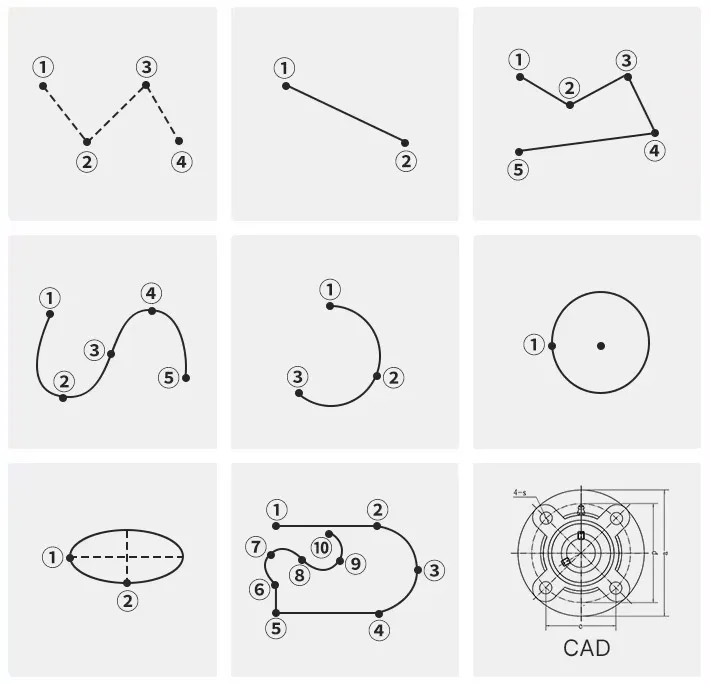

The only PC-E BASE control system capable of 3D arc interpolation

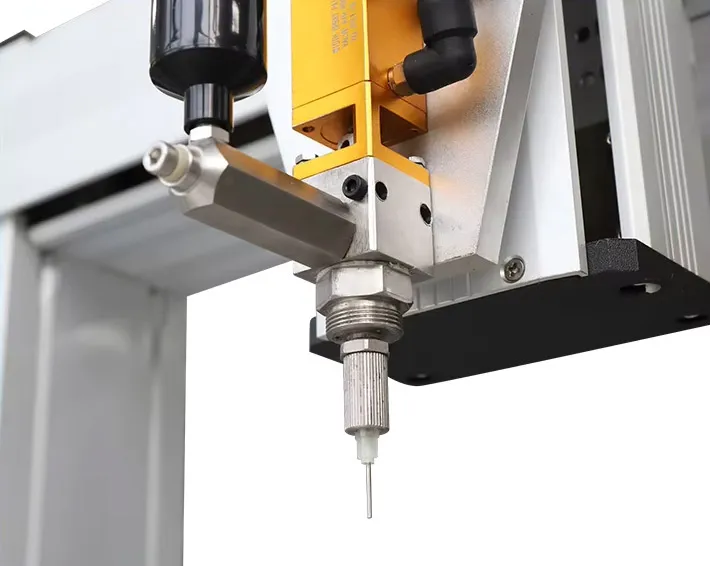

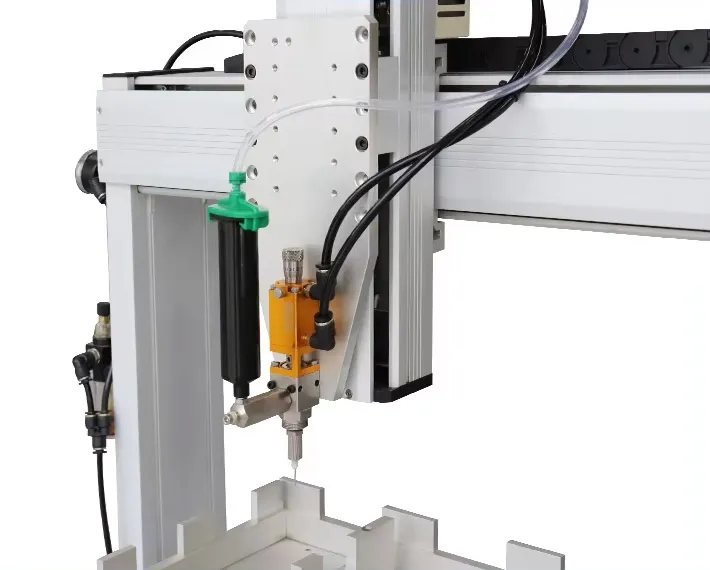

The carefully developed control card makes this automated glue dispensing machine a truly PTP and CP three-axis arc patching equipment, allowing you to use it with confidence for any non planar 3D glue dispensing path. For example, it can be used for dispense in point, line, surface, arc, circle and irregular curve.

The 3-axis glue dispensing machine can operate independently without the need for an external computer. Not only is the installation convenient, operation and setting are also simple.

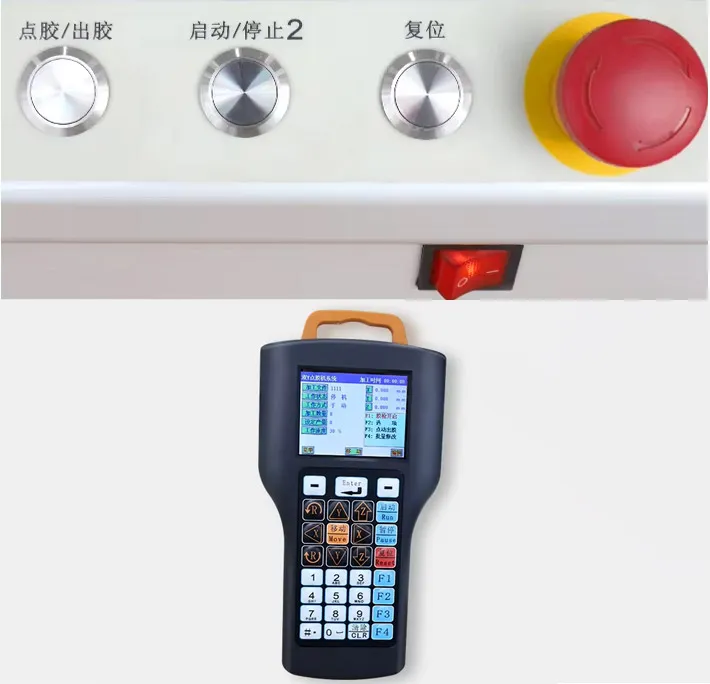

Equipped with a graphical button design, the teaching box allows you to easily set any dispensing path with just one click. More can easily complete a variety of path matrix replication, offset modification, correction point setting and program transmission between each machine and other super functions.
The button switches are of European imported brand, featuring high sensitivity and durability.

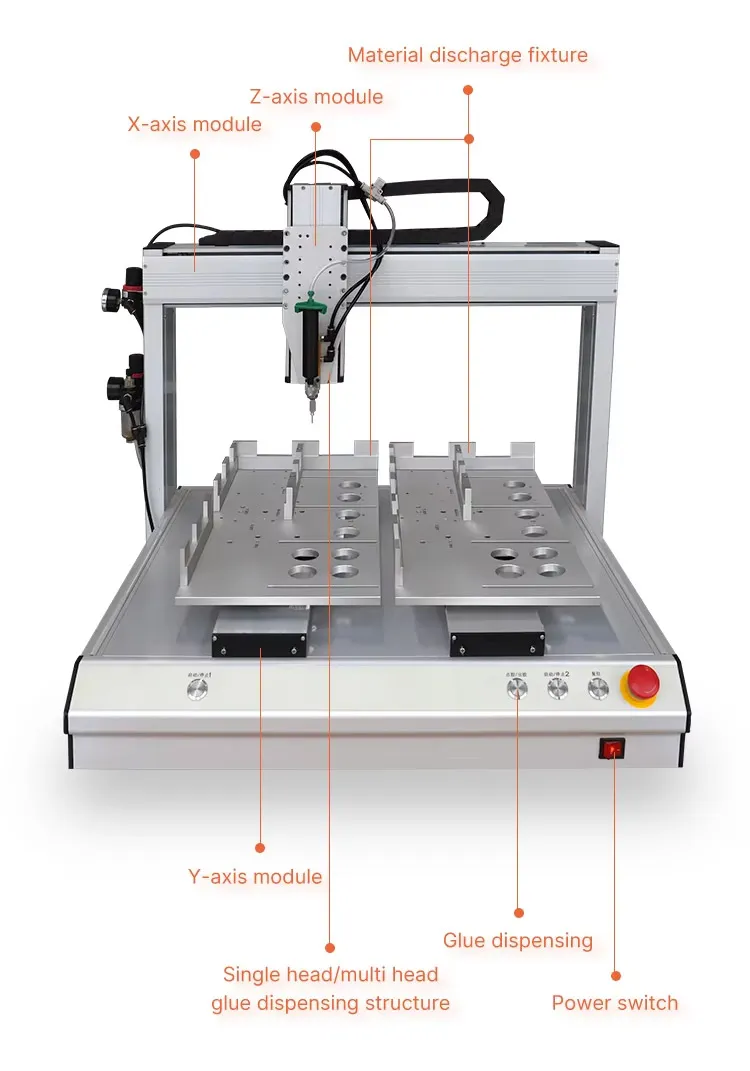

Single machine operation and easy installation

1.The high-strength equipment body and CNC processing ensure the required flatness and perpendicularity for assembly.

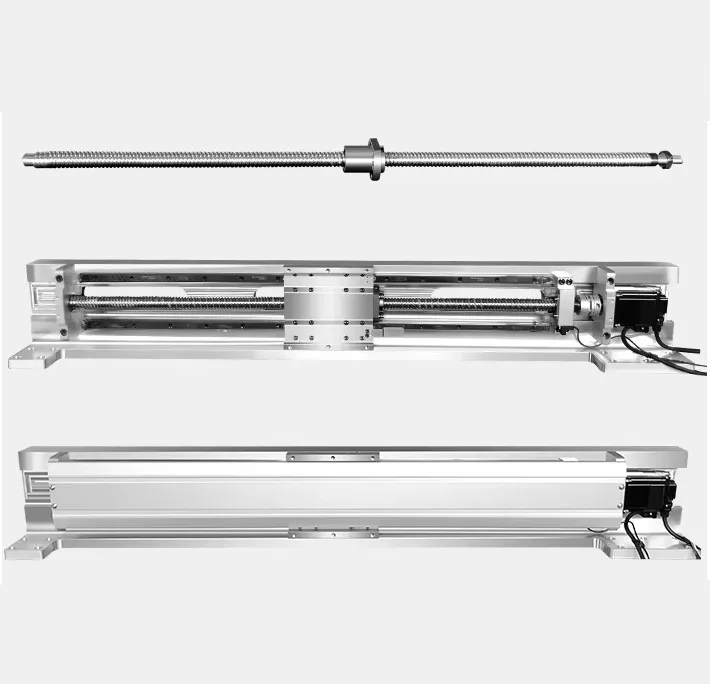

2. The high-performance combination of Japanese Sanstar ring synchronous belts, Taiwan PMI linear guides, and Japanese Shinonuma stepper motors.
3. The aluminum alloy surface undergoes special treatment with non-stick adhesive, making the cleaning of the machine extremely easy.
4. By adopting a special assembly process involving synchronous pulleys and motors, combined with the latest Japanese technology for synchronous belts, this design completely resolves the problems of belt tensioning and loosening that arise over time.
5. Modular assembly process. Each key component and critical position can be disassembled independently. Any damaged parts can be quickly replaced.
6. The button switches are of European imported brand, featuring high sensitivity and durability.
7. Utilizing imported brand resilient cable shielding cables ensures a more worry-free operation of the machine, completely eliminating potential risks such as wire breakage and phase deficiency.
8. The machine base plate is thickened and undergoes insulation surface treatment. Four adaptive large round disc feet provide stable support.

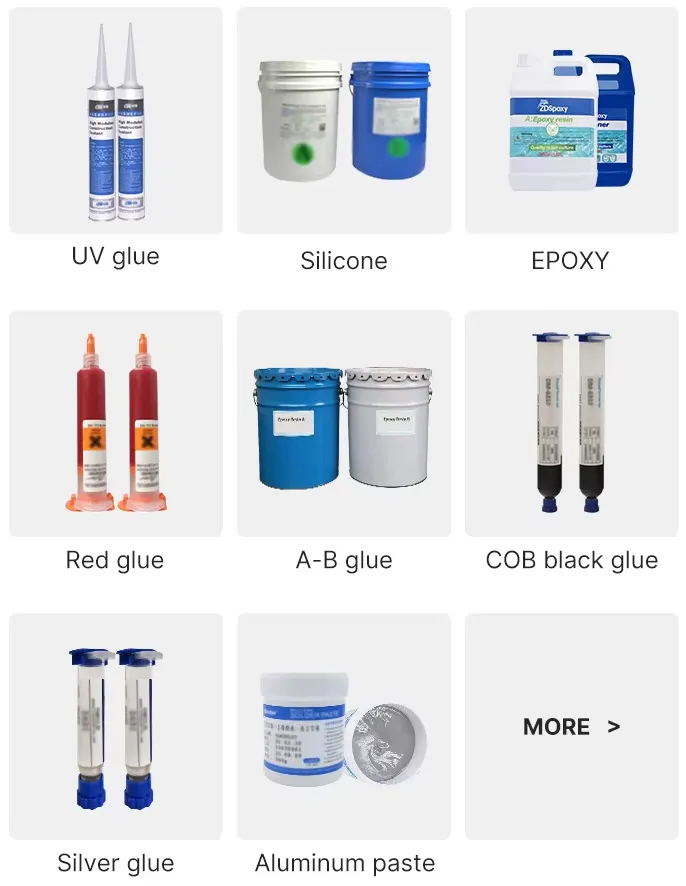

The automated glue dispensing machine equipment can be used with various common adhesives, such as UV glue, silicone, epoxy resin, red glue, silver glue, AB glue, COB black glue, conductive adhesive, thermal conductive aluminum paste, and instant glue.

Suitable for various needs in the dispensing industry

All Technological Processes Can be Assembled According to Customer Product

Travel (mm)	X-axis: 500 / Y1-axis: 450 / Y2-axis: 450 / Z-axis: 80
Machine body weight	80 kg
Scope of work	Double Y platform, 600 × 400 mm workspace
Drive method	Stepper motor
Speed	X-axis, Y-axis: 500 mm/sec
Bearing weight	X-axis: 10 kg / Z-axis: 10 kg
Controller	Built-in three-axis controller
Interpolation function	3D straight line and arc interpolation
Installation	No corrosive gases, volatile gases, or acidic oil
Power supply	Single-phase AC220V ±10%, 50/60Hz
Maximum speed (X-axis)	MAX 400 mm/sec
Maximum speed (Y-axis)	MAX 400 mm/sec
Repetitive accuracy	±0.025 mm/axis
Motion control card	With RS-232 interface
Maximum load	Y-axis: 3 kg / Z-axis: 1.5 kg
Movement speed	X & Y / Z: 0.1–800 / 350 mm/sec
Decomposition capacity	0.01 mm/axis
Display method	Handheld controller
Transmission mode	Timing belt
I/O signal	16 inputs / 16 outputs
Working environment temperature	5–40°C
Working environment humidity	20–90% (no condensation)

FAQs

We are a professional manufacturer specializing in automated glue dispensing machines, with in-house R&D, assembly, testing, and quality control. This enables us to ensure stable quality, flexible customization, and competitive factory-direct pricing.

Yes. We provide full OEM and ODM services, including mechanical design, software customization, branding, and functional configuration based on your production requirements.

Pricing depends on machine configuration, customization level, dispensing system selection, and optional functions. We provide factory-direct quotations after fully understanding your application and process requirements.

Yes. You may send your samples and glue materials to us for free dispensing tests. We will provide test videos and reports for confirmation before order placement.

We offer comprehensive after-sales support, including online technical assistance, video troubleshooting, spare parts supply, and lifetime technical consultation.

The standard warranty period is 12 months for the complete machine (excluding consumable parts). Extended warranty options are available upon request.

Yes. We provide detailed installation manuals, operation videos, and remote training support. On-site installation and training services can also be arranged if required.

Standard machines are typically completed within 7–15 working days. Customized machines usually require 30–45 working days, depending on customization complexity.

This machine is widely used in semiconductor packaging, PCB component fixation and protection, LCD glass packaging, mobile phone PCB and button dispensing, speaker dispensing, battery box sealing, automotive parts coating, hardware surface coating, and quantitative gas or liquid filling and coating. It can be flexibly configured to meet diverse industrial process requirements.
