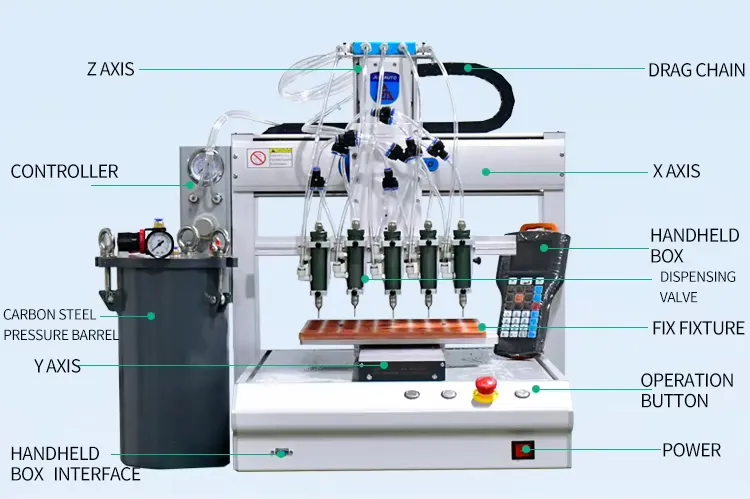

Benchtop 3 Axis Automatic Glue Dispenser Machine with 5 Heads,5L Pressure Barrel,Single-Station

This benchtop 3-axis automatic glue dispenser machine features 5 independent dispensing heads and a 5L pressure barrel, enabling multi-point simultaneous operation to greatly boost production efficiency. Equipped with a single-station platform, it is easy to operate and supports various dispensing patterns, including dots, lines, and surfaces, with high precision up to ±0.02mm, ensuring consistent, clean dispensing without stringing or dripping. The system allows flexible control modes and batch program editing, making it ideal for PCBs, electronic components, handicrafts, and small parts requiring high-precision dispensing.

Send Inquiry Now

Key Features

Durable Aluminum Body: Lightweight, corrosion-resistant, and thermally stable for long service life.
Multi-Head Dispensing (5 Heads): Enables simultaneous dispensing on multiple points, significantly improving efficiency.
5L Pressure Barrel: Large-capacity pressure tank ensures continuous glue supply without frequent refilling.
3-Axis Control System: Ensures precise positioning and smooth motion across X, Y, and Z axes.
User-Friendly Programming: Supports teach-pendant or PC-based path programming with intuitive interface.
Flexible Patterns: Capable of dots, lines, arcs, circles, and complex trajectories.
High Repeatability: ±0.02 mm positioning accuracy ensures stable and precise output.
Compatible with Multiple Adhesives: Suitable for epoxy, UV glue, silicone, PU, and other industrial adhesives.
Compact Benchtop Design: Space-saving structure ideal for R&D labs or small-scale production lines.

Product Parameters

Model	XHD-D331
Number of Controlled Axes	3-axis
Effective Travel	X axis: 300mm / Y1 axis: 300mm / Z axis: 100mm
Transmission Mode	Double-track timing belt / Lead screw module
Power Source	Stepper motor / Servo motor
Top Speed	500mm/sec
Repeat Accuracy	±0.02mm
Maximum Load	X/Y/Z 5kg / 5kg / 3kg
Control System	Hand-held three-axis control system
File Storage Space	400 sets of processing files, up to 9999 points in a single file
Power	AC110–250V 50–60Hz 350W

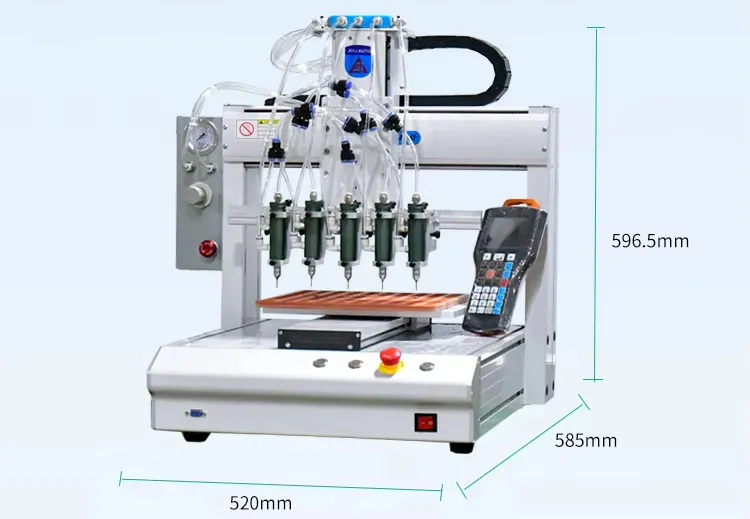

Size (L × W × H)	520mm × 585mm × 596mm
Weight	44kg

Benchtop 3 Axis Automatic Glue Dispenser Machine with 5 Heads,5L Pressure Barrel,Single-Station

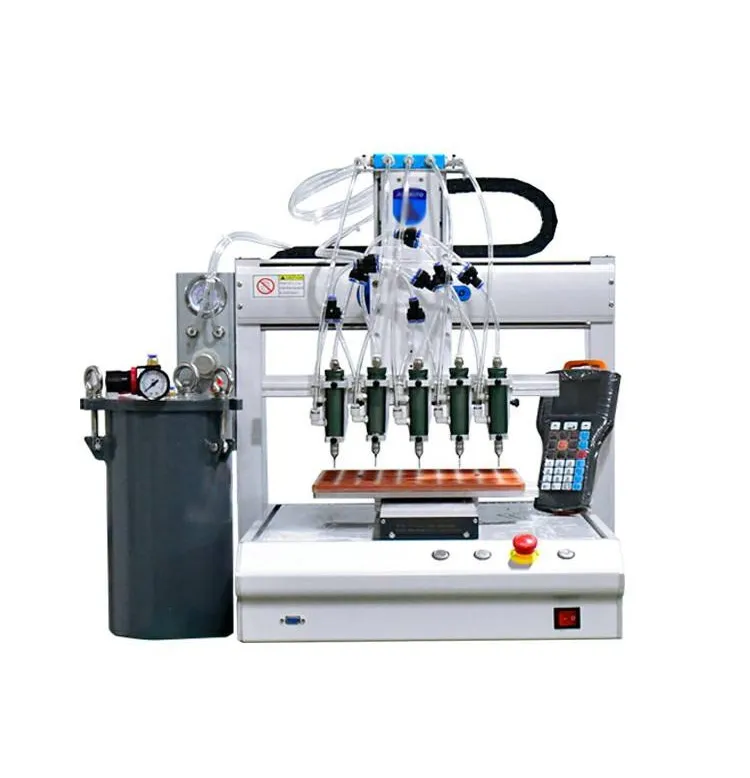

Benchtop 3 Axis Automatic Glue Dispenser Machine

FAQs

We are a professional automatic glue dispenser machine manufacturer with in-house design, production, assembly, and quality control. This allows us to ensure stable quality, fast delivery, and competitive pricing.

Yes, we support both OEM and ODM services. Our engineering team can customize machine structure, functions, appearance, and software to meet your specific production requirements.

Absolutely. We can customize dispensing heads, control software, pressure barrel capacity, motion accuracy, and automation functions based on your specific application and production workflow.

The glue dispenser machine supports a wide range of adhesives, including two-component (A/B) epoxies, silicones, polyurethanes, and low-to-high viscosity industrial glues.

The price depends on machine specifications, optional configurations, and customization requirements. Please contact our sales team to receive a detailed quotation tailored to your needs.

Yes, our experienced engineers provide technical support for integrating the glue dispensing machine into existing production lines, helping improve automation efficiency and production stability.

Delivery time depends on the machine configuration and customization level. Standard models are typically delivered within 1–2 weeks after order confirmation.
