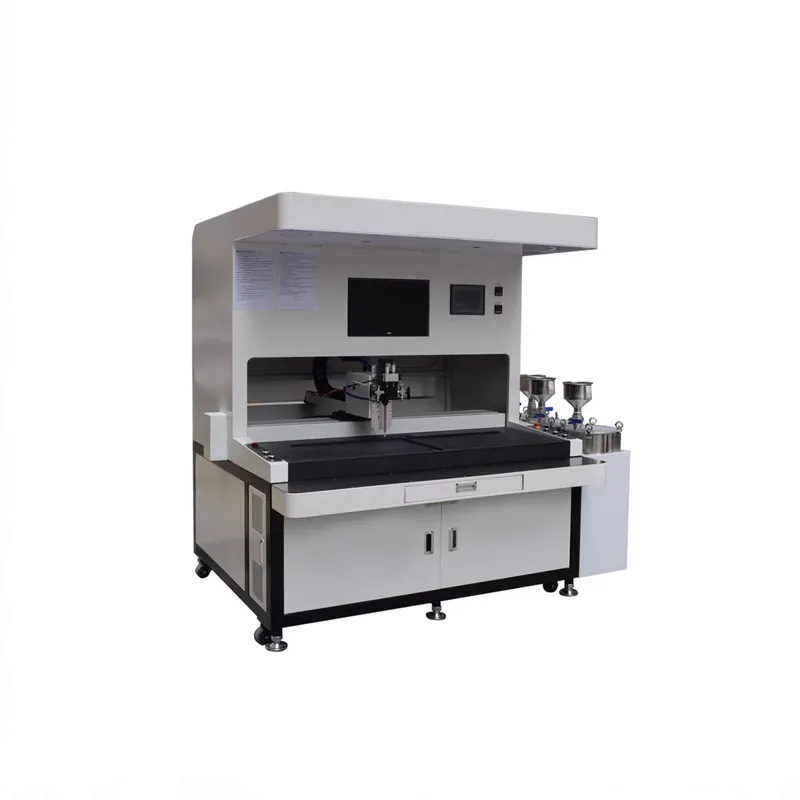

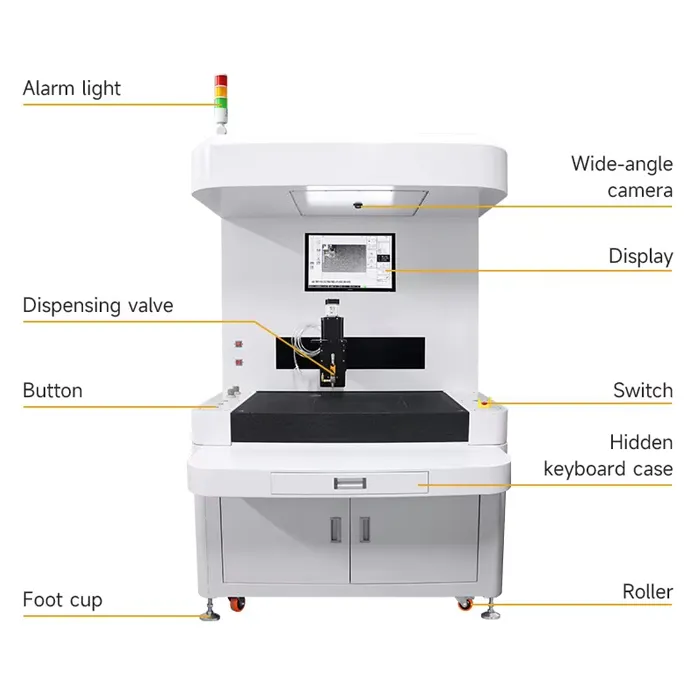

Floor Automatic Three-Axis CCD Vision Glue Dispenser Machine

The automatic glue dispenser machine combines high-precision motion control with advanced CCD vision positioning to achieve accurate, consistent, and fully automated dispensing. Equipped with real-time visual alignment and automatic offset correction, it effectively compensates for product position deviations, ensuring stable dispensing quality even with complex or irregular workpieces. The floor-standing structure supports larger work areas and higher load capacity, making it ideal for mass production. With programmable 3-axis linkage, it supports dotting, line dispensing, surface coating, and complex paths, while delivering high repeatability, reduced manual intervention.

Send Inquiry Now

Features:
1.Computer control, Windows operating system, fault sound and light alarm and menu display.

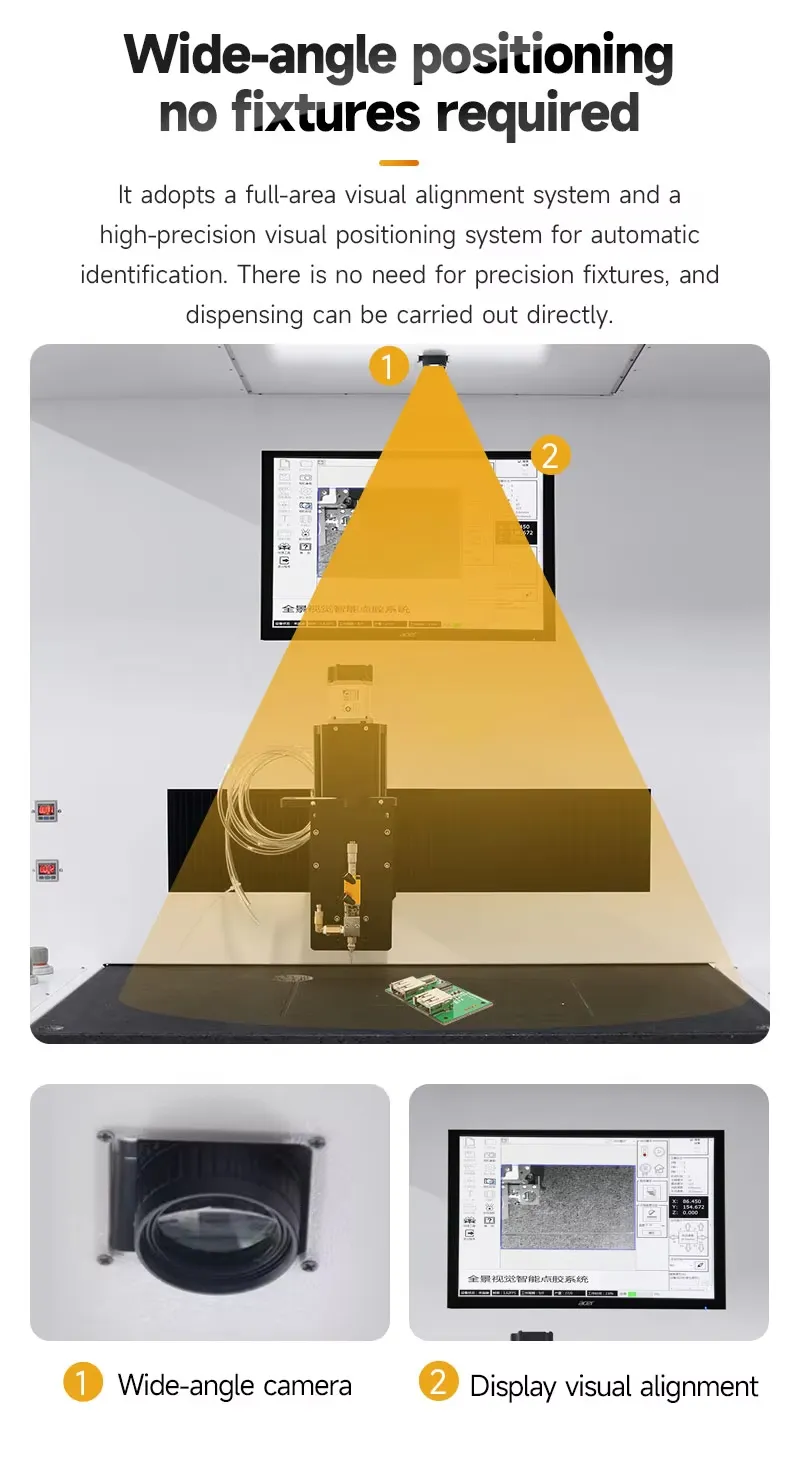

2.CCD visual positioning system,5 million industrial camera recognition.
3.Linear motor + servo motor + screw drive.

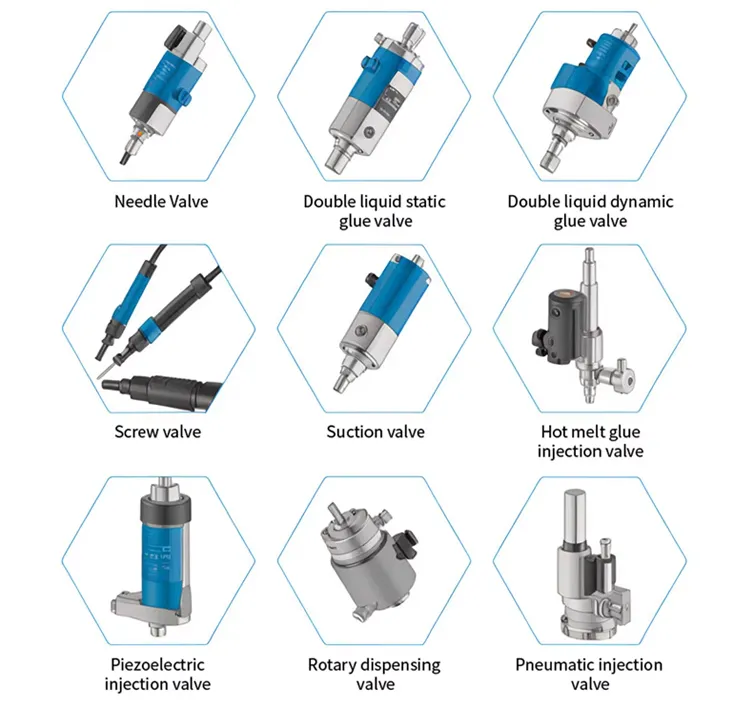

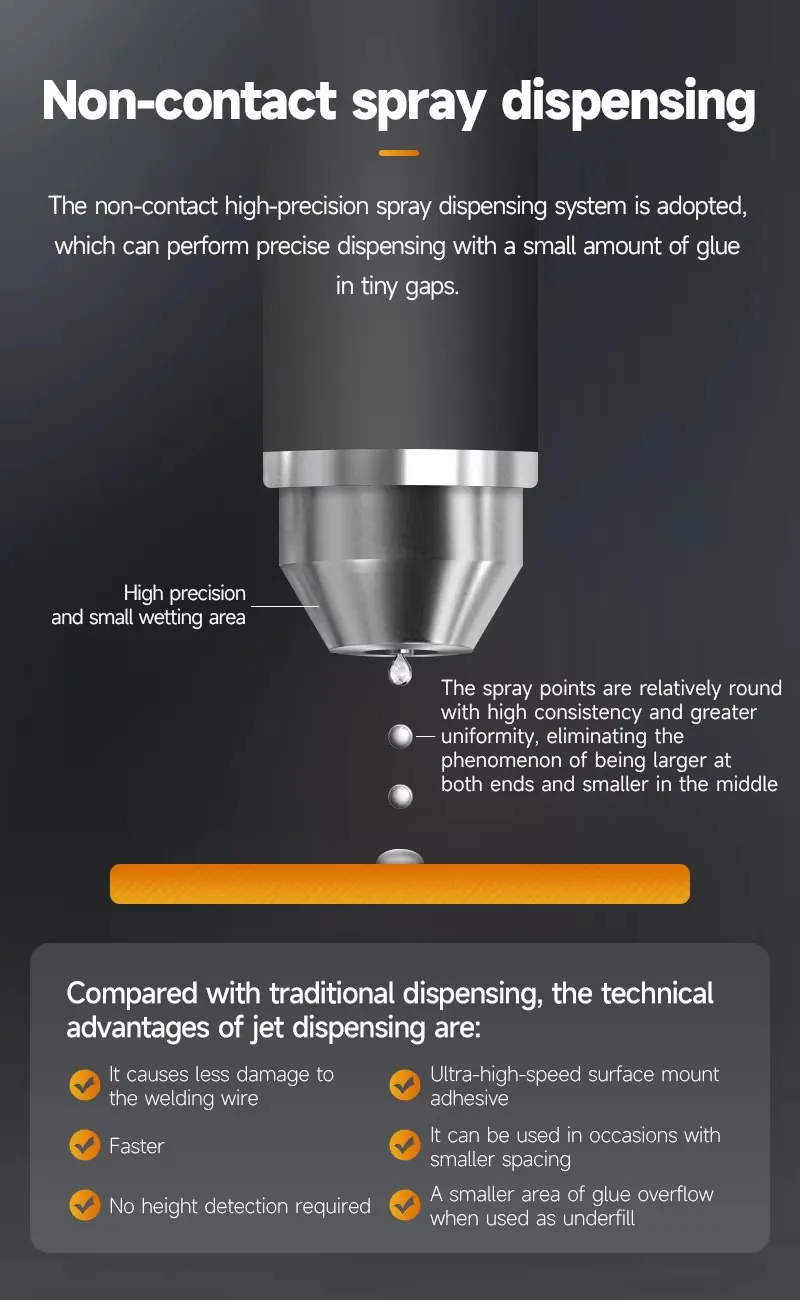

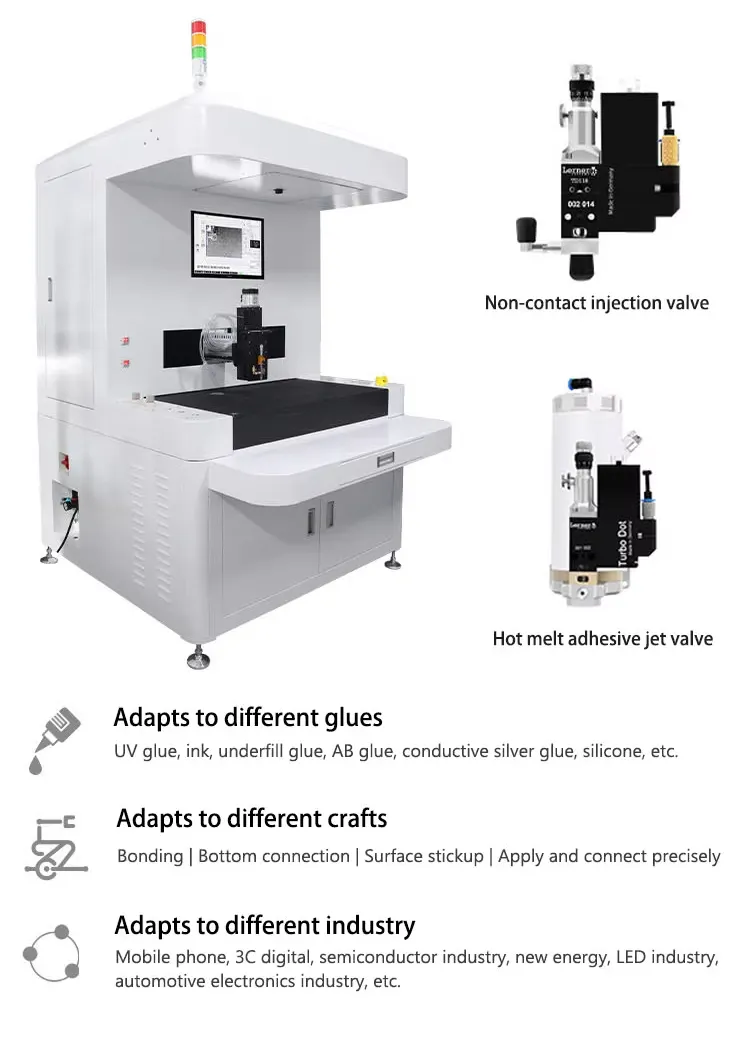

4.Can be equipped with: pneumatic injection valve or other valves.
5.Automatic constant temperature system of valve body to ensure consistent fluidity of coating.
6.Optional laser height detection system, which can automatically calibrate Z-axis height after workpiece deformation.
7.Optional workpiece heating system to enhance the fluidity of coating during bottom filling.
8.The glue dispenser machine optional precision weighing system, intelligent control and detection of glue dispensing amount to ensure consistency of glue dispensing.

Equipment Model	XHD-S400
External Dimensions	L 750 mm × W 750 mm × H 650 mm
Equipment Weight	70 kg
Control Mode	Industrial computer + motion control card
Operation Software	Control software + Windows system
Programming Method	Visual programming
Axis Configuration	Three-Axis,X / Y / Z
Axis Drive	Servo motor + ball screw
Dispensing Stroke	X 400 mm / Y 400 mm / Z 80 mm
Number of Glue Valves	1 (standard)
Maximum Moving Speed	800 mm/s
Repeat Accuracy	±0.02 mm
Material Capacity	30 cc
Valve Nozzle Cleaning Device	Optional
Equipment Alarm	Menu + sound and light alarm
Material Detection	Automatic detection
Power Supply	220 V / 50–60 Hz
Air Pressure Requirement	≥ 0.65 MPa
Safety Standard	CE
Total Power	2.5 kW
Standard Function	CCD visual positioning
Visual Alignment Speed	0.1s

three-axis-ccd-vision-glue-dispenser-machine

FAQs

We are a professional manufacturer with in-house R&D, production, assembly, and quality control for automatic glue dispenser machines.

Yes. We support both OEM and ODM services to meet different branding and application requirements.

Absolutely. We customize working size, CCD vision systems, dispensing valves, control software, and complete automation solutions based on your specific needs.

Standard machines usually require 2–4 weeks. Customized machines may take slightly longer depending on technical specifications.

Yes. We provide comprehensive operation, programming, and maintenance training through manuals, videos, and online technical support.

Simply contact us with your application details. Our team will respond quickly with a professional solution and quotation.

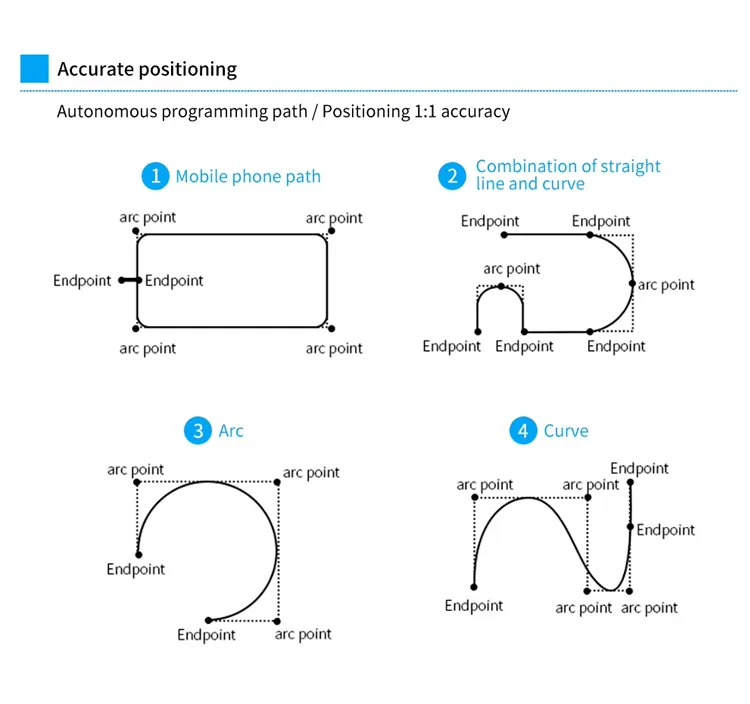

The machine supports dot dispensing, line dispensing, arc drawing, surface coating, circles, and complex custom dispensing paths.

It is widely used in electronics manufacturing, PCB assembly, semiconductor packaging, automotive parts, LCD modules, hardware parts, and other precision industries.

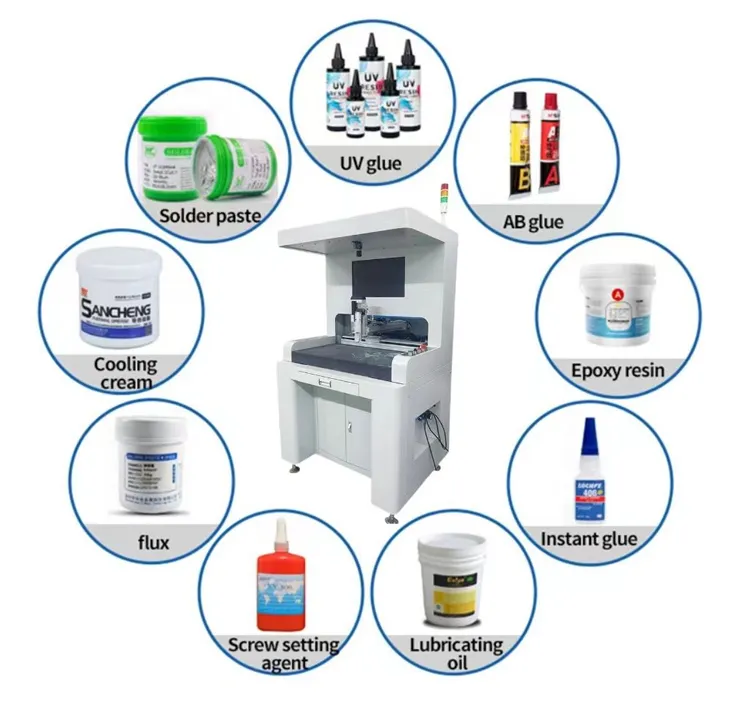

The glue dispensing machine supports epoxy, silicone, UV glue, hot melt glue, AB glue, and other industrial liquid materials.
