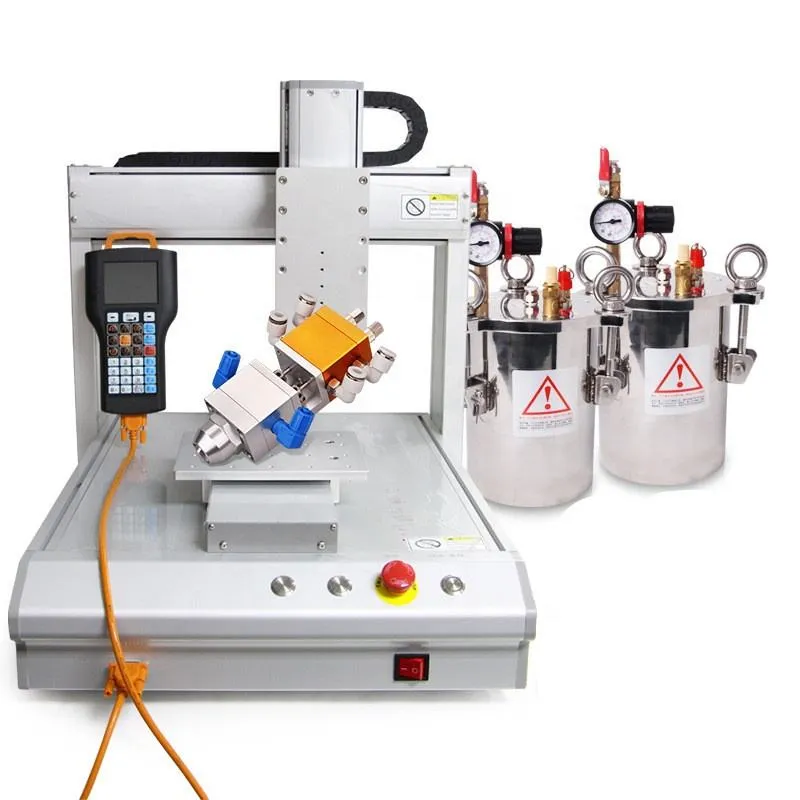

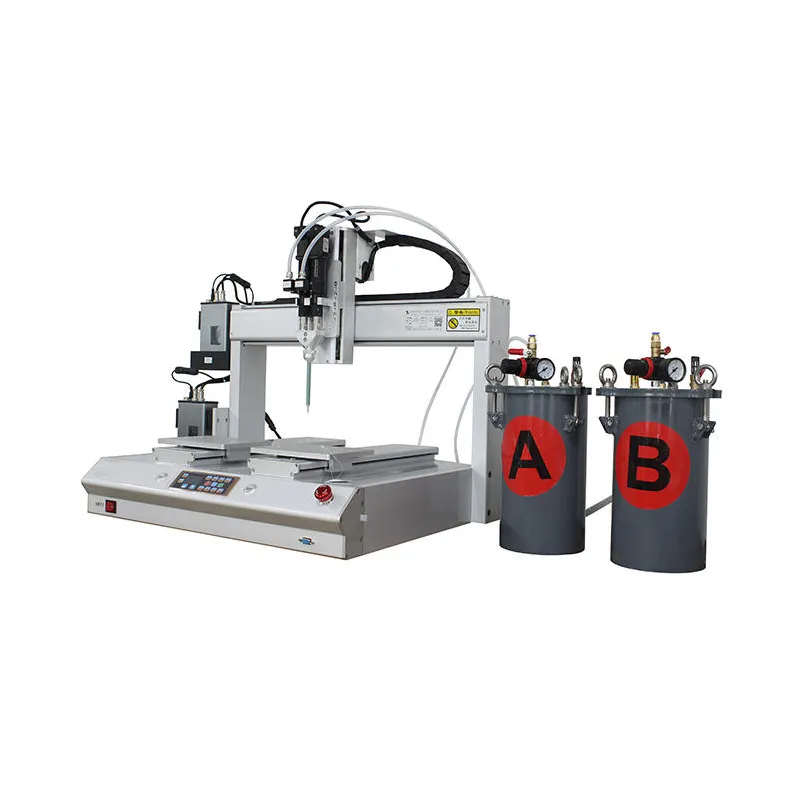

This desktop 3 axis automatic AB glue dispensing machine is a compact, high-precision XYZ dispensing system designed for accurate and stable dispensing of two-component (AB) adhesives.

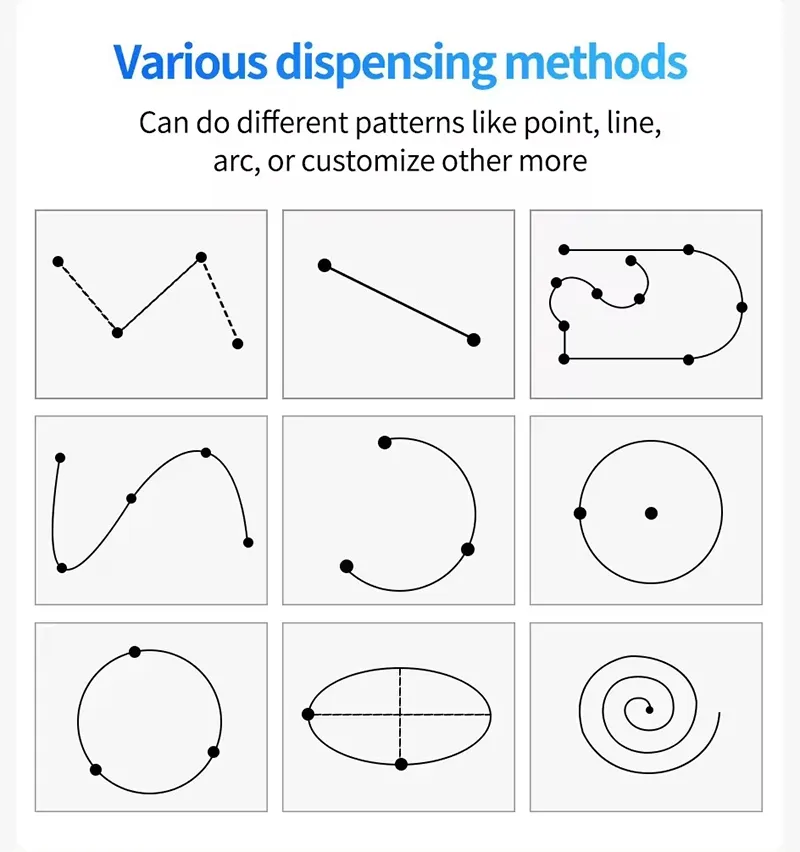

1, with drawing points, lines, arcs, circles, irregular curves, continuous tween input procedures and other functions and three-dimensional dispensing.
2, any point, line, surface, arc and other irregular curve continuous dispensing function.
3, high-speed, low noise speed DC brushless motor makes dispensing better.
4, static eliminator can eliminate static electricity within ±100V.
5, automatic compensation function of dispensing force, making the operation more convenient.
6, XY area array, translation rotation operation function, anti-use tray, suitable for different work positioning.
7. Support three-axis spatial linear interpolation, three-axis spatial circular interpolation, elliptical arc interpolation.
8, support computer graphics import function, can import PLT file, TCF file and G code file.
| Working range | 380(X) * 380(Y) * 100(Z) mm |
| Max payload | 7kg / 5kg |
| Max travel speed | 500 mm/sec (XY) / 100 mm/sec (Z) |

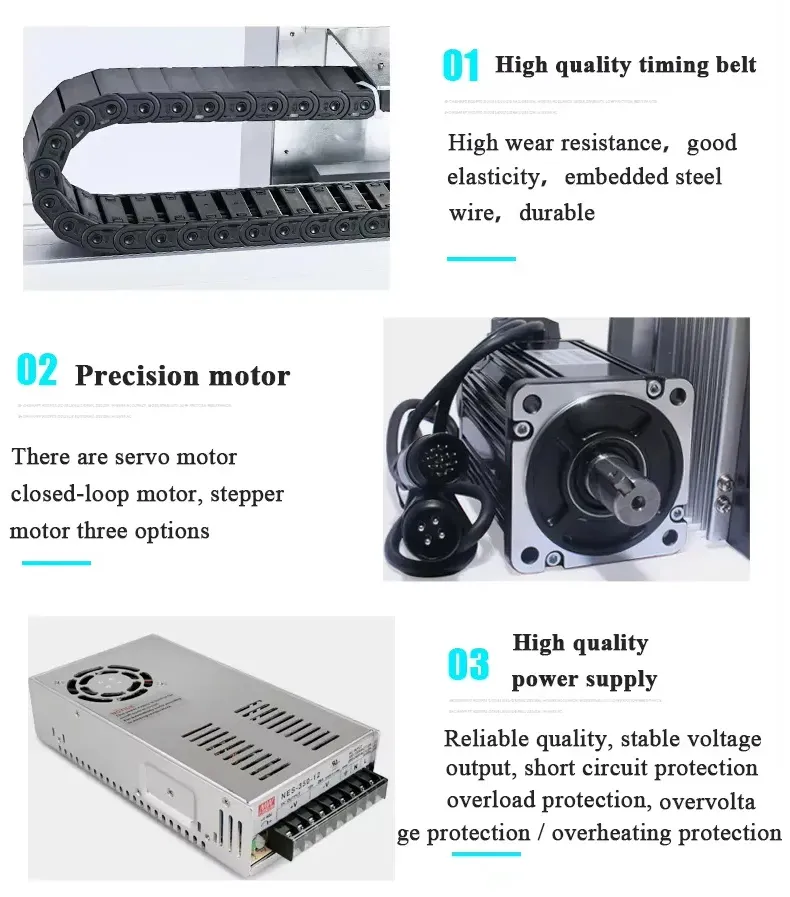

| Transfer method | Stepper motor, belt, precision rail |
| XYZ position accuracy | ±0.008 mm |
| Resolution | 0.01 mm |
| Memory storage | 999 program setup (each program store up to 65535 spots) |

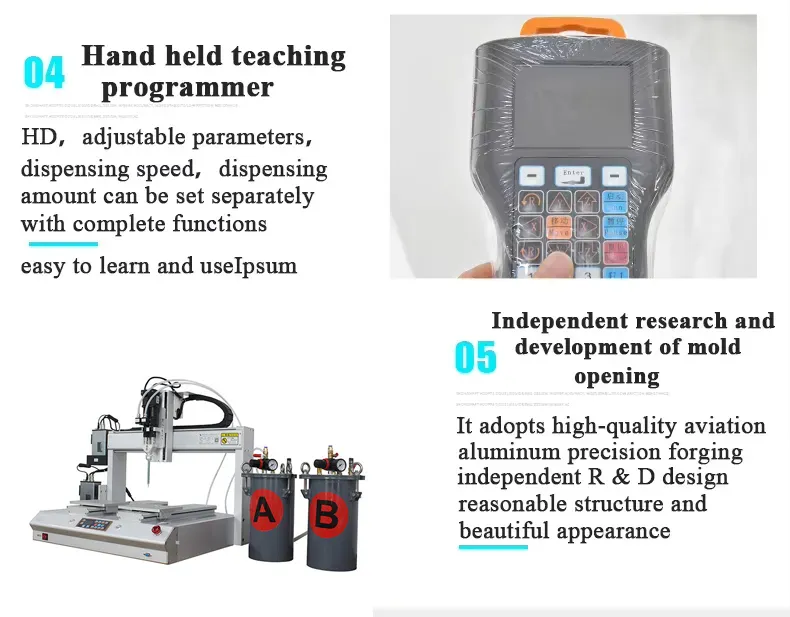

| Operating method | LCD, Teach pendant |
| Motor | Precision stepper motor |
| Movement patterns | 3 axis spot to spot, continuous line, arc |
| I/O | 1 input, 4 output (support expansion) |
| Power supply | AC220V 50/60Hz 0.5 kW |
| Working environment | Temperature 0-40℃, Humidity 20-90% |

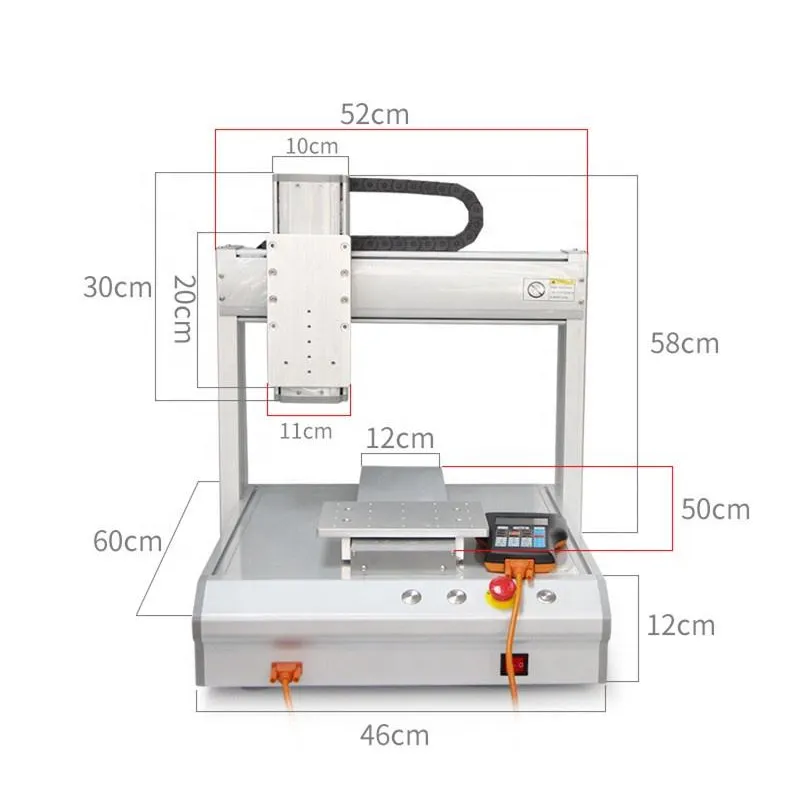

| Machine dimension | 520 * 583 * 645 mm |
| Weight | 75 kg |
This 3 Axis AB Glue Dispensing Machine is designed to handle a wide range of industrial adhesives and fluid materials with stable output and high precision.

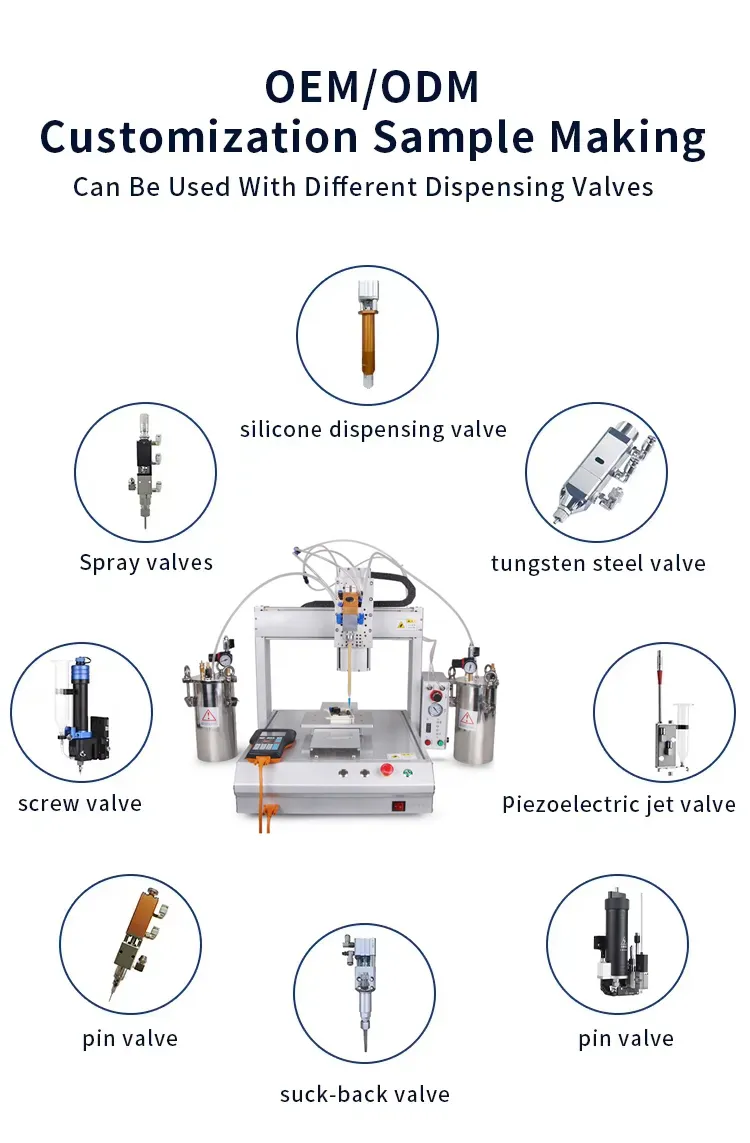

By selecting the appropriate dispensing valve, pump, and control parameters, the system can adapt to different viscosities and material characteristics.
Compatible materials include but are not limited to:
