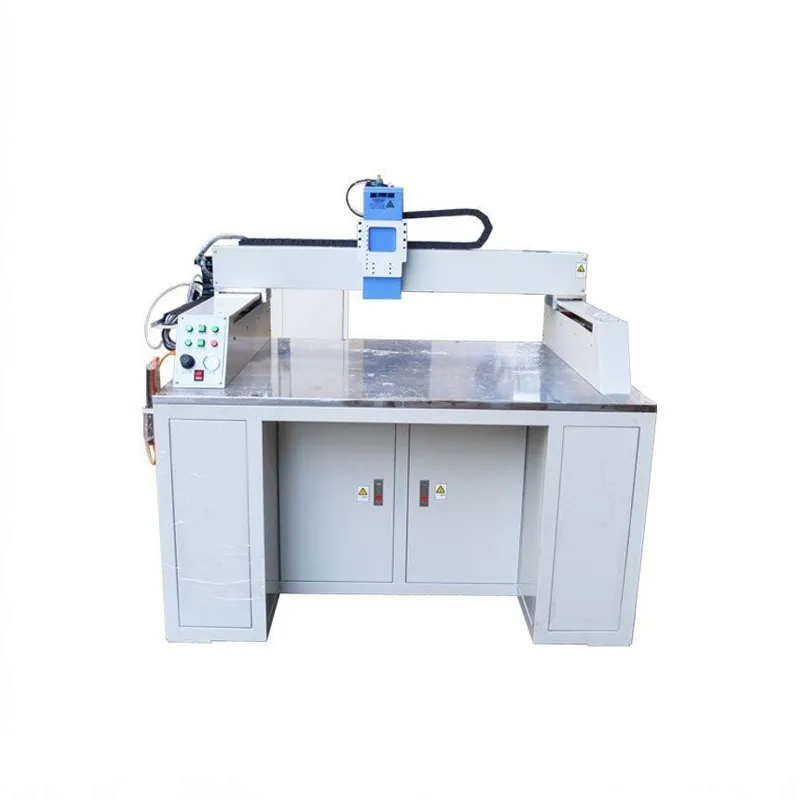

The Auto Glue Dispenser Machine features a rigid gantry structure that ensures high stability, repeatable accuracy, and smooth motion control. The three-axis system enables precise dispensing of dots, lines, arcs, and complex paths with consistent glue output. Designed for automated production, it offers fast response, high efficiency, and reduced material waste, making it ideal for precision assembly and continuous industrial applications.
| Working range (mm) | X300*Y300*Z120(mm),X1300*Y1000*Z120(mm) |
| Maximum load | X/Y: 8KG; Z: 5KG , Y/90KG;Z/10KG |
| Moving speed | X/Y: ≤ 500mm/s; Z: ≤ 200mm/s |
| Motion accuracy | ±0.01-0.03mm |
| Motor system | Servo motor + ball screw / closed loop motor + linear guide rail drive |
| Dispensing method | Syringe / high precision dispensing valve outlet |
| Control system | Motion control card |
| Panel control | Position adjustment, micro advance, program selection |
| Control mode | Point to point, line to arc compensation |
| Programming mode | Teaching pendant / PC optional |
| Delimitable graph | Line, garden, arc; Continuous scribing; Drop, glue |
| Motion interpolation function | Any 3D route |
| Input power | AC220V 50-60Hz |
| Operating temperature | 10-40℃ |
| Operating humidity | 20-90% no condensation |
| Dimension W*D*H (mm) | W460*D600*H540mm (reference only) |
| Weight | around 60kg,around 550kg |
Yes, we are a professional auto glue dispenser machine manufacturer with in-house R&D, production, assembly, and strict quality control.
Yes, we support OEM branding services and ODM technical customization according to customer requirements.
The auto glue dispenser machine is widely used for electronics assembly, PCB dispensing, automotive parts coating, LED packaging, battery sealing, and other precision adhesive applications.
The 3-axis auto glue dispenser machine supports epoxy, silicone, PU, UV glue, hot melt glue, and other industrial fluids with different viscosities.
The rigid gantry structure offers higher stability, better repeatability, and improved dispensing accuracy, especially for large-area and continuous dispensing applications.
Yes. The glue dispenser machine supports dots, lines, arcs, circles, and complex curves through flexible and programmable path control.
Yes. We provide sample testing, process evaluation, and video demonstrations to verify dispensing results before purchase.
If you have any questions or require a quote, please leave us a message. Our experts will respond within 24 hours and help you choose the right automation solution.
