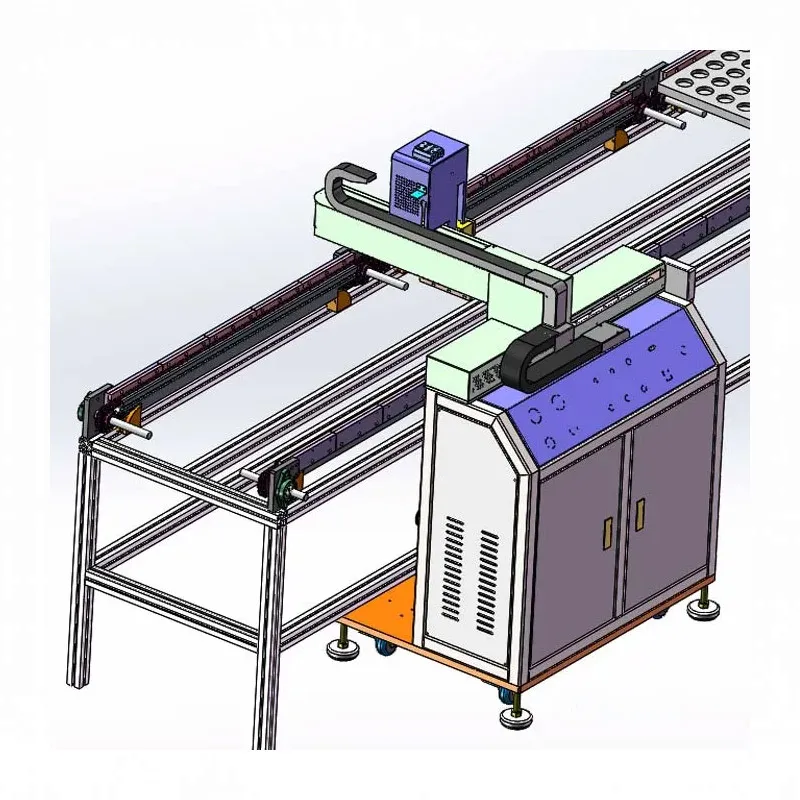

The 3 axis glue dispensing machine is designed to be placed directly alongside the customer's production line. A product stop mechanism is installed on the conveyor line. When the infrared sensing system detects the arrival of a product, it automatically activates the stop mechanism to hold the product in place and simultaneously starts the dispensing process. Once the dispensing is completed, the stop mechanism is automatically released, allowing the product to exit while the next product flows in seamlessly.
| Models | XHD-D3340 |
|---|---|
| Working area (X*Y*Z*R mm) | 400*400*120 |
| Moving speed (mm/s) | X/Y ≤ 1000mm/s; Z ≤ 500mm/s |
| Max loading bearing | Y/10kg; Z/5kg |
| Repeatability | ±0.03mm |
| Operation mode | Teach pendant or PC |
| Drive mode | SERVO motor + ball screw |
| Display Mode | LCD |
| Motion Interpolation Function | 3D spatial path interpolation in any direction |
| External Interface | IO |
| Full-voltage | AC220V 50/60HZ |
| Operating temperature | 10–40℃ |
| Operating humidity | 20–90% no condensation |
| Dimension (W*D*H mm) | 962*840*1017 |
| Weight | Around 180kg |
We are a professional automatic glue dispensing machine manufacturer with in-house design, production, and quality control.
Yes, we support both OEM and ODM customization based on your production requirements.

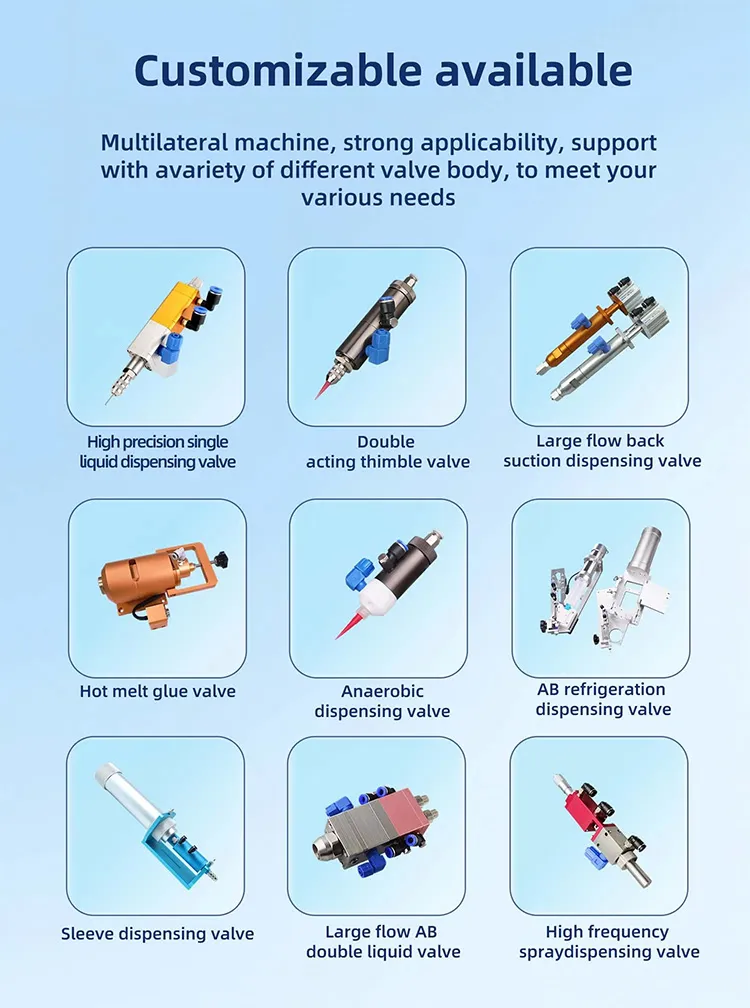

Yes, we can customize dispensing patterns, axes number, speed, volume, and fixtures according to your needs.
The glue dispensing machine is suitable for a wide range of industries that require precise and consistent adhesive application. It is commonly used in electronics for circuit boards, LED modules, and small components assembly; in automotive for parts sealing, sensor assembly, and trim attachment; in household appliances for product assembly and component bonding; in medical device manufacturing for precise glue application on instruments and equipment; and in general industrial assembly lines for toys, packaging, and consumer products.
Yes, the 3 Axis Glue Dispensing Machine is designed to work with a wide variety of adhesives to meet diverse production needs. It can handle UV-curable glue, epoxy resin, instant glue, silicone, and other industrial adhesives.
Yes, sample testing is available to ensure compatibility with your adhesive and product.
The machine provides a glue dispensing accuracy of ±0.03 mm.
Please contact us with your product specifications, production needs, and customization requirements for a detailed quotation.
