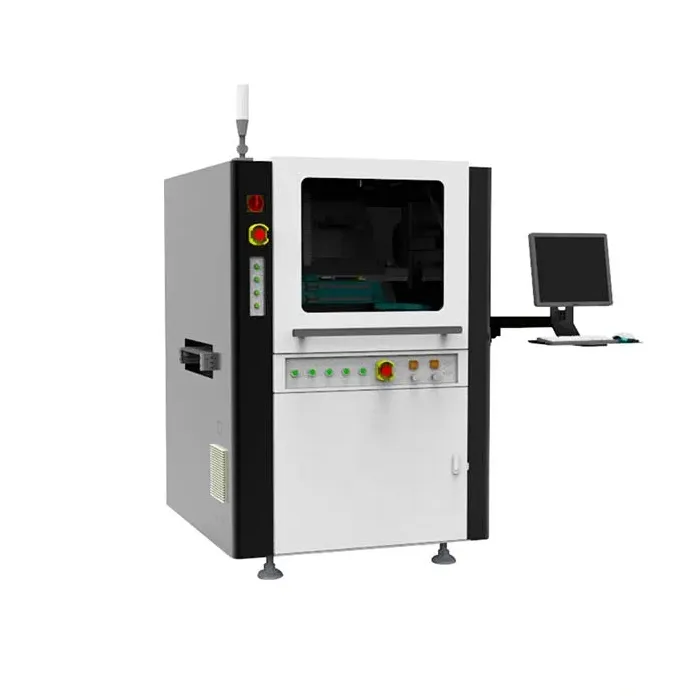

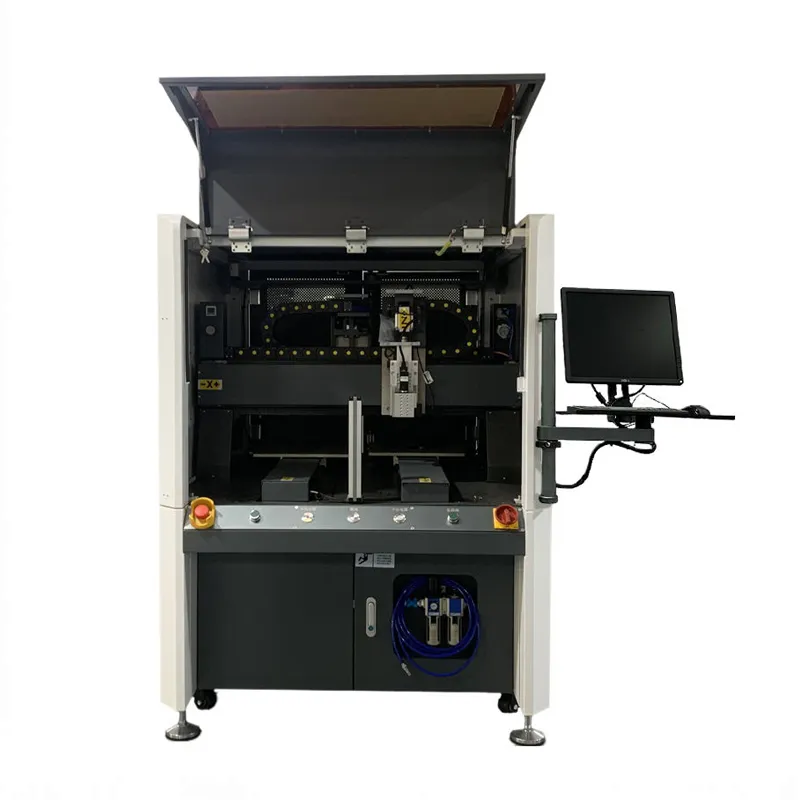

The full automatic glue dispenser machine is engineered for high-volume, high-accuracy SMT production. Its advanced CCD vision system ensures automatic positioning and real-time alignment correction, delivering micron-level dispensing precision (±0.01mm) even on complex and densely populated PCBs. Designed for full online operation, it integrates seamlessly with SMT production lines, reducing labor dependency and ensuring consistent, repeatable quality—making it an ideal solution for manufacturers seeking higher efficiency, precision, and production reliability.
| Models | XHD-G550 / XHD-G1200 |
|---|---|
| Working area | X550*Y800*Z110mm / X1200*Y800*Z110mm |
| Maximum load | XY: 30KG; Z: 8KG |
| Moving speed | X/Y: 1000mm/s; Z: ≤500mm/s |
| Screen showing | PC |
| Analytical accuracy | ±0.01mm |
| Positioning mode | CCD visual positioning system |
| Automatic width adjustment range of conveying line | 100–450mm Automatic width adjustment |
| Transmission mode | Anti static belt |
| Incoming induction | Optical fiber / photoelectric |
| Overall structure | Square steel / aluminum profile structure |
| Motor System | Servo motor / linear motor |
| Transmission module | Linear module / ball screw |
| Dispensing method | High frequency piezoelectric valve / screw |
| Motion interpolation function | Any route in 3D stereoscopic space is possible |
| Height measurement function | Laser displacement device |
| Automatic weighing function | Accuracy ± 0.01mg |
| Automatic cleaning function | are provided |
| Edit mode | PC |
| Operating temperature | 10–40°C |
| Operating humidity | 20–90% no condensation |
| External interface | IO+USB |
| Power / energy consumption | AC220V 50–60Hz 2500W |
| Overall dimension | Approximately L1200*W1500*H1660mm / W1950*L1600*H1660 (size for reference only, subject to actual product) |
| Weight | About 1000kg / 2000kg |
We are a professional manufacturer with in-house R&D, production, assembly, and quality control for auto glue dispenser equipment.
Yes. We provide both OEM and ODM solutions based on your branding, technical requirements, and application needs.
Yes. The auto glue dispenser machine is designed for online operation and can be seamlessly integrated with conveyors and upstream/downstream automation systems.
It supports a wide range of materials, including AB glue, epoxy, silicone, UV glue, RTV, PU, and other industrial adhesives.
Absolutely. The system supports dots, lines, arcs, circles, curves, and complex custom paths programmed through the control software.
Yes. We provide operation training, installation guidance, and technical support both online and on-site if required.
Standard machines typically require 15–25 working days. Customized solutions may take longer depending on specifications.
Each machine undergoes strict assembly inspection, functional testing, and trial operation before delivery.
We provide long-term technical support, spare parts supply, and remote troubleshooting services.
Yes. We can perform sample testing and dispensing evaluation based on your product and glue requirements.
You can contact us with your application details, product size, glue type, and production requirements for a customized solution and quotation.
