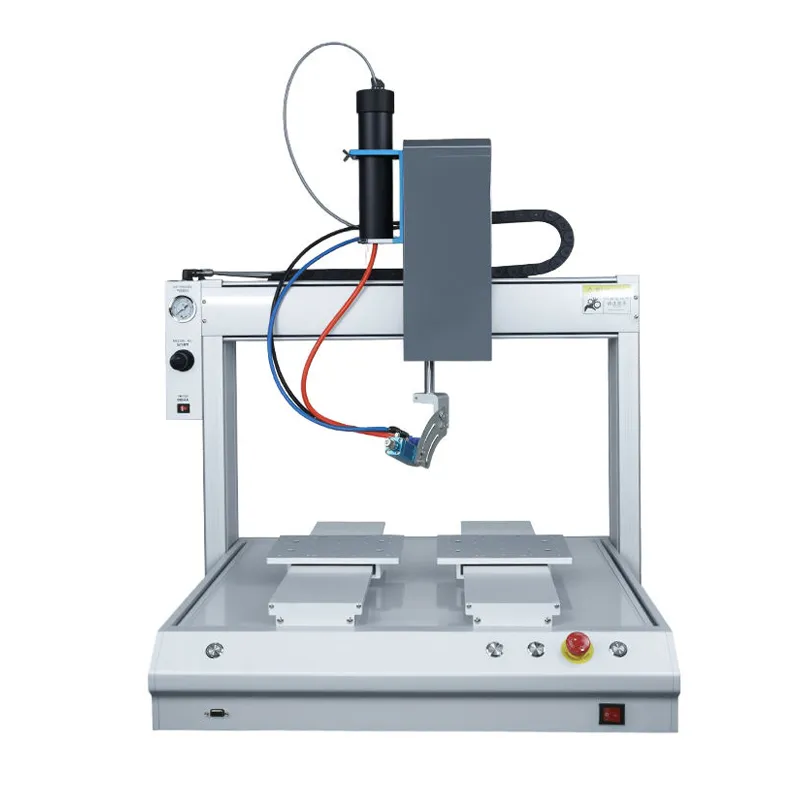

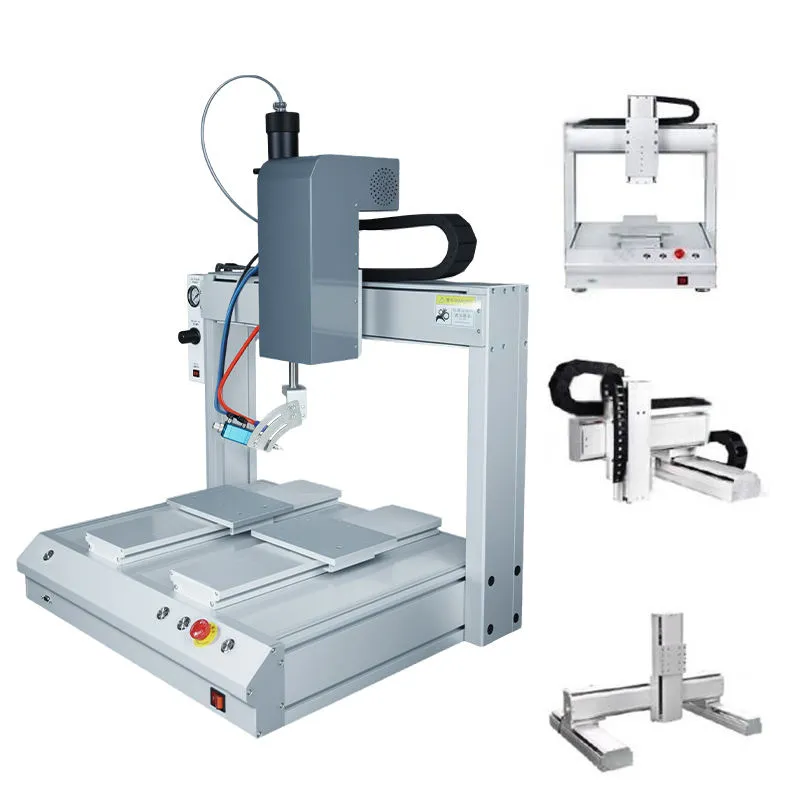

The Desktop Automatic Glue Dispensing Machine is designed for precise and stable adhesive dispensing in SMT and PCB assembly processes. The four-axis motion system with Z-axis rotation allows accurate dispensing on complex PCB layouts and multi-angle components. It runs alternately with a double platform, saving the time required for product loading and unloading while improving overall production efficiency. With flexible programming and stable dispensing performance, the machine is suitable for PCB component fixation, protection, and sealing in small to medium-scale automated production.
|
Model (Size customizable) |
XHD-331 | Power Supply |
AC110–220V 50–60Hz |
|
Work itinerary (Itinerary customizable) |
300 × 300 × 100 mm | Control system | Full-time / Constant Control, etc. |
| Programmable | Handheld Programmer / PC Import | Running speed | 1–800 mm/s |
| Repeatability (belt) | 0.2–0.5 mm | Machine weight | 66 kg |
| Repeatability (screw) | 0.02 mm | Transmission mode | Belts / Spindles |

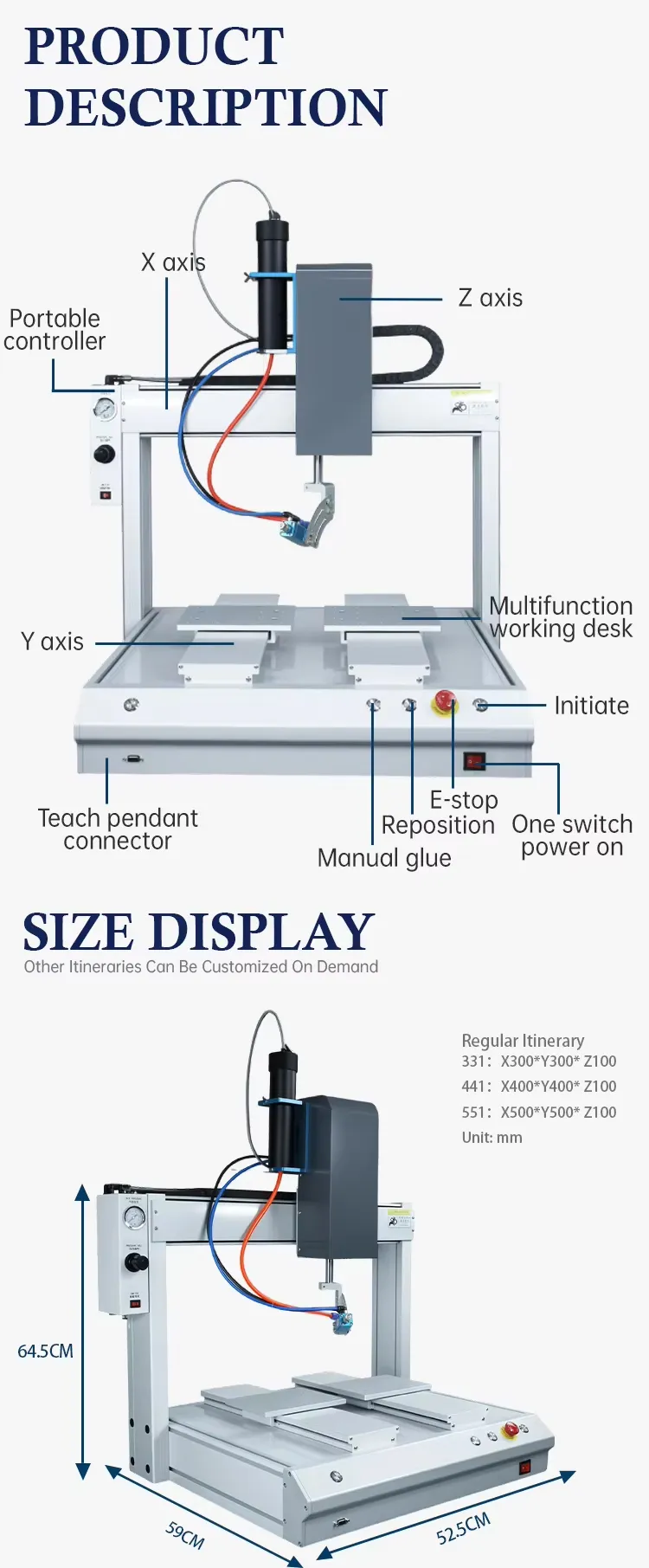

| Exterior dimensions | 520 × 580 × 650 mm | Maximum load (belt) |
Y Axis: 1–5 kg Z Axis: 2–3 kg |
| External interfaces | RS-232 / USB 2.0 | Maximum load (screw) |
Y Axis: 1–10 kg Z Axis: 2–4 kg |

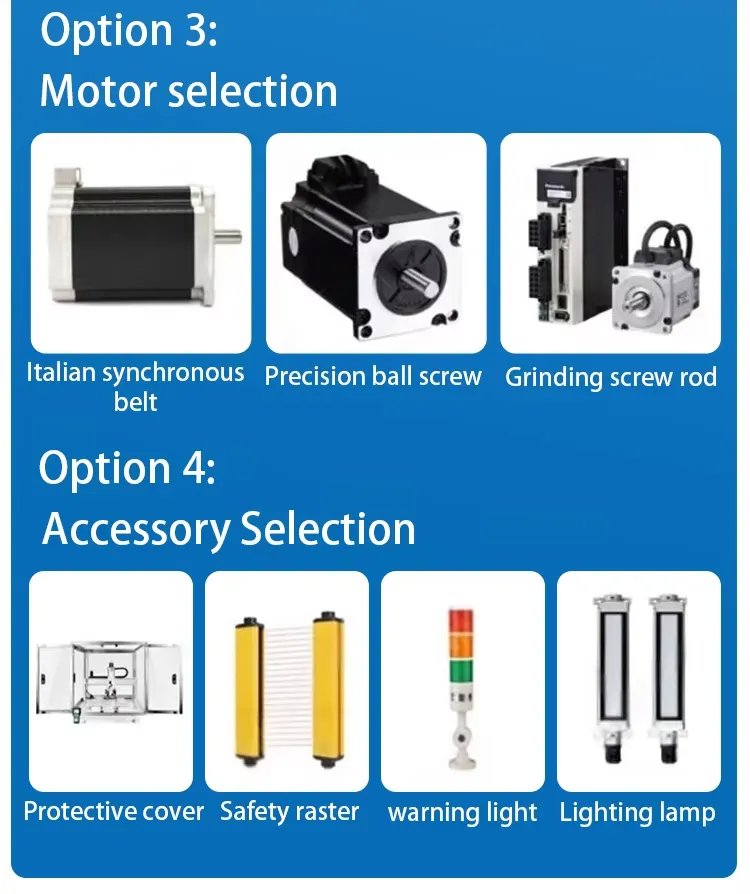

| Motor | Precision Stepper / Servo Motor | Programming | Teach-in Programming / Graphics Import |
| Supporting documentation | CAD / DXF | Program storage | 1000 Sets of Data / 5000 Points |
| Program recording mode | 999 Groups | Minimum dispensing volume | 0.01 ml |
We are a professional Automatic Glue Dispensing Machine manufacturer with in-house design, assembly, testing, and quality control.

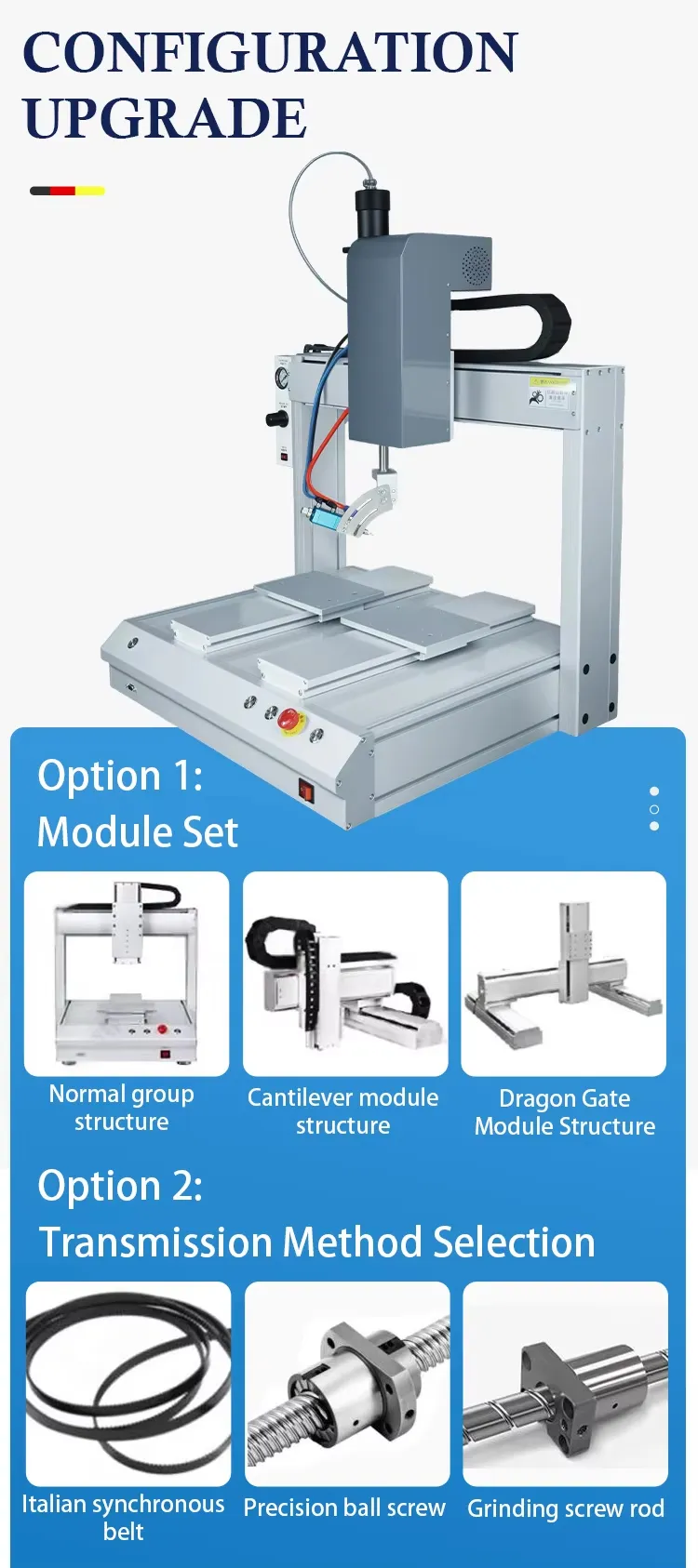

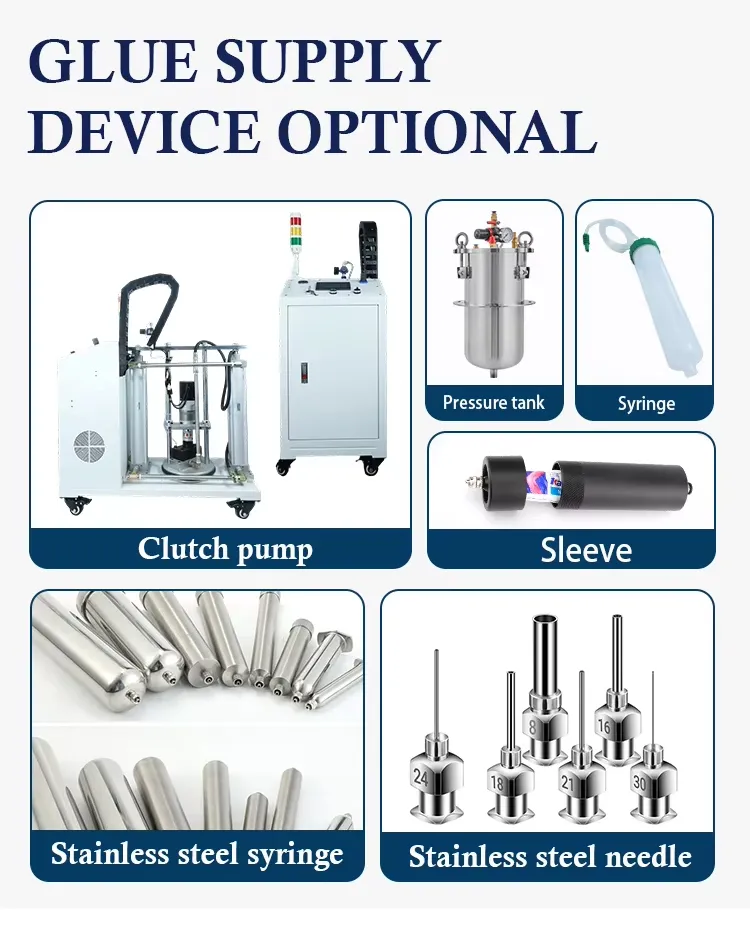

Yes, we customize machine structure, dispensing valves, fixtures, software functions, and glue supply systems.
Yes, we support both OEM and ODM services.
The SMT PCB Glue Dispensing Machine provides a dispensing positioning accuracy of ±0.02 mm.

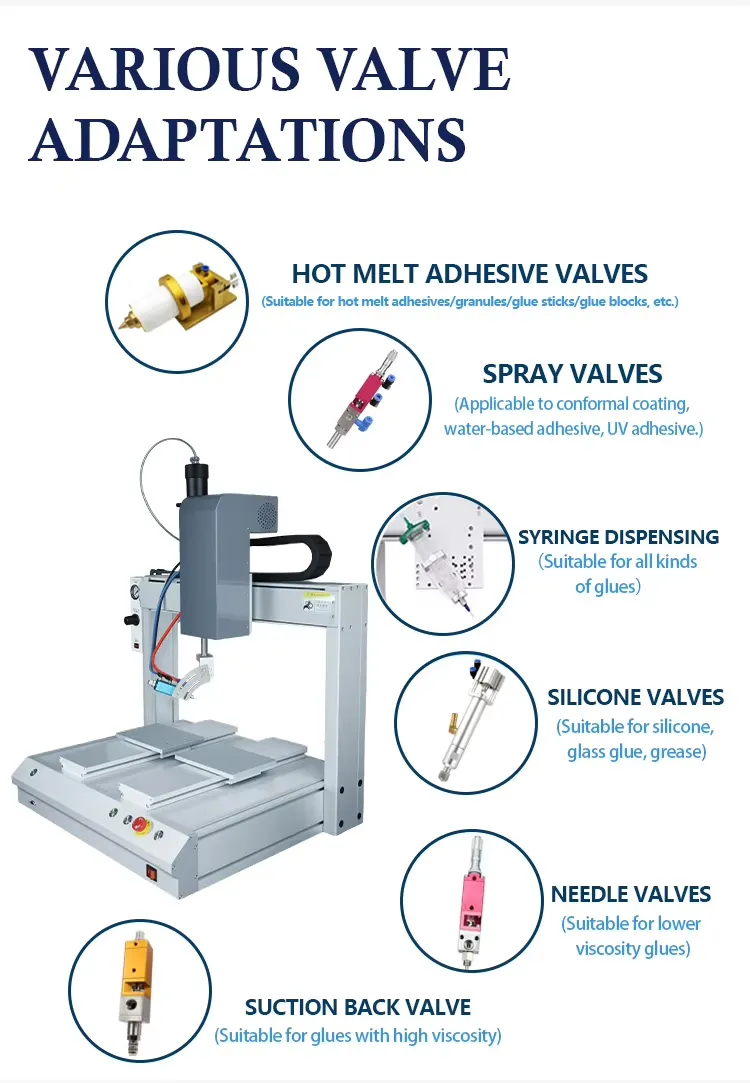

Yes, it can be equipped with various dispensing valves depending on glue type, viscosity, and application needs.
The 4 Axis Glue Dispensing Machine supports various adhesives such as epoxy, UV glue, silicone, AB glue, and other low- to medium-viscosity industrial adhesives.
Yes, our technical team can suggest suitable solutions based on your application.
Yes, installation guidance is provided through manuals, videos, and remote support.
The price of an SMT PCB glue dispensing machine depends on factors such as machine configuration, number of axes, dispensing system, and customization requirements. As a manufacturer, we provide different configuration options to match various production needs and budgets. For an accurate quotation, application details and technical requirements are recommended.
