Desktop 3 Axis Automatic Epoxy Resin Dispensing Machines

Send Inquiry Now

1.The automatic glue dispensing machines employ a 3-axis control system for precise adhesive placement, enabling accurate bead application, repetitive timed application, or component potting. Programming is easy via the touchscreen display, allowing for the rapid creation of even complex patterns.

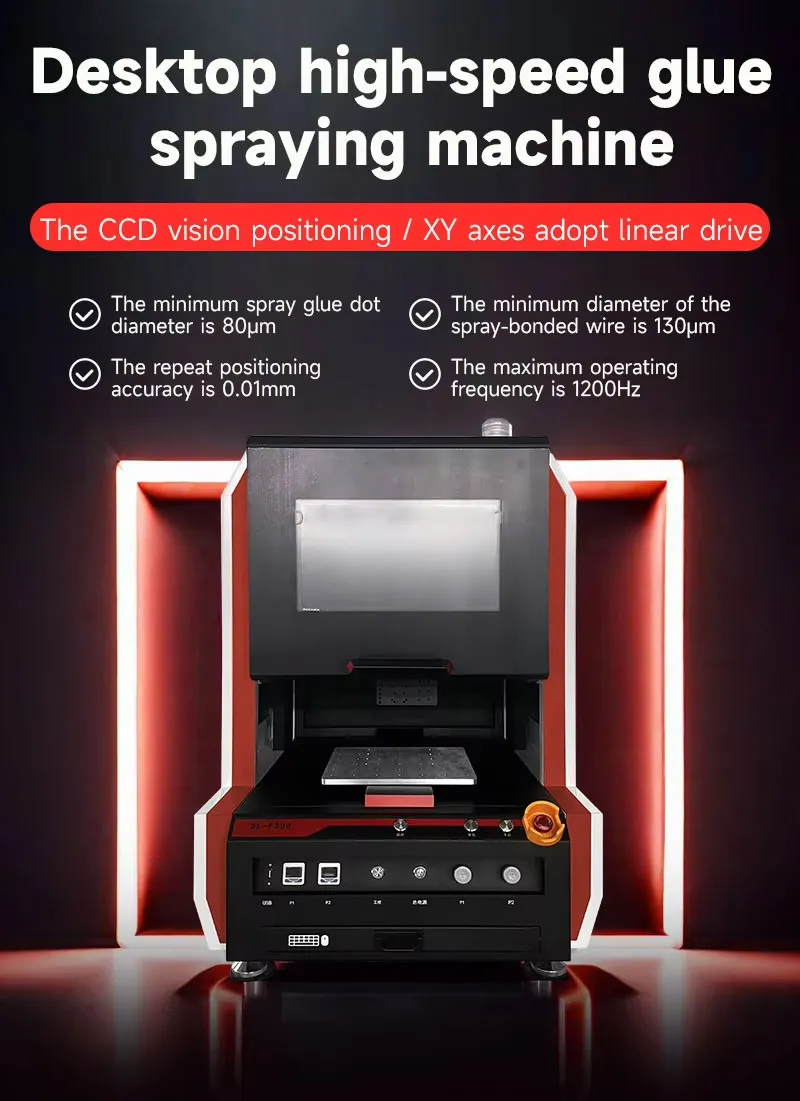

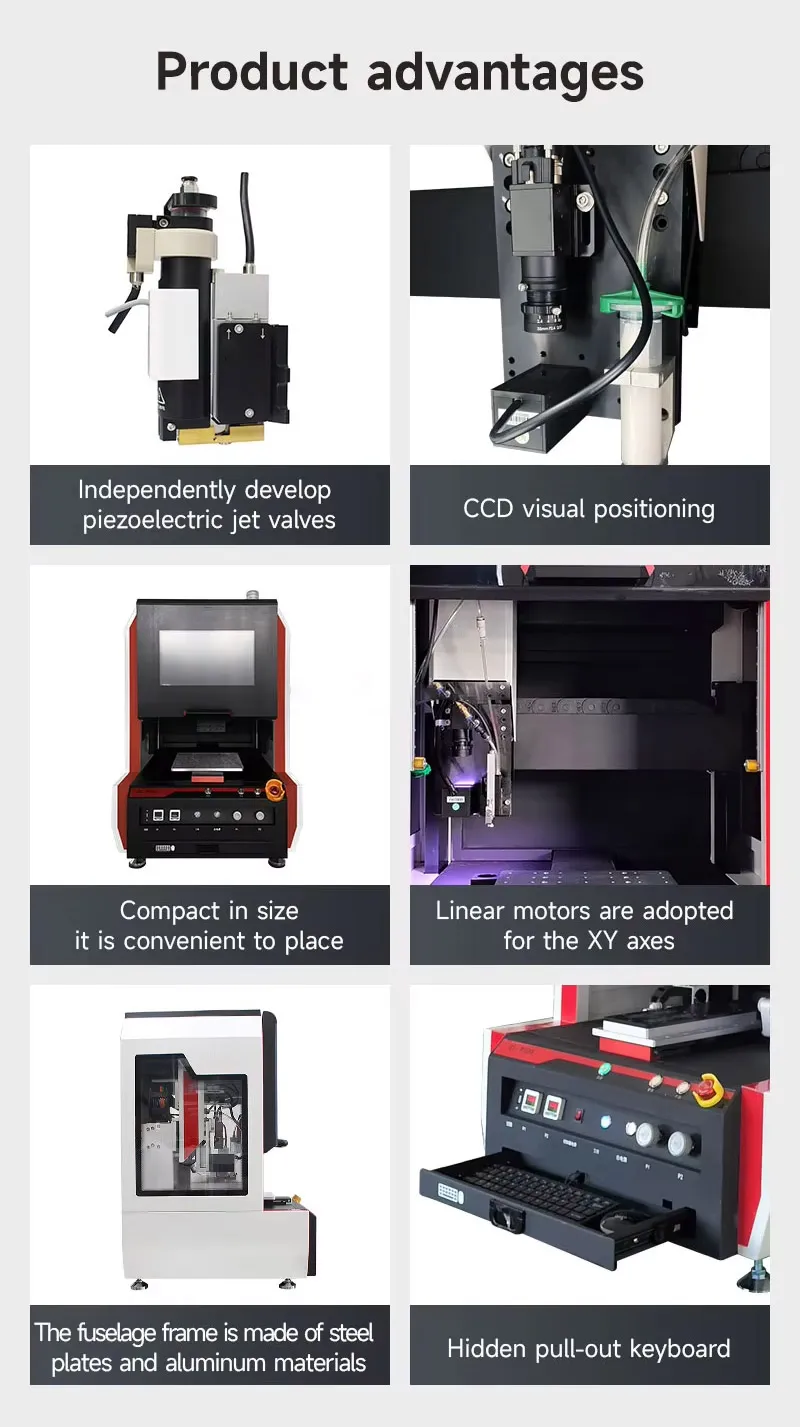

2.The epoxy resin dispensing machines equipped with CCD vision positioning to support automatic alignment and improve dispensing accuracy, especially for small components or products requiring precise glue placement.

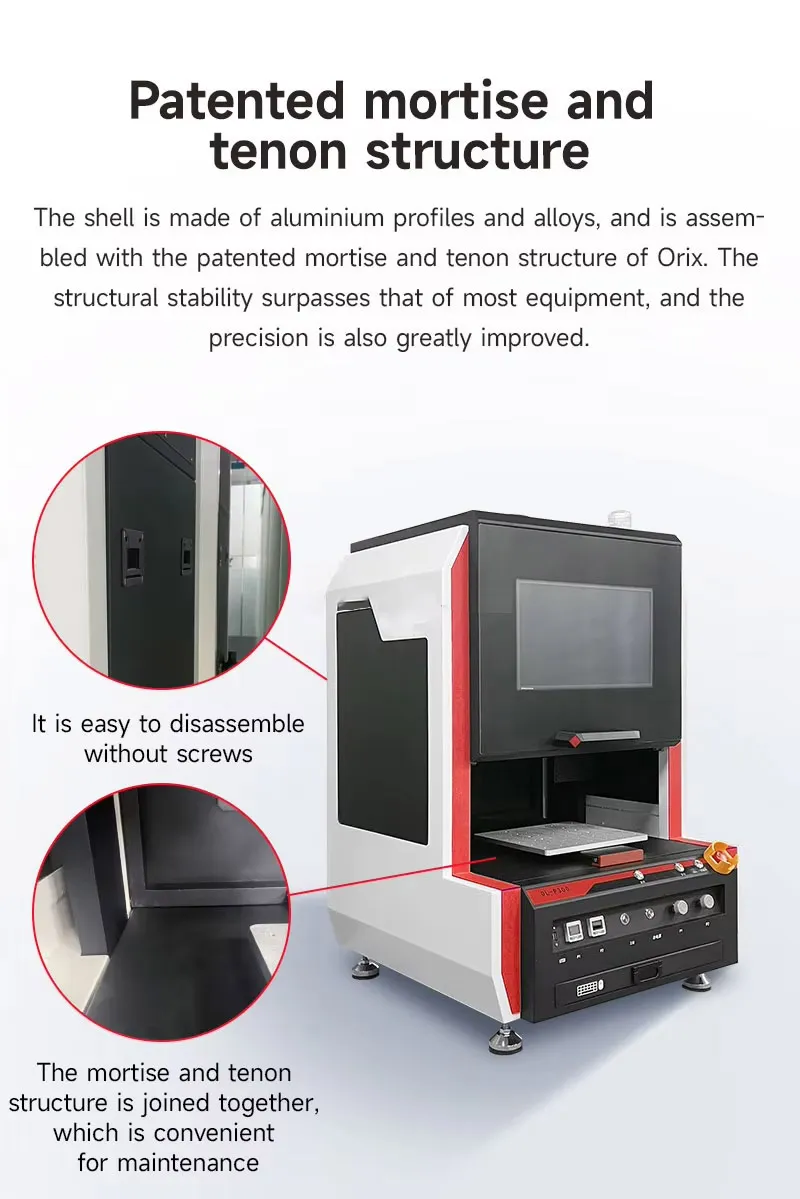

3.The shell is made of aluminium profiles and alloys,and is assem-bled with the patented mortise and tenons tructure of Orix.The structural stability surpasses that of most equipment,and the precision is also greatly improved.
4.It can draw points, lines, arc, and circle and, even irregular curve by consecutive interpolation and realize any 3D non planar trajectory path.
5.Simple and convenient operation, high speed and precise control.
6.High performance Linear structure platform with nice apprearance.
7.The glue dispensing machines will dispense most materials including adhesives, pastes, epoxy resin, gels, silicones, sealants, oils, grease, UV, AB glue, EMI conductive glue, silver glue, red glue, etc.

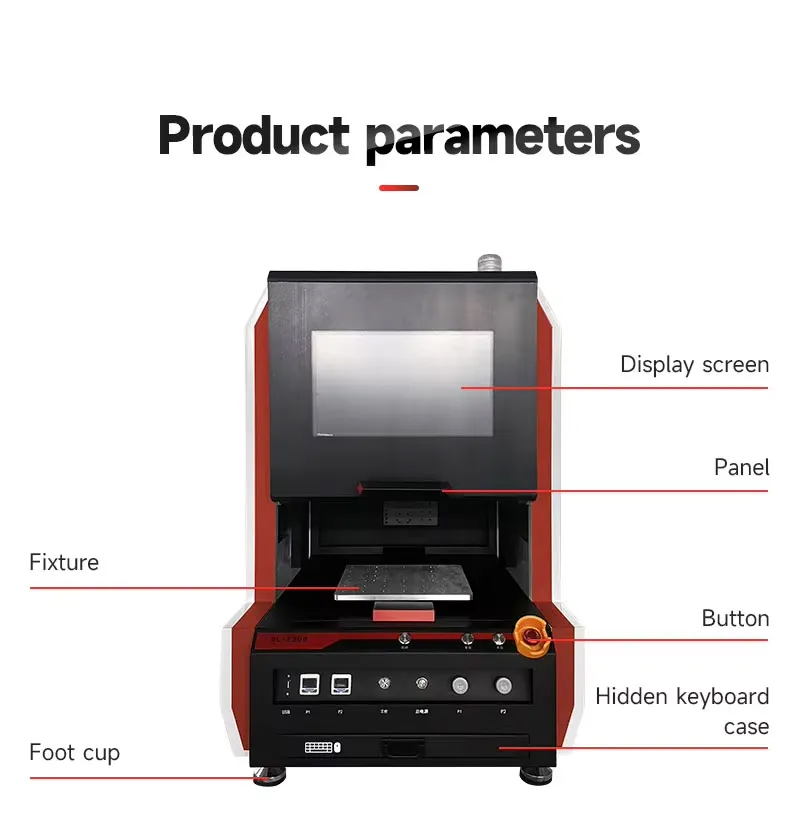

Paramenters:

Operating range	X-axis	300mm
	Y-axis	300mm
	Z-axis	60mm

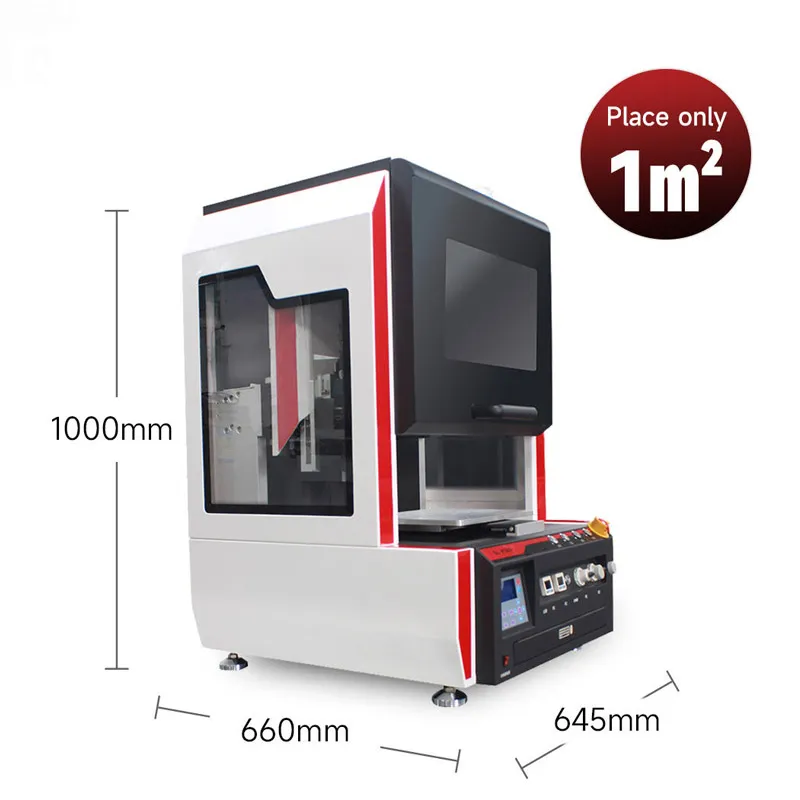

Machine size	L	645mm
	W	660mm
	H	1050mm
Machine weight		≈145KG
Maximum load		10KG
Maximum speed		1000mm/s
Maximum acceleration		1-1.5G
Dispensing area		300×300mm
Maximum working thickness		50mm
Repetition accuracy		±0.01mm (XY) ±0.02mm (Z)
Minimum diameter of spray adhesive		0.25mm (According to the performance of the glue)
Minimum wire diameter		0.3mm (According to the performance of the glue)
Pixel		1.3 million pixels
Drive mode		Linear motor (XY) + servo lead screw (Z)
Lens		35mm
Control system		OLKS independently develops the control system
Light source		Three-color light source
Feeding device		Syringe type: 5CC, 10CC, 30CC, 55CC, 75CC
Program storage capacity		It can store 99 sets of processing data, and a single processing file can occupy up to 3M of storage space (5,000 processing points).
File storage space		Handheld box 256M, offline card 32M, the maximum storage space occupied by a single processed file is 3M (100,000 processing points)
Main use		Bonding, focusing, coating, sealing, filling, droplet, linear/arc-shaped/circular and other gluing processes
Power supply		AC220V/50Hz

Desktop 3 Axis 30ml Automatic Epoxy Resin Dispensing Machines

3 Axis 30ml Automatic Epoxy Resin Dispensing Machines

Desktop 3 Axis Automatic Epoxy Resin Dispensing Machines

3 Axis Automatic Epoxy Resin Dispensing Machines

FAQs

We are a professional automatic glue dispensing machine manufacturer with 20 years of industry experience.

Yes, we provide customized dispensing solutions based on product requirements and production processes.

Yes, each dispensing machine undergoes strict testing before shipment.

Yes, sample testing is available to verify dispensing performance before purchase.

Prices vary depending on the type of machine, configuration, and level of automation. Basic desktop machines range from $1,000 to $3,000, while fully automated large floor-standing machines can cost between $10,000 and over $30,000.

The glue dispensing machines are widely used across various industries, including the electro-acoustic industry, inductance industry, communications, computers and digital products, switches and connectors, optics, mechanical hardware, battery boxes, and the LED industry, for precise assembly and dispensing processes.

The epoxy resin dispensing machines can handle a wide range of materials, including adhesives, pastes, gels, silicones, sealants, oils, grease, UV glue, AB glue, EMI conductive glue, silver glue, red glue, and many other liquid or semi-liquid substances.
