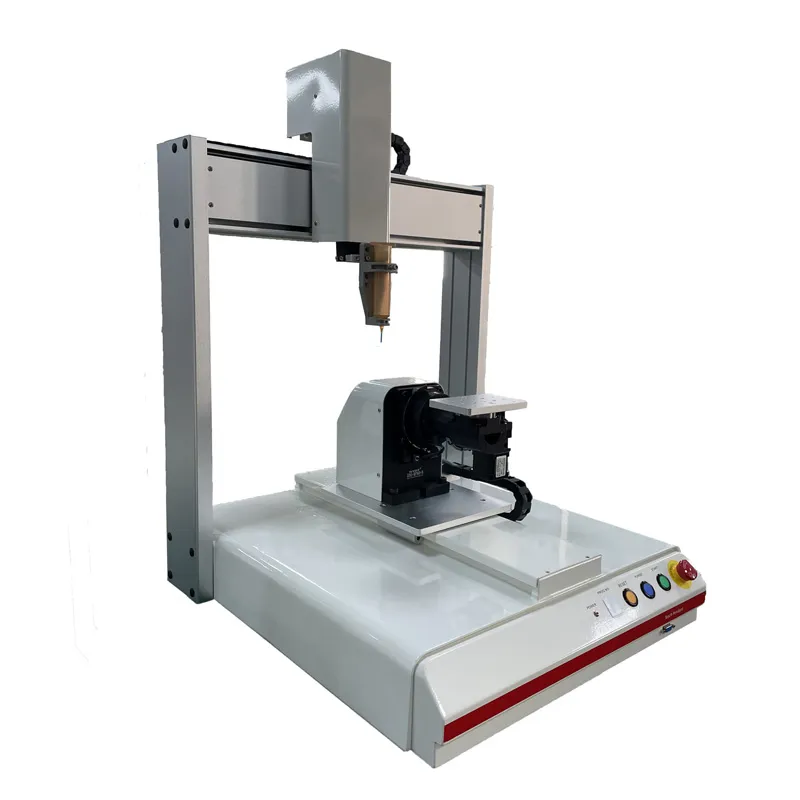

The desktop CNC glue dispenser machine is designed for applications that require precise dispensing on complex and multi-angle surfaces. The machine are 5axis, R axis can rotate 360 degrees, the system With the interpolation function enables continuous dispensing on circular, curved, and irregular paths without repositioning the workpiece.The glue dispenser machine supports multiple dispensing patterns such as dots, lines, arcs, and full-circle trajectories, making it suitable for electronic components, PCB assembly, sensor sealing, and small to medium batch production where consistency and process control are required.And can be operated producers by teach pendant,the machine is quite easy to operate, one can learn and make program is a few minutes.
| 4X/Y/Z/R Working Area (mm) | 400 / 400 / 100 / 360° |
| Load Worktable | 11kg / 2.0kg |
| Speed PTP X&Y/Z (mm/sec) | 0.1 ~ 500 |
| Repeatability | ±0.02mm / axis |
| Resolution | 0.01mm / axis |
| Data Memory | 100 programs, 4000 points/program |
| Data Storage | CF card |
| Program Display | Teach pendant LCD |
| Operation System | PTP (Point to Point) & CP (Continuous Path) |
| Interpolation Function | 5 axis |
| Program Method | Teach pendant |
| External Interface | RS232 |
| I/O Signals | 8 inputs / 8 outputs |
| Power Supply | AC 90 ~ 260V 320W |
| Operating Temperature | 0 ~ 40°C |
We are a professional CNC glue dispenser manufacturer with in-house design, assembly, testing, and quality control.
Yes, we provide both OEM and ODM services based on customer specifications and applications.

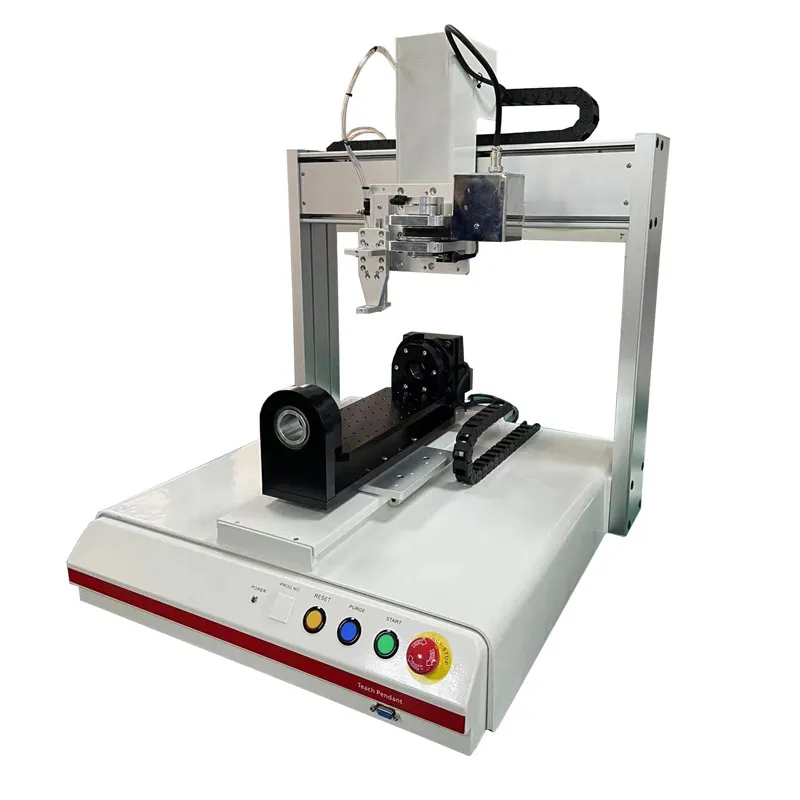

The additional R axis allows 360° rotation, enabling multi-angle dispensing and complex path control.

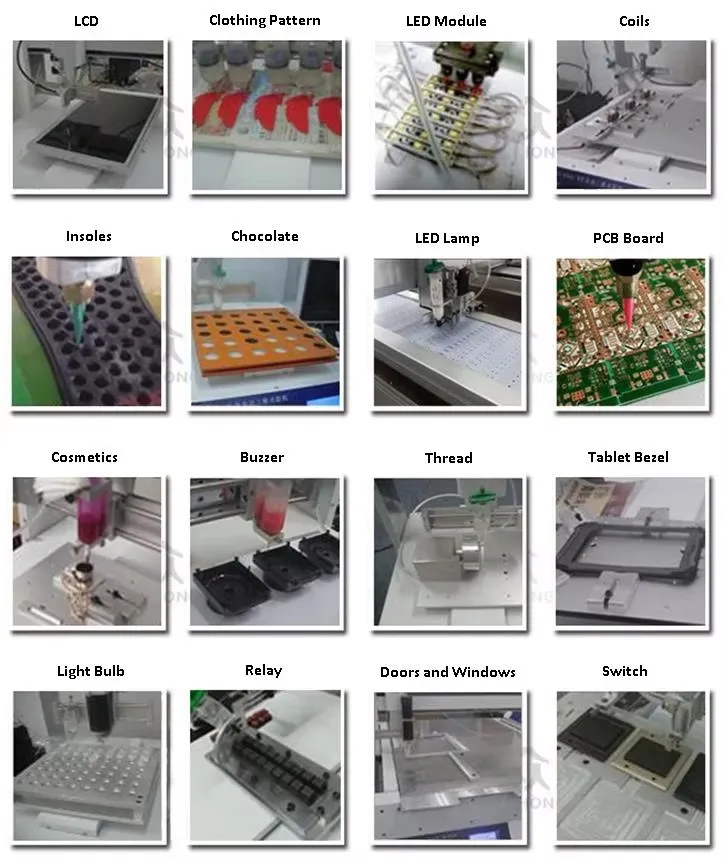

The CNC adhesive dispenser is suitable for electronics assembly, PCB dispensing, small hardware parts, sensors, and precision components.
The CNC glue dispenser machine supports epoxy, silicone, UV glue, AB glue, hot melt adhesive, and other fluid materials.

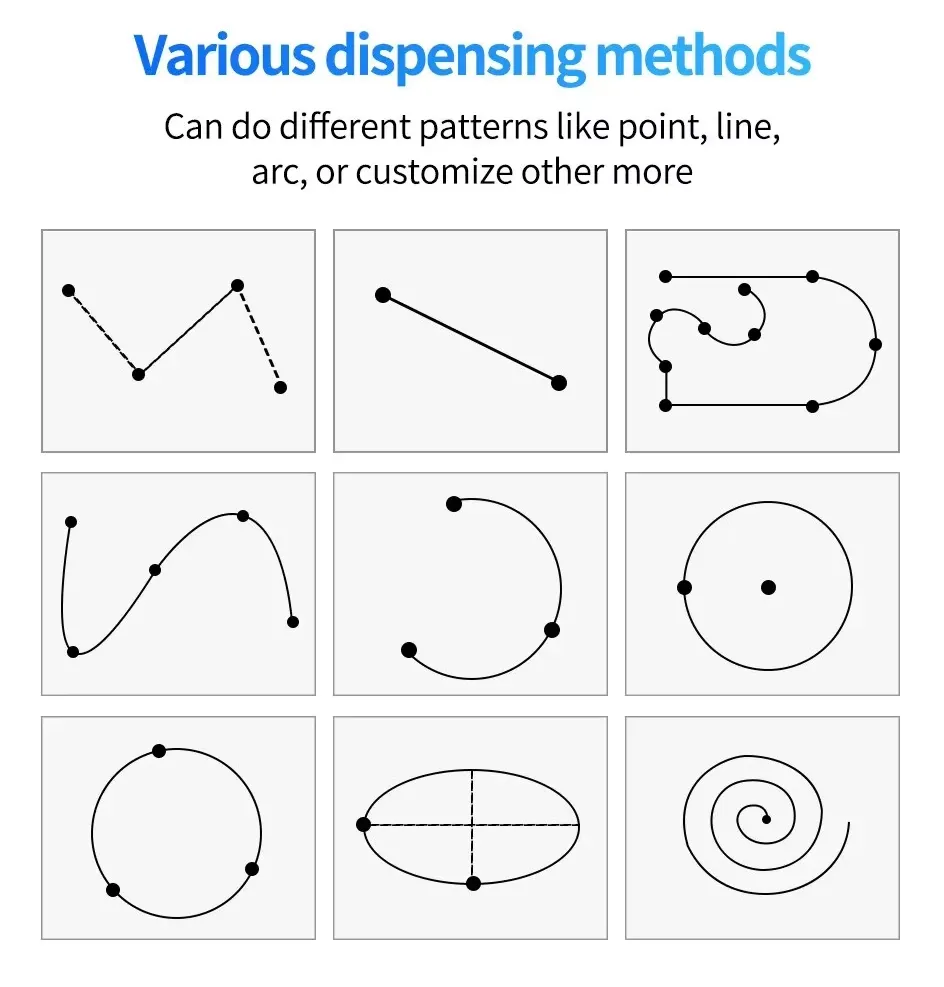

Yes, it supports dots, lines, arcs, circles, curves, and multi-segment continuous paths.
Standard machines are usually delivered within 7–15 working days; customized models may require more time.
The machine typically comes with a 12-month warranty for non-consumable parts.
The price depends on the machine configuration, number of axes, dispensing heads, and any customization required. Please provide your application details so we can offer an accurate quotation.
