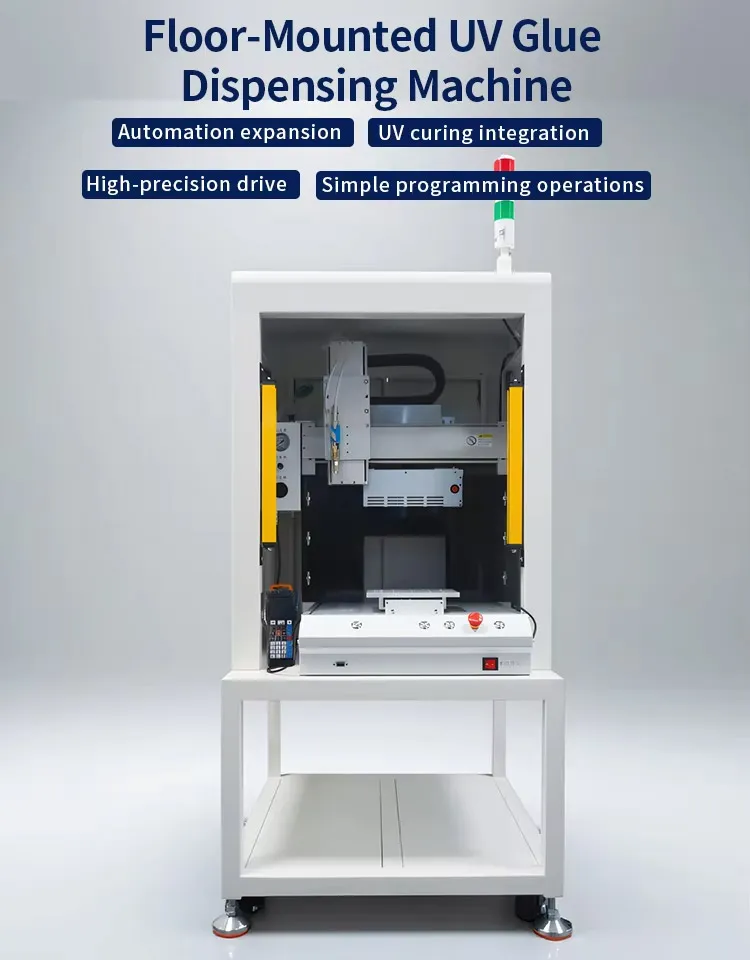

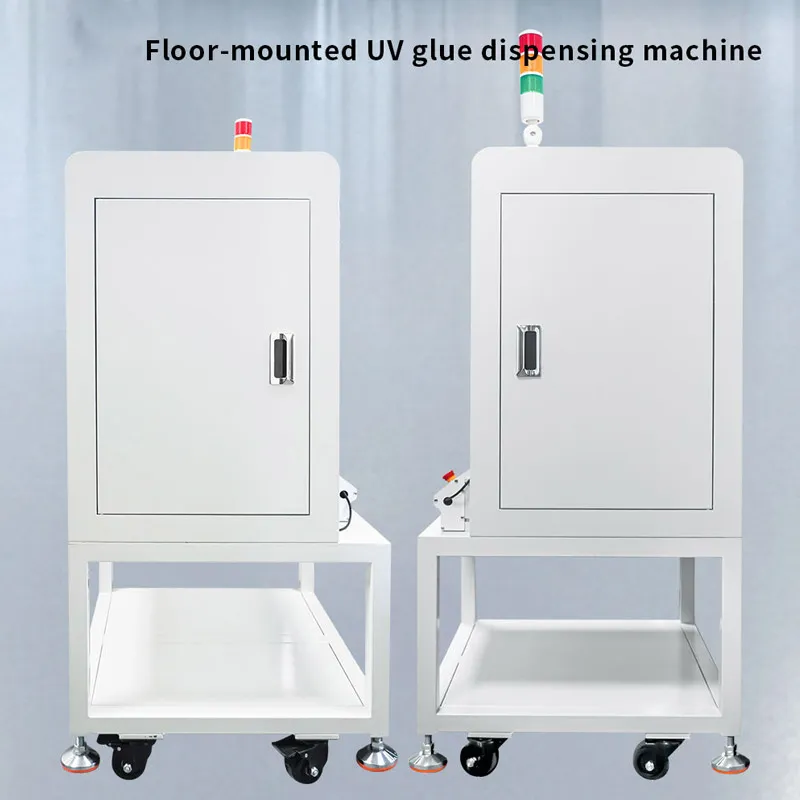

UV Glue Dispenser

Features

1.The glue dispensing machine is designed for precise and efficient dispensing of UV glue;
2.Can set glue size, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping;

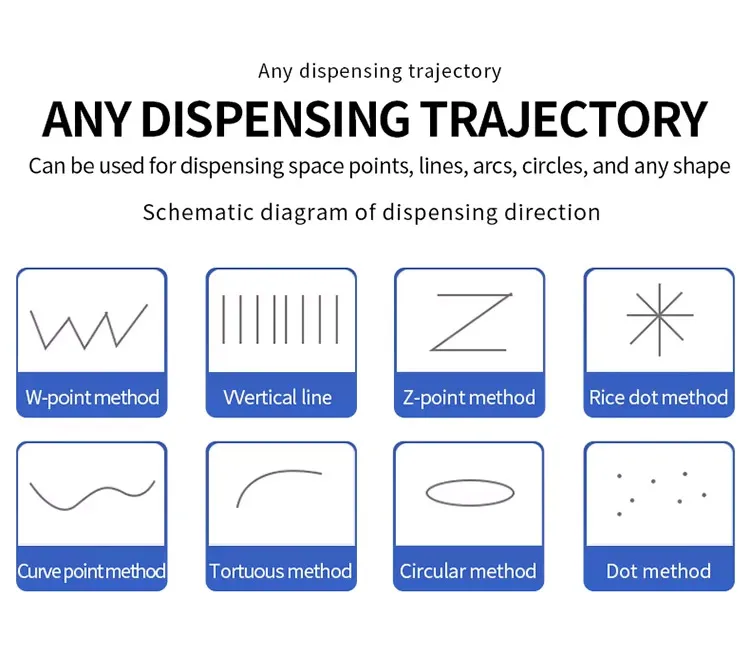

3.Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage;

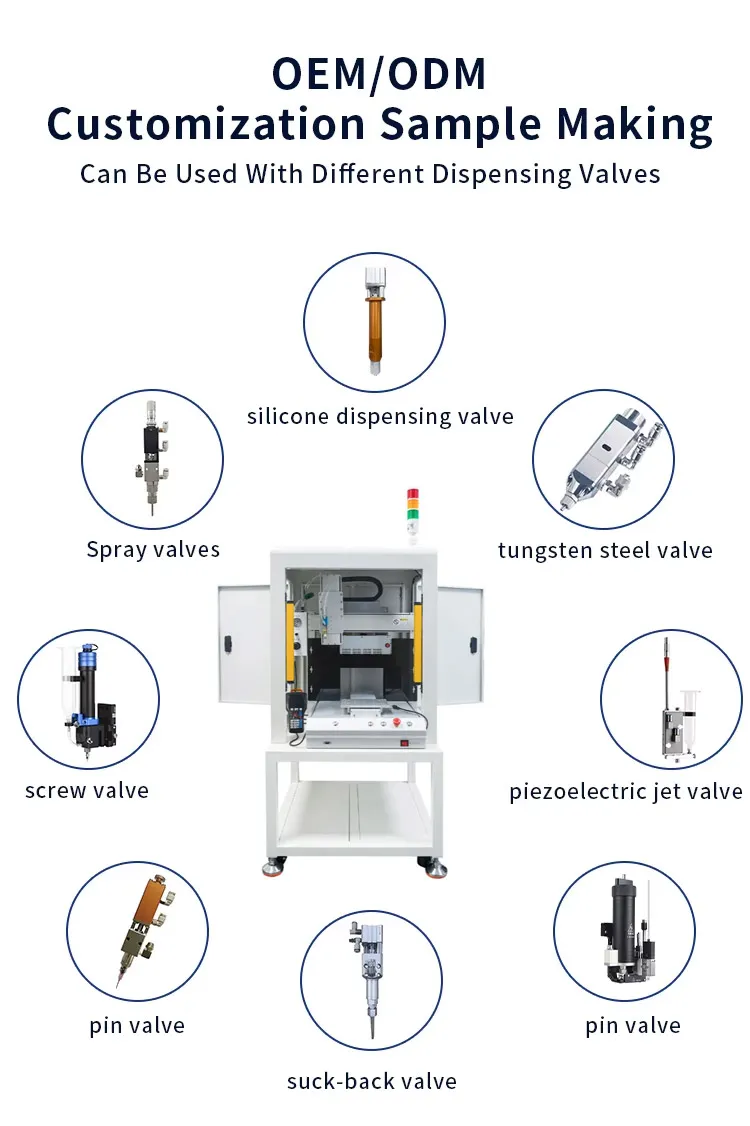

4.The UV glue dispenser suitable for different occations ,A variety of dispensing needles,syringes, dispensing ,valves and controllers,Meet different requirement;
5.Simply replace the template and accessories to be compatible with other products;
6.Dual guide rail structure, wear-resistant and long life;
7.Operation with handheld LCD panel teach box, which is easy to program and learn;
8.English panel, easy operation.
This glue dispenser is suitable for high-efficiency, precise dispensing across a wide range of applications. It can handle electronics and components such as sensors, relays, power adapters, circuit boards, mobile phone and laptop batteries, speakers, ICs, and optical devices. It is also suitable for household appliances, automotive parts, mechanical seals, and other products requiring glue bonding, coating, sealing, or quantitative liquid filling.

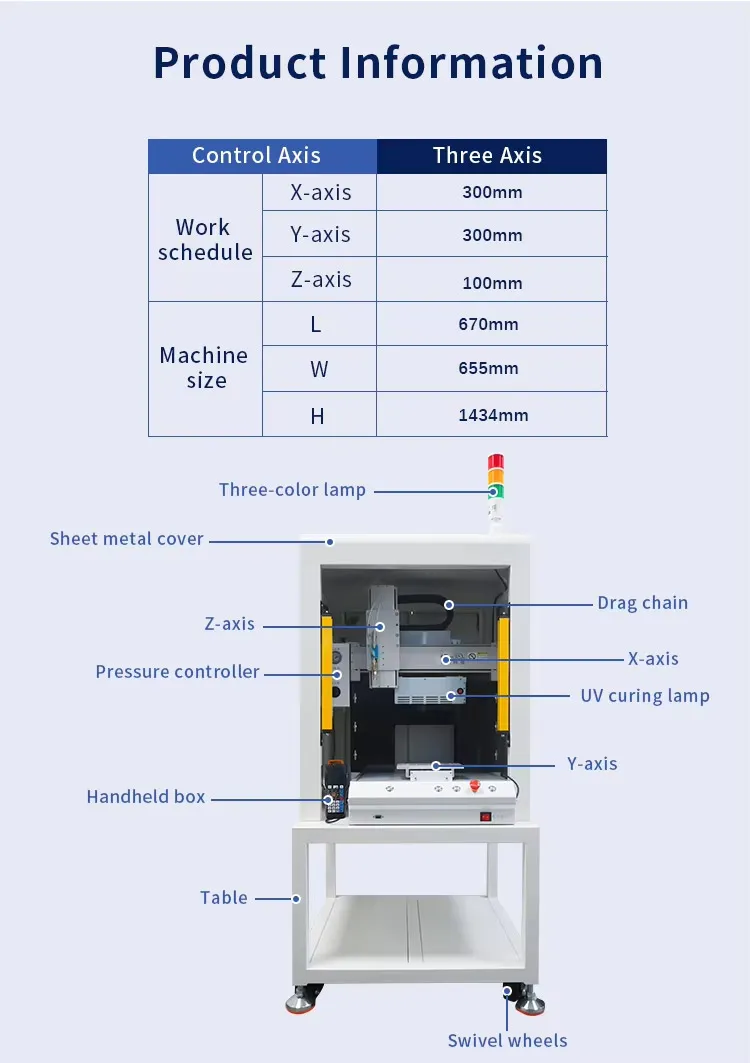

Parameters

Model number	XHD-FUV331

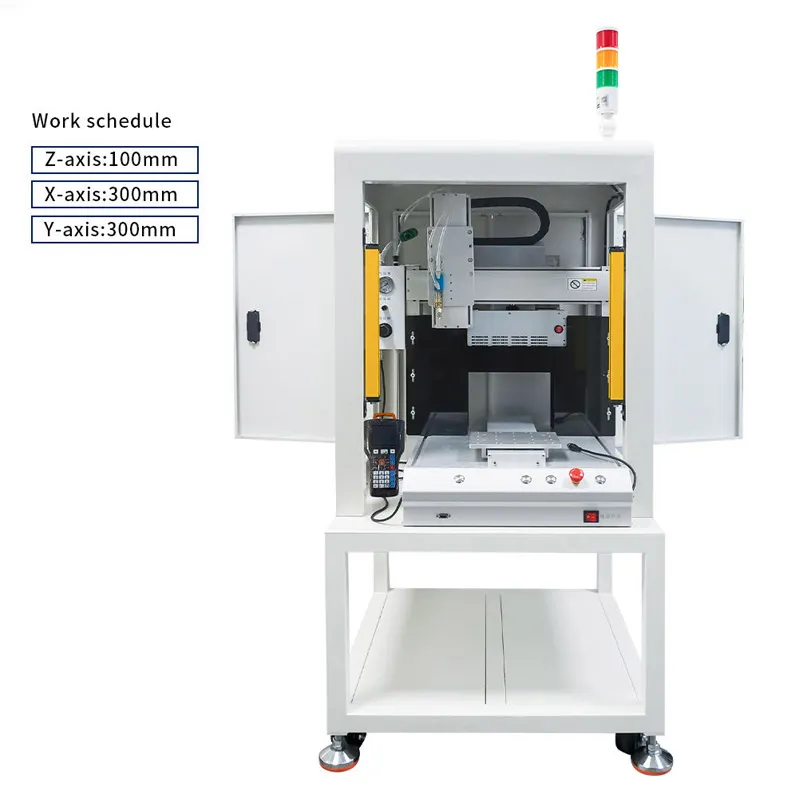

Dispensing Range X/Y/Z (mm)	300/300/100 (Customizable)
Programming Mode	Teaching programming or graphic import
Movable Graphic Trajectory	Points, lines, arcs, full circles, curves, polylines, helices, ellipses
Dispensing Valve	Can be compatible with different types of dispensing valves
Dispensing Barrel	30ml / 50ml / 300ml / 960ml
Equipment Repeatability Accuracy	±0.02mm
Minimum Dispensing Volume	0.01ml
Dispensing Frequency	5 times/S
Dispensing Accuracy	Error 2%
Maximum load	10KG
Moving Speed (mm/sec)	0-500
Power	800W
Number of Program Records	Group 999
Display Mode	LCD Instruction box
Motor System	Leadshine
Actuator	Leadshine
Guide Rail	Three-Circle
Photoelectric Switch	Omron
Transmission Mode	Elatech Synchronous belt
Input Power Supply	Voltage AC110V~220V
External Control Interface	RS232
Weight	85KG
