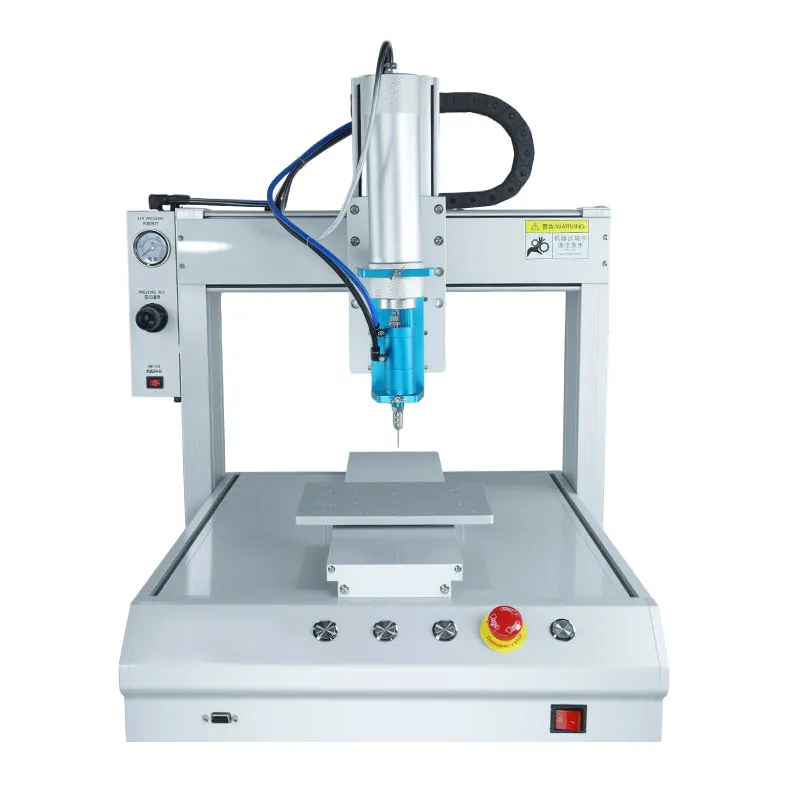

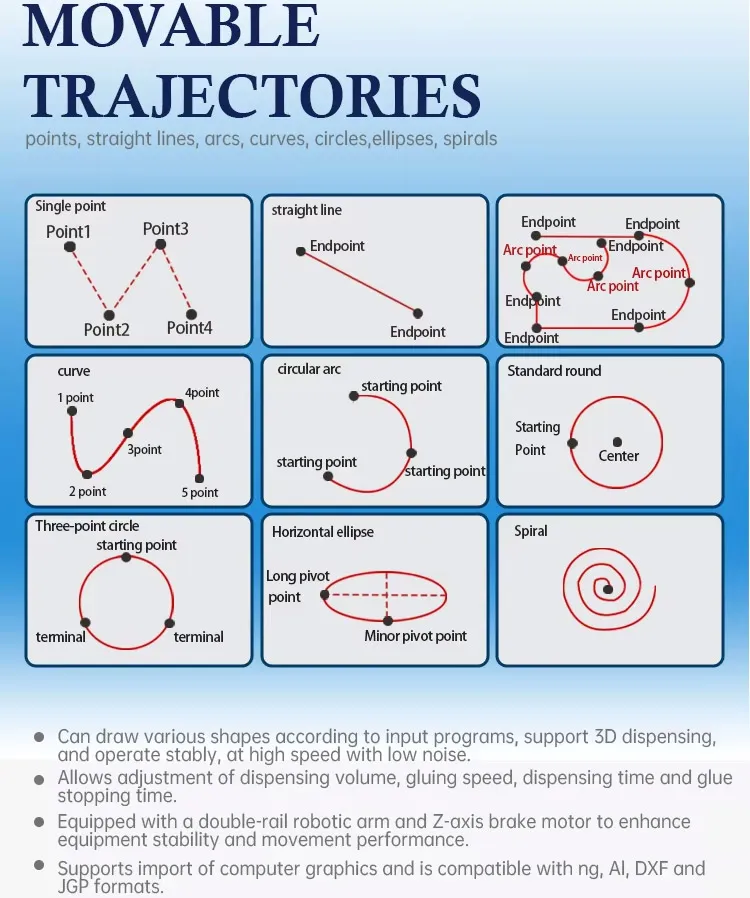

This desktop automatic 3-axis glue dispensing machine, equipped with a single-station working platform(Customizable multi-station platform), offers rapid response, stable dispensing, high precision, and no stringing. Its dispensing path supports dotting, line drawing, surface coating, arcs, circles, and irregular continuous interpolation curves. It also includes advanced features such as array expansion, graphical preview, rotation, 3D ellipses, insertion of common circular libraries, and group editing. With fully automated dispensing operations, it is widely applicable, has a long service life, and helps save costs while improving production efficiency.
The glue dispenser machine are compatible with a wide range of adhesives, such as hot glue, instant adhesives, epoxy resins, glass glue, yellow glue, AB glue,etc. The selection of dispensing valves and the optimization of dispensing time programs must be tailored to the specific properties of each adhesive to achieve optimal performance. Customized solutions based on your requirements will yield the best results.(For any other questions, please feel free to contact us.)
| Model | XHD-331 |
|---|---|

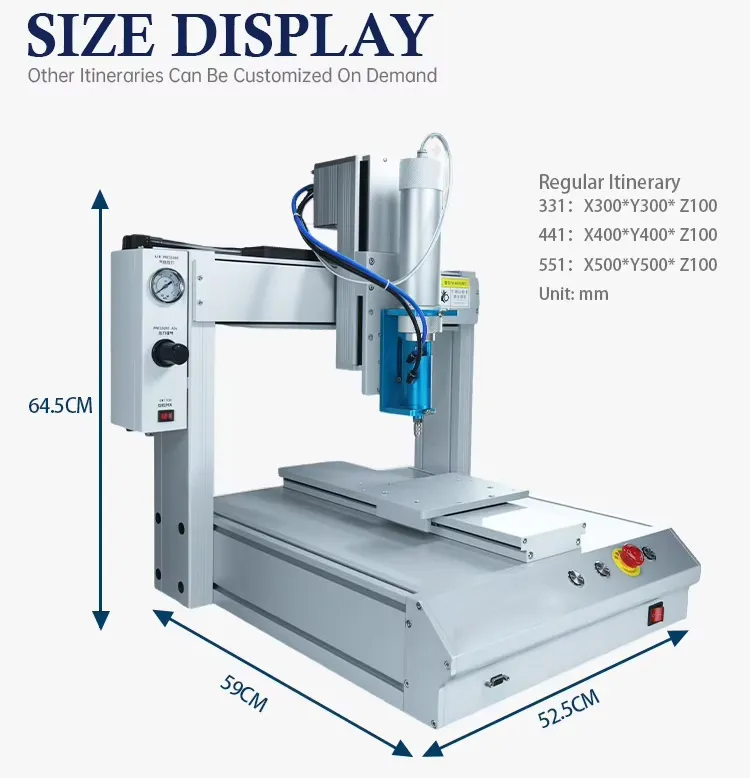

| Dimensions | 520*580*650mm |
| Weight | 66Kg |
| Working Range | 300 × 300 × 100 mm (Customizable) |

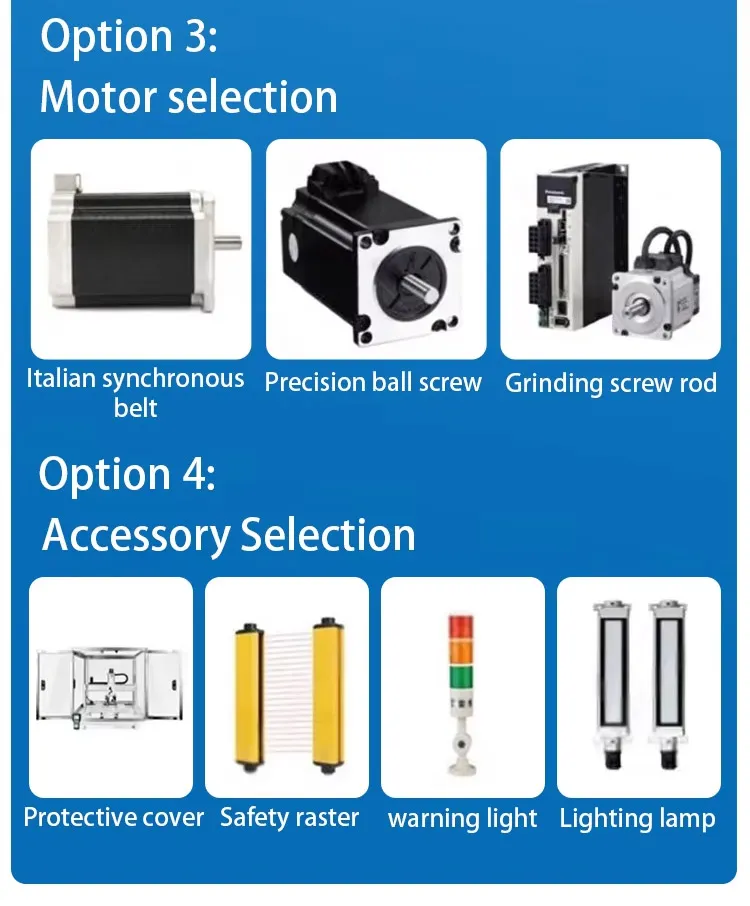

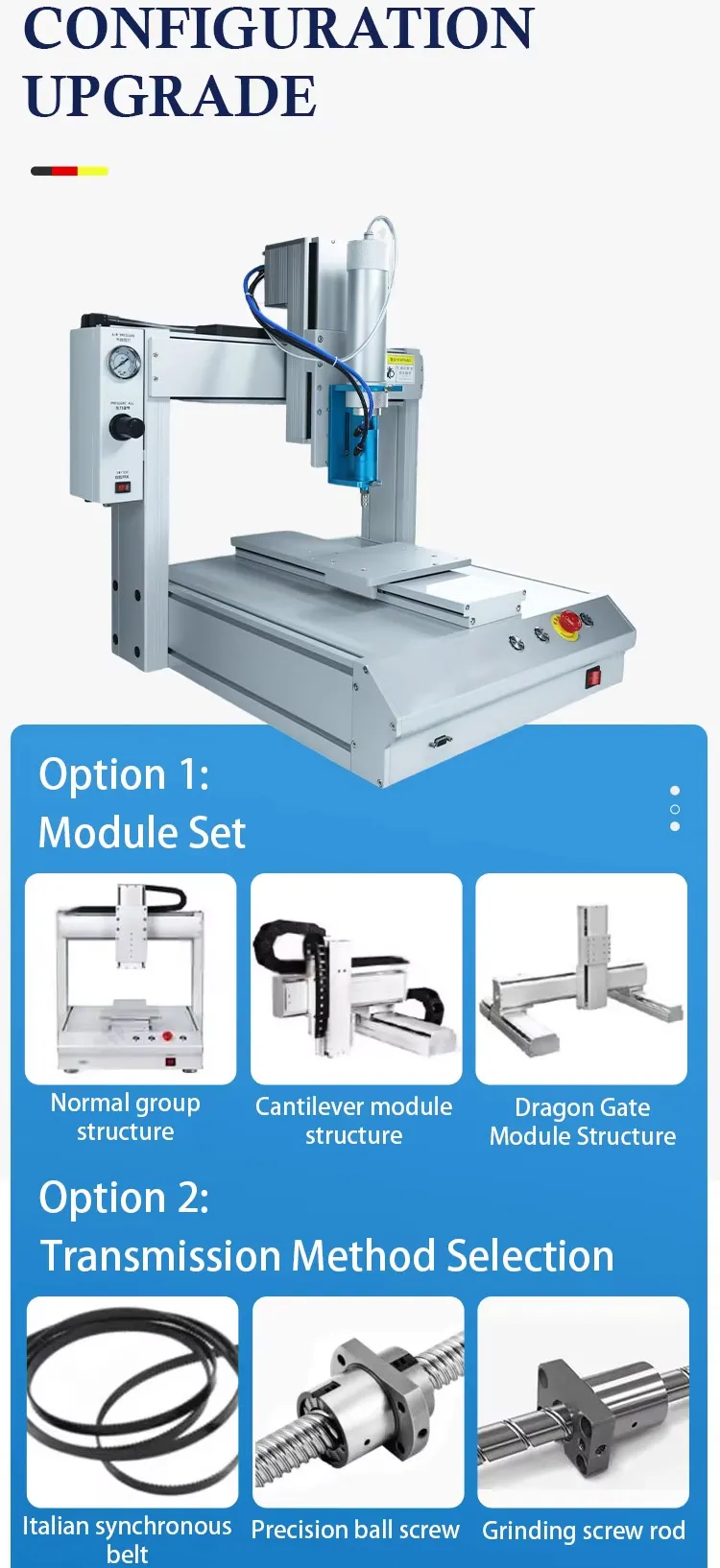

| Driving Mode | Stepper motor + synchronous belt (optional: servo motor + ball screw) |
| Valve Quantity | 1 |

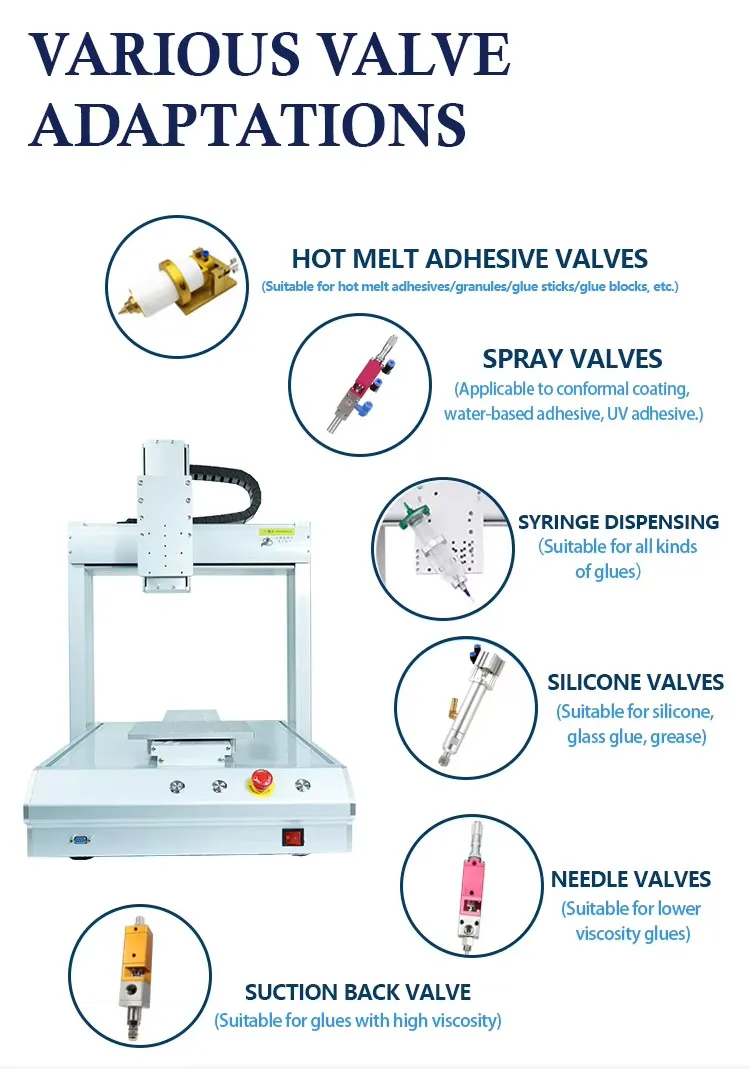

| Valve Type | Optional |
| Repeat Positioning Accuracy | ±0.02 mm |
| Running Speed | 0–600 mm/s |

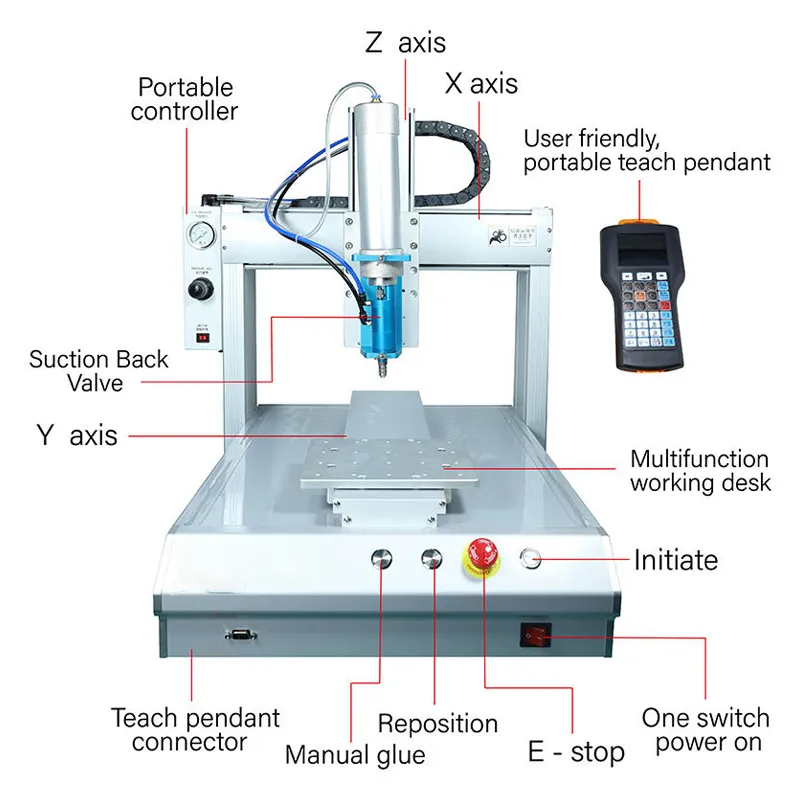

| Number of Control Axes | 3 Axis |
| Programming Mode | Online programming & offline import |
| Input Voltage | 220V, 50/60Hz |
| Total Power | 2 kW |
This hot melt glue dispensing machine is widely used in electronics assembly, LED modules, PCB fixation, wire bonding, connectors, packaging, and small consumer product assembly.
The hot melt glue dispenser machine supports EVA, PUR, PA, and other common hot melt adhesives, depending on the heating system and glue tank configuration.
The 3-axis motion system has a positioning accuracy of ±0.02 mm.
Yes, we can customize work area size, dispensing valves, dispensing accuracy, glue tank capacity, and software to meet your production needs.
You can contact our sales team with your requirements; we provide detailed quotations based on specifications and customization.
Standard machines are usually shipped within 15–25 business days, depending on customization.
Our hot glue dispensing machine typically comes with a 1-year warranty covering core components and manufacturing defects.
