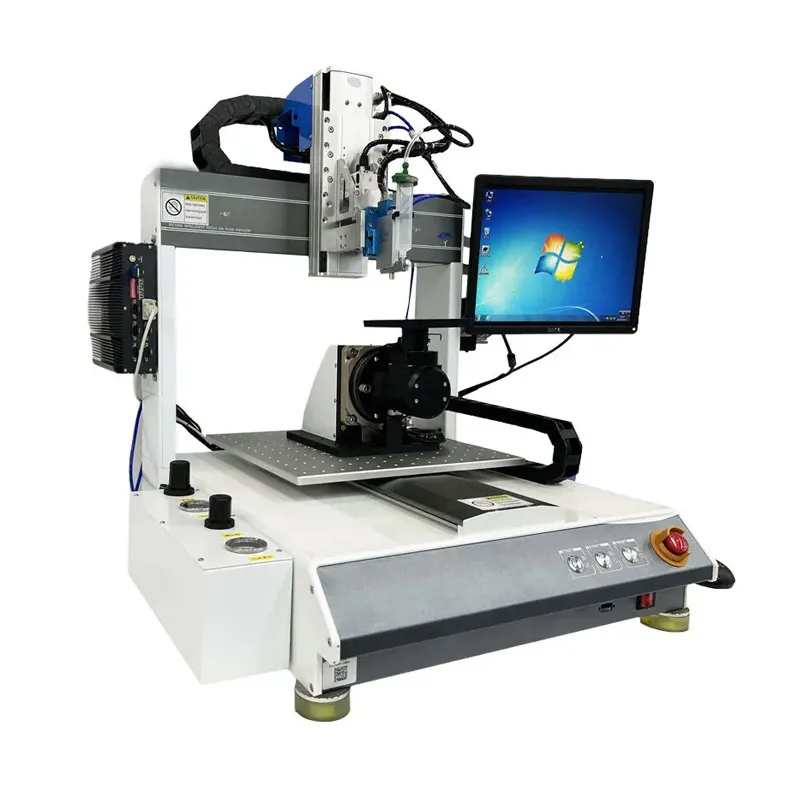

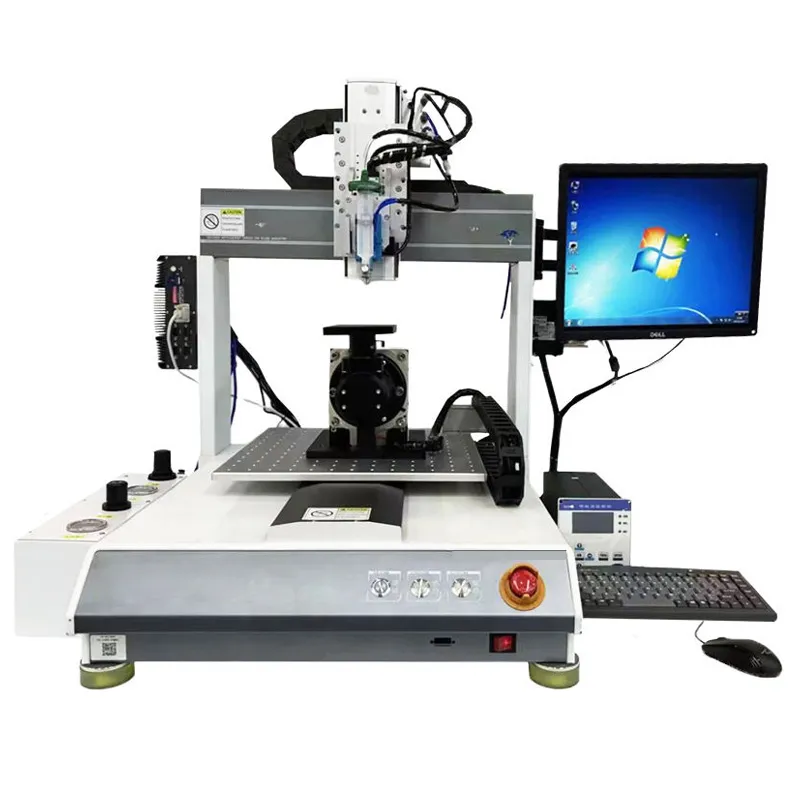

The Automated Adhesive Dispensing Machine delivers accurate and consistent adhesive application for small components and complex surfaces. Its CCD vision system ensures precise alignment, while the five-axis movement handles vertical, horizontal, and curved surfaces with ease. Compact and stable, it supports dots, lines, surface coating, and irregular patterns, making it ideal for PCBs, sensors, connectors, and other electronic or mechanical parts.
| Model | XHD-380SV | XHD-480SV | XHD-580SV |
|---|---|---|---|
| Working range | 380(X) × 380(Y) × 100(Z) mm | 480(X) × 480(Y) × 100(Z) mm | 580(X) × 480(Y) × 100(Z) mm |
| Max payload | 20kg(Y) / 15kg(Z) | ||
| Max travel speed | 500 mm/sec (XY) / 200 mm/sec (Z) | ||
| Driven mode | Servo motor, Ball-screw | ||
| XYZ position accuracy | ±0.015 mm | ||
| Resolution | 0.01 mm | ||
| Memory storage | 120G | ||
| Operating method | Windows | ||
| Motor | Servo motor, Ball-screw | ||
| Movement patterns | 3-axis spot to spot, continue line, arc | ||
| I/O | 1 input, 4 output (support expansion) | ||
| Power supply | AC 220V 50/60 Hz, 1 KW | ||
| Working environment | Temperature 0~40℃, Humidity 20%~90% | ||
| Weight | Approx 48 kg | Approx 60 kg | Approx 75 kg |
| Machine dimension | 520 × 583 × 645 mm | 620 × 683 × 645 mm | 720 × 783 × 645 mm |
We are a professional manufacturer with in-house design, production, and quality control for automated adhesive dispensing machine.
Yes, we offer both OEM and ODM solutions to meet your specific production requirements.
The machine achieves positioning accuracy up to ±0.015 mm.

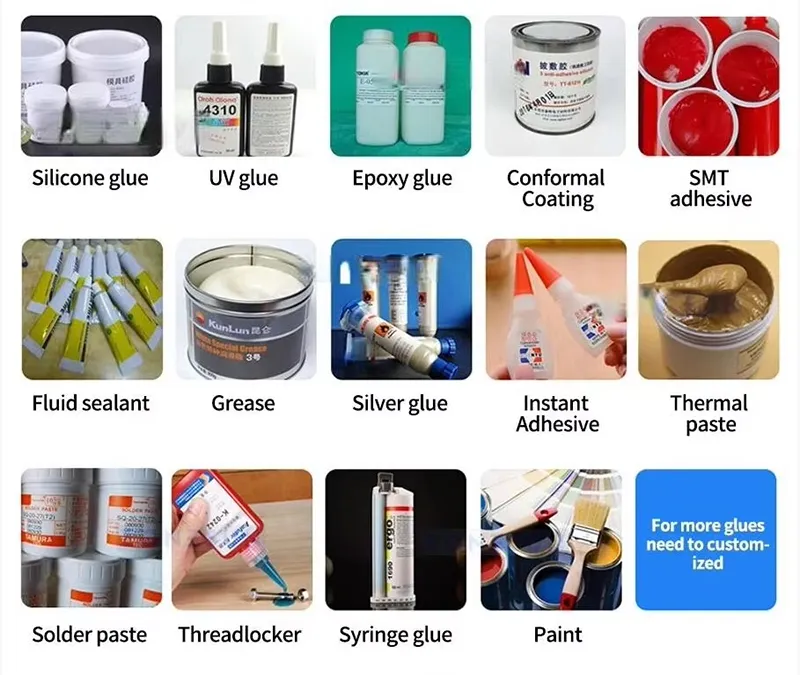

The adhesive dispenser machine supports UV glue, AB glue, hot melt adhesive, epoxy, silicone, and other common industrial adhesives.

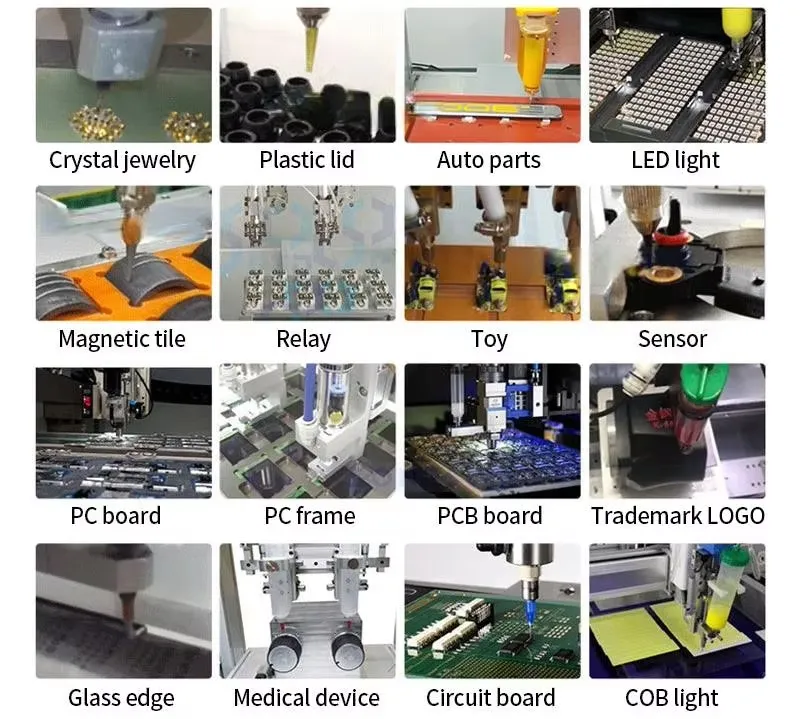

The adhesive dispensing machine is suitable for PCB assembly, semiconductor packaging, LCD screen bonding, mobile phone component assembly, and small hardware parts.

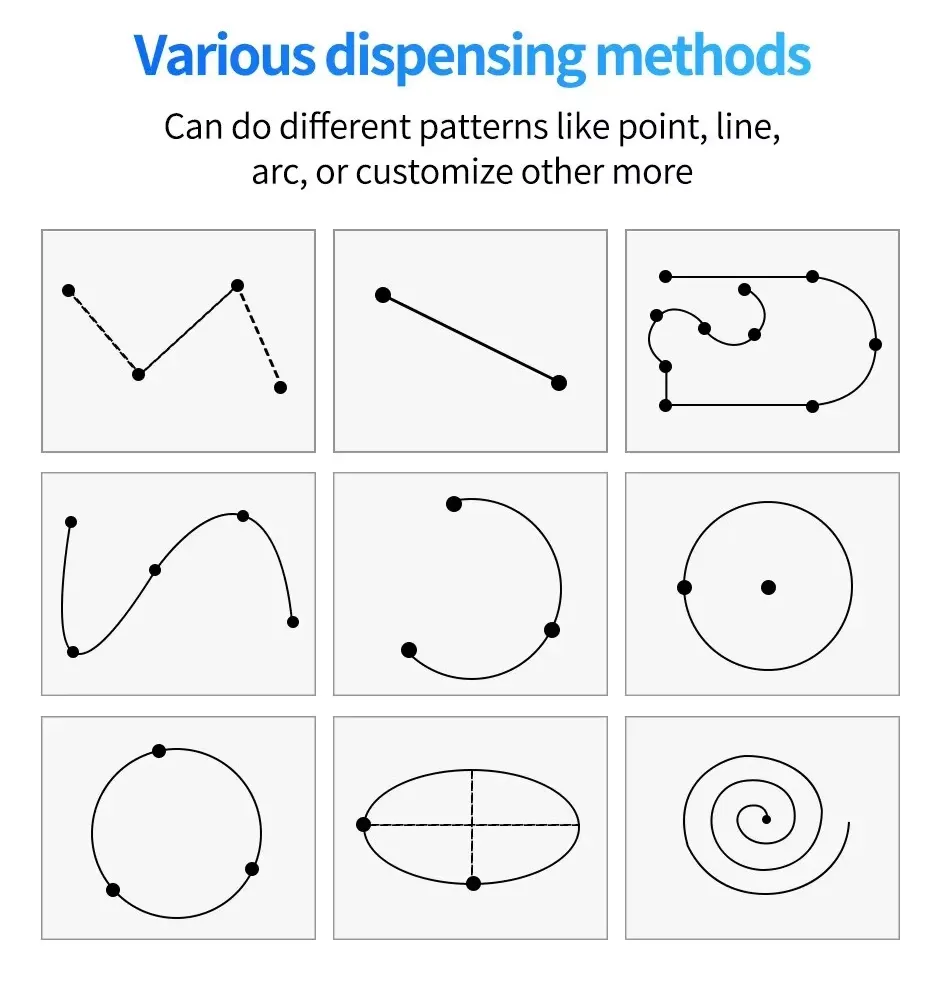

Yes, it supports dotting, line drawing, surface coating, circle, arc, and irregular continuous patterns.
Lead time depends on customization but standard models usually ship within 7–15 days.
Standard warranty is 12 months from the date of delivery.
Yes, we can provide video demonstrations or perform sample dispensing tests with your adhesive.
If you have any questions or require a quote, please leave us a message. Our experts will respond within 24 hours and help you choose the right automation solution.
