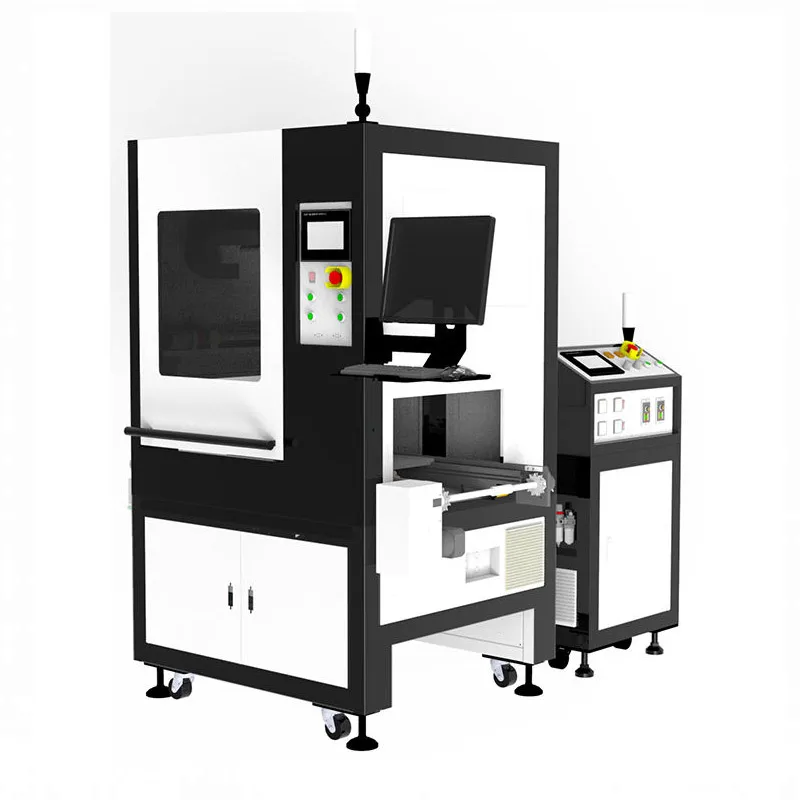

The auto screw assembly machine is designed according to the customer's assembly line, and can be directly connected with the existing assembly line, which does not require manual loading and unloading in the assembly line, so as to realize real unmanned operation. This kind of machine applies to radiator digital products, the lighting industry, lock toys, and hardware industry areas.
| Models | XHD-SC3400 |
|---|---|
| Working area (X*Y*Z*R mm) | 400*400*120mm |
| Max loading | Y/10kg; Z/8kg |
| Moving speed | X/Y: ≤800mm/s; Z: ≤300mm/s |
| Repeatability | ±0.01mm |
| Screen | Teach pendant / PC |
| Motor system | High precision servo motor + ball screw |
| Visual positioning system | Optional |
| Transmission method | Chain drive, adjustable range of 50~400mm |
| Program display |
Non-visual mode: teach pendant Visual mode: PC |
| Full-voltage | AC220V 50/60Hz |
| Operating temperature | 5–40°C |
| Operating humidity | 20–90%, no condensation |
| Dimension (W*D*H mm) | 1150*893*1350 |
| Weight | Around 500kg |
| Screw Size | M1.0 – M6.0 (customizable) |
| Applicable Screws | all screws type (customized types) |
