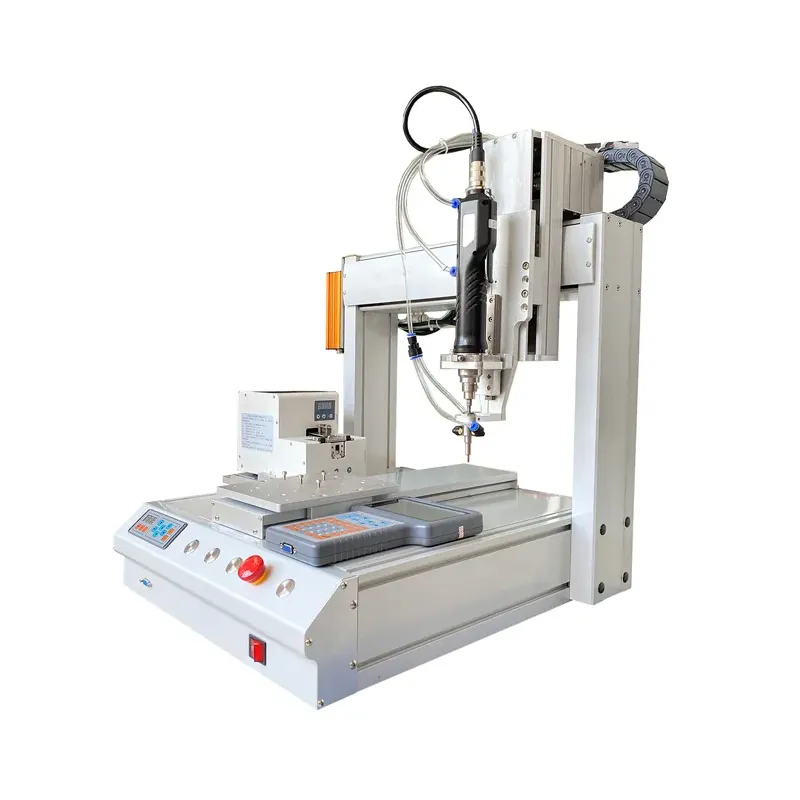

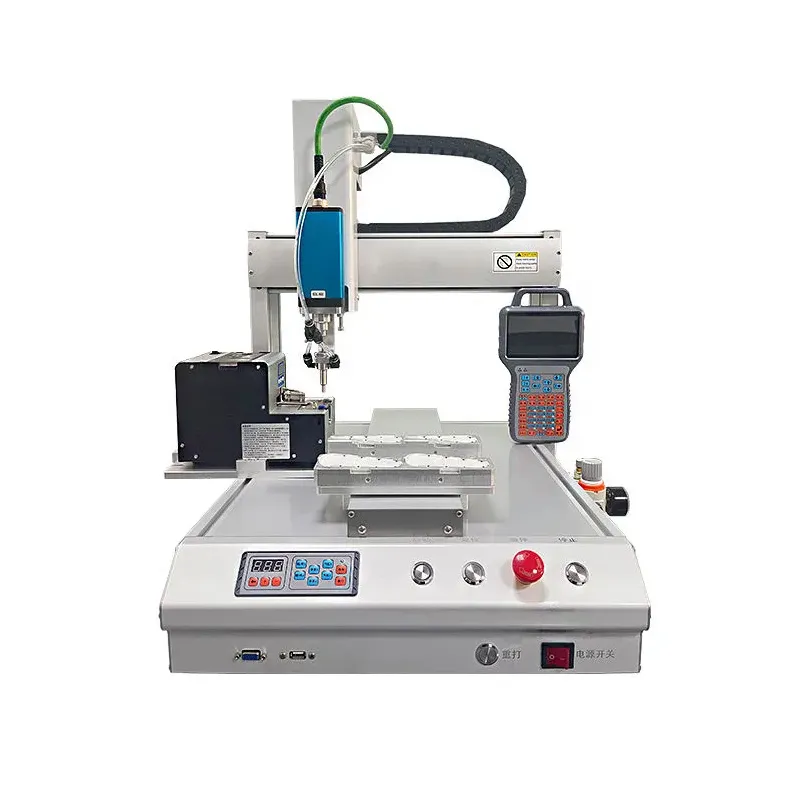

Automatic Screw Locking Machine

Features:

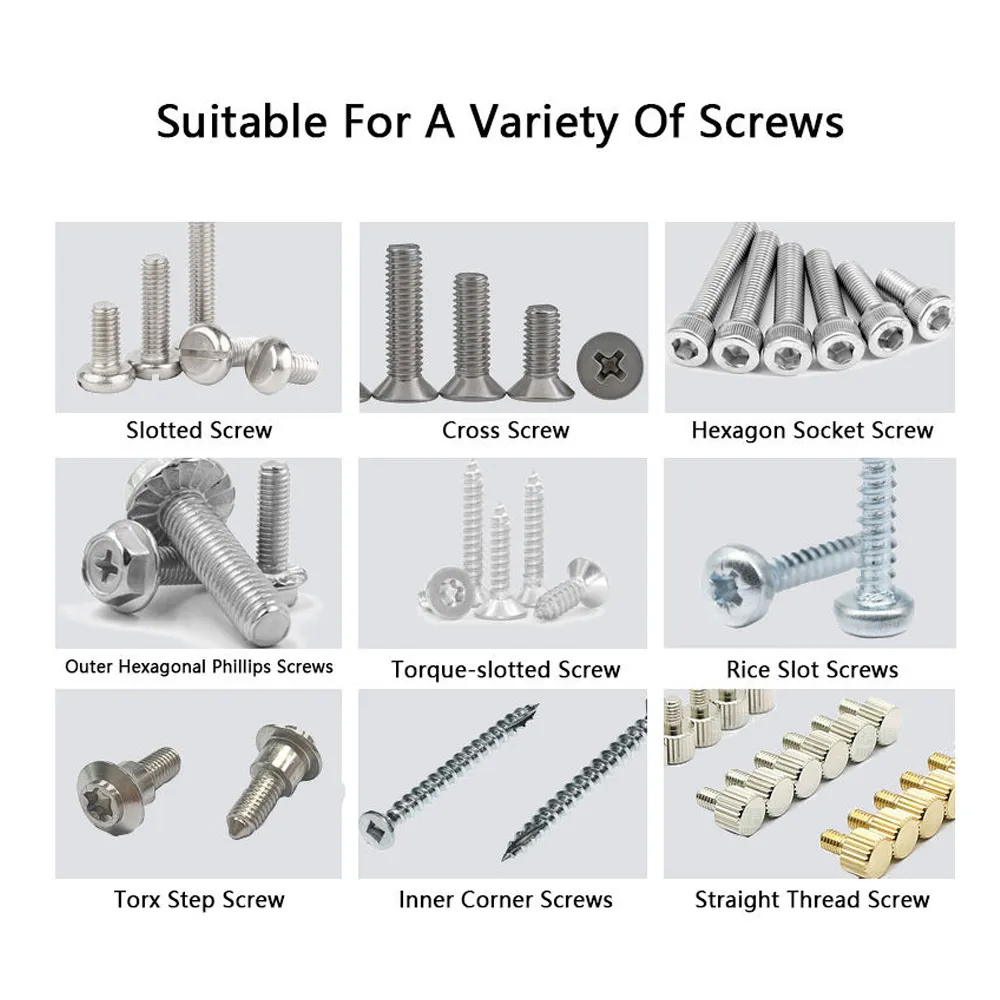

1. Desktop automatic screw feeding, sorting and locking for various shapes screws
2. Torsion precision and convenient adjustment, ensure the quality of screw locking.
3. Turbine feeding, low volume and noise, convenient maintenance. Light weight and small, mobility and save space.
4. The automatic screw locking machine with intelligent inspection function, inspection miss locked,unstable locked,loose screw and so on. Once a screw did not fill in place it can fill continually or start alarm processing.
5. Touch screen display or teach pendant programmable achieve more operations,Through a simple programming, can be put into production, convenient for production and management.
6. The Y axis can be made into double-station(that is, double Y axis),so the operator can load alternately.
7. High efficiency. No need to pick up screws, move screws and put screws. Just need to lock the screws aimed at the screw hole.
8. Sensor controls screws feeding one by one to avoid feeding repetition.
9. Can lock screws very fast, around lock 60 screws per minute.

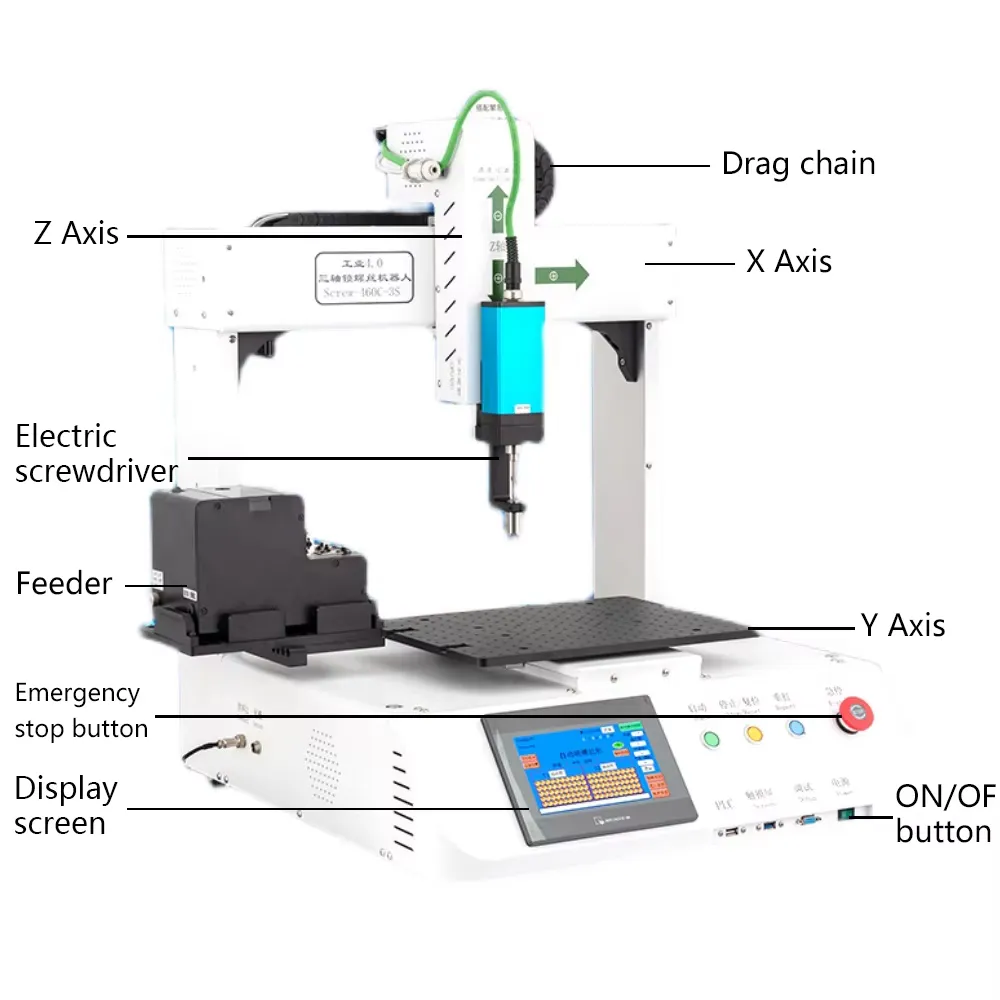

10. 3-axis single station, small machine size, flexible and universal, does not occupy production line space.

Parameters

Locking Range	420 × 360 × 90 mm (single-side X × Y × Z)

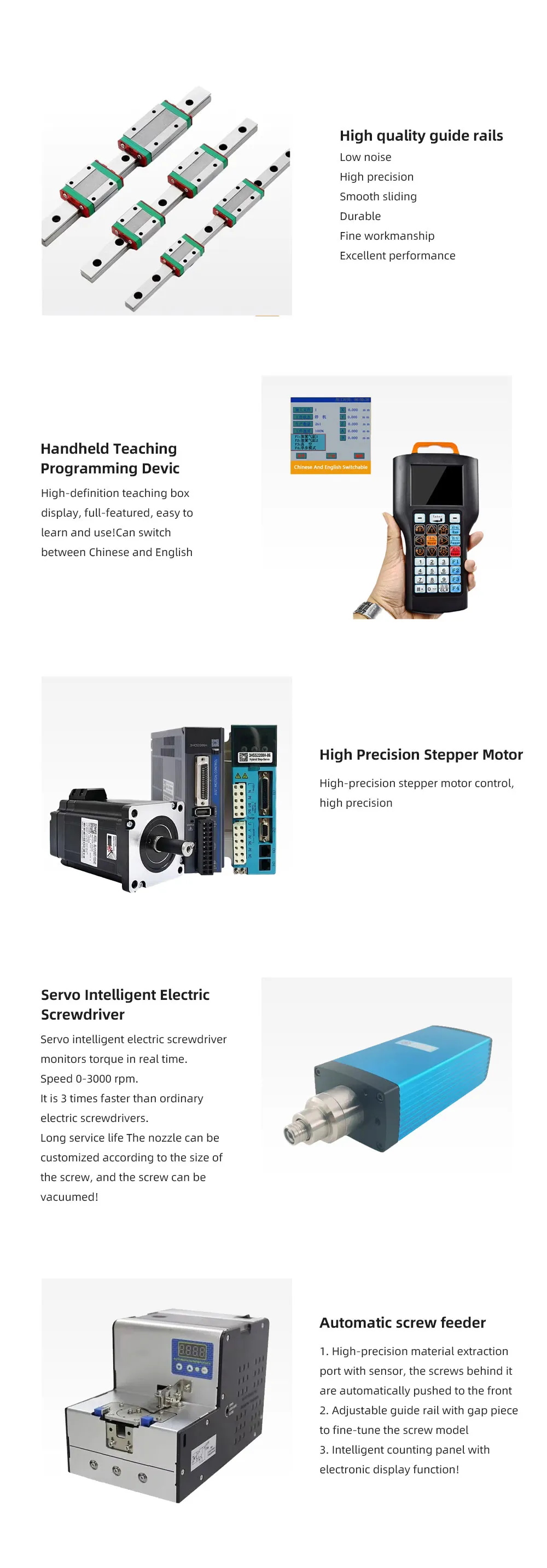

Transmission Mode	Closed-loop stepper motor
Linear Guide	WECN
Positioning Accuracy	±0.02 mm
Control System	High-performance motion control card + touch screen
Feeding Method	Blowing type
Electric Screwdriver	Servo screwdriver
Number of Feeders	1 set
Locking Efficiency	1.5–1.8 s
Program Capacity	100 sets
Communication Port	USB
Power Supply	AC 220V
Air Source	0.5–0.6 MPa
Equipment Power	800 W
Dimensions (W × L × H)	765 × 660 × 780 mm
Machine Weight	55 kg
