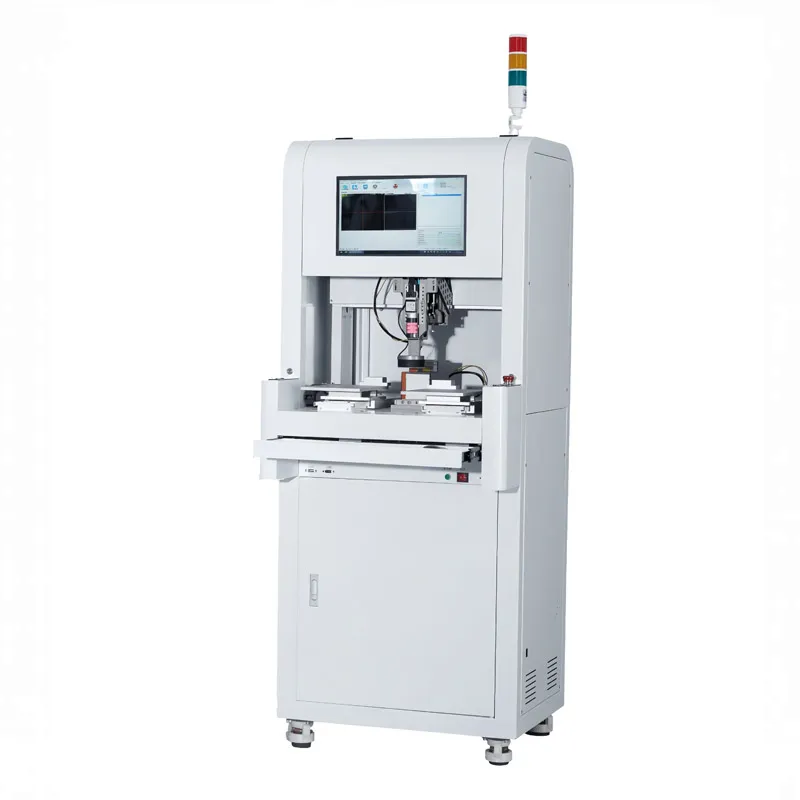

■ The automatic screw fitting machine is suitable for M1.0-M3.0 screw lock.
■ The machine has double platform efficiency and high precision.

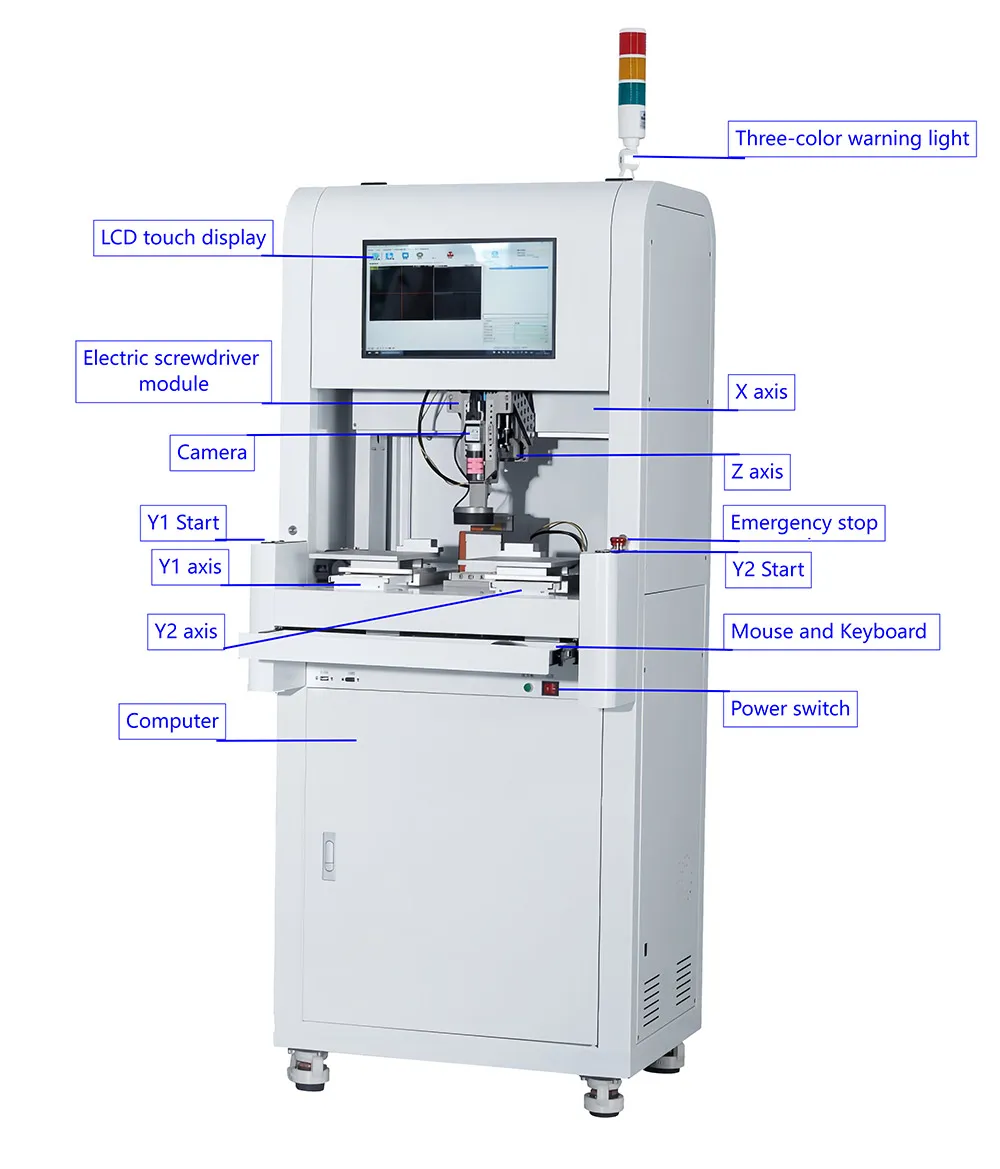

■ Dual platform structure, CCD visual positioning, custom development of screw fastening system.
■ IPC control system, visual programming, unlimited data preservation.
■ Intelligent battery, arbitrary torque, speed setting, can monitor the torque waveform and torque value.
■ CCD assisted teaching screw coordinate points, CCD screen bad screw holes.
■ Screw float height detection, automatically record float height coordinates.
■ Automatically read product CAD drawings and generate coordinates.
■ Automatic detection function, can detect leakage lock, float lock, slip teeth.
| Model | XHD-SF602 |
|---|---|
| Outline Size | L670 × W650 × H1650 mm |
| Working Range | X180 × Y200 × Z80 mm |
| Drive Mode | 4-Axis Servo |
| Position Accuracy | ±0.01 mm |
| Operating System | Windows 10 |
| Control System | IPC + Industrial CCD + High-Performance Motion Control Card |
| Electric Driver System | Automatic electric screwdriver, torque adjustable and monitorable |
| Programming Mode | CCD mark teaching + CAD coordinate import + manual teaching |
| Operation Interface | 14" LCD + Keyboard + Mouse |
| Feeder Quantity | 1 pc |
| Screwing Time (Per Screw) | < 1.2 s/pc (Depends on screw specification) |
| Power Supply | AC 220V 50Hz |
| Air Pressure | 0.5 ~ 0.7 MPa |
| Applicable Screw Size | M1.0 – M3.0 |
| Weight | 100 kg |
We are a professional automatic screw fitting machine manufacturer with in-house design, production, and quality control. We have over 20 years of experience in automatic screw fitting and assembly solutions.
Yes, we provide both OEM and ODM customization based on your production needs.
The automatic screw fitting machine provides high-precision screw positioning with an accuracy of ±0.01 mm.

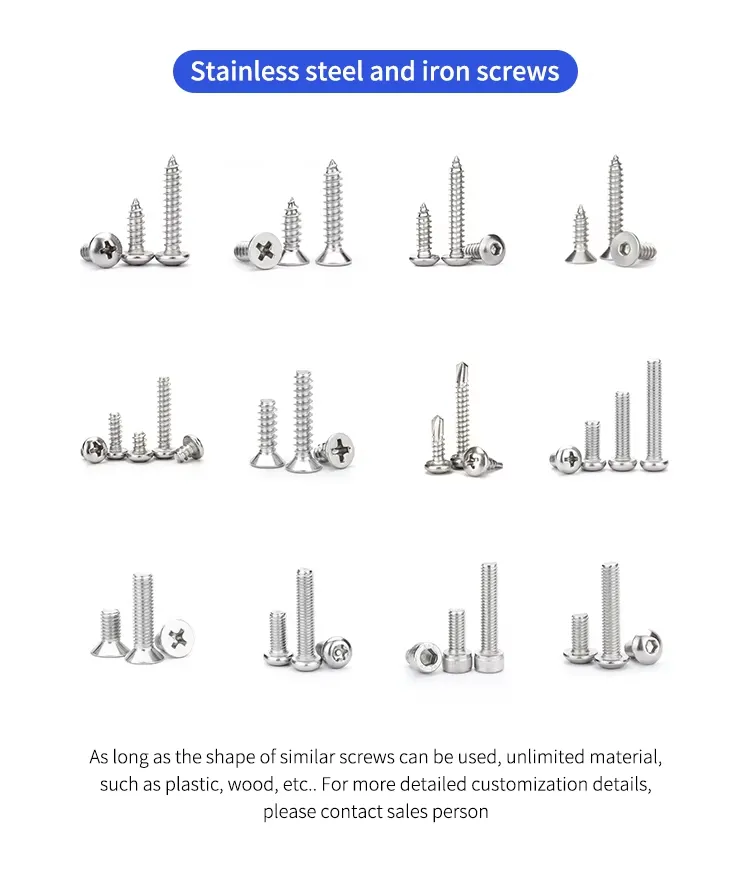

The machine is suitable for M1.0–M3.0 screws, including standard screws, self-tapping screws, deep-hole screws, bevel screws, and screws with washers. Special screws can also be supported through customization.
This automatic screw fitting machine is widely used in industries that require high-precision and high-efficiency screw fastening, such as consumer electronics (mobile phones, tablets, laptops), automotive electronics, medical devices, small home appliances, smart home products, LED lighting, communication equipment, PCB and SMT assembly, wearable devices, battery and new energy products, precision hardware, and industrial control equipment. It is especially suitable for products with small screws, multiple screw positions, high accuracy requirements, and automated mass production lines.
Yes, it can be customized to match your assembly line layout.
The machine comes with a 12-month warranty.
Quotation depends on customization and production requirements. Please contact us for detailed evaluation and pricing.
If you have any questions or require a quote, please leave us a message. Our experts will respond within 24 hours and help you choose the right automation solution.
