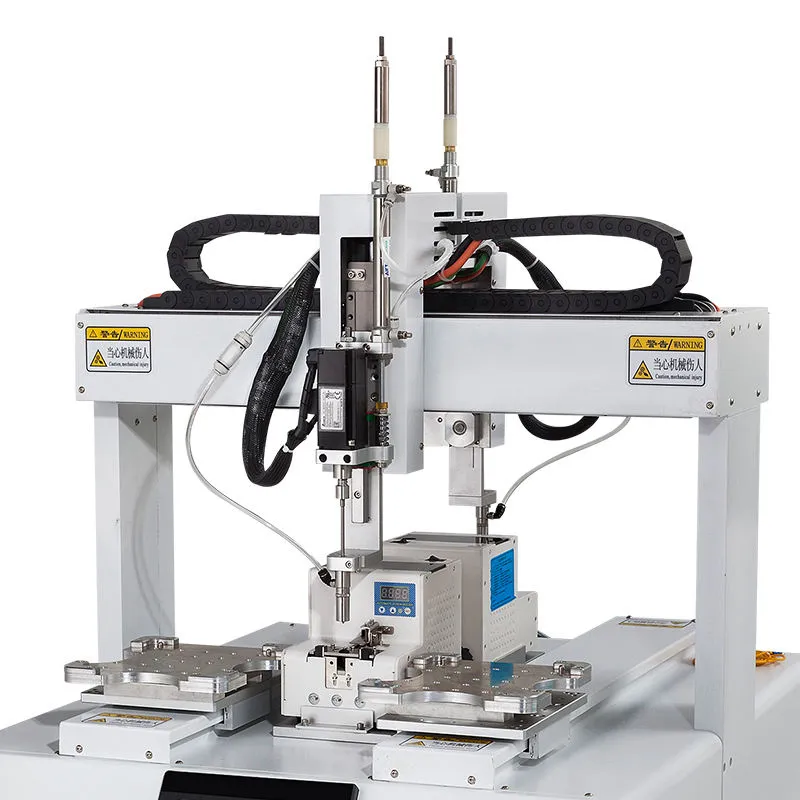

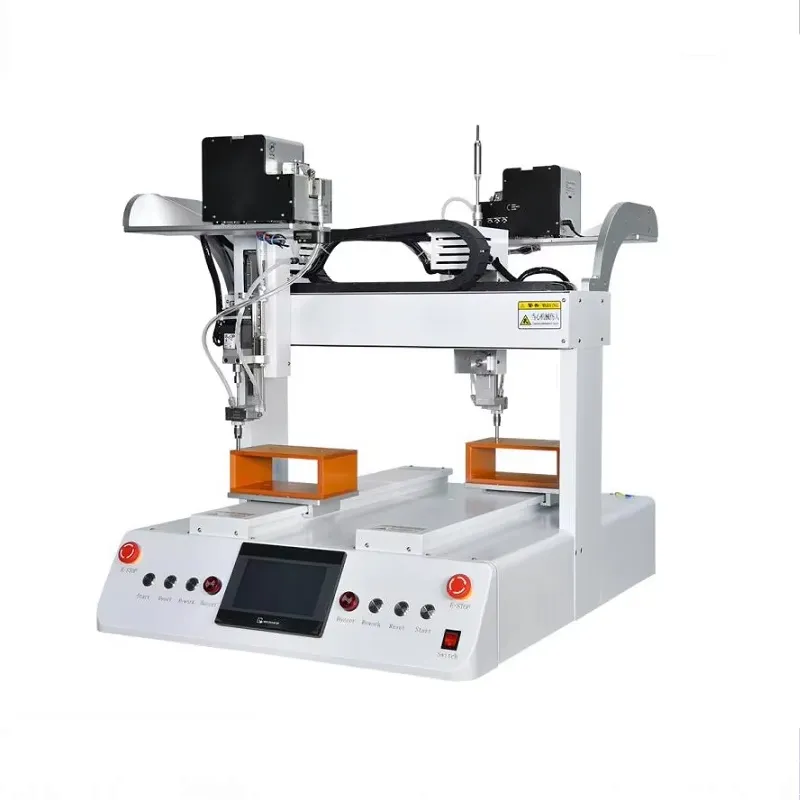

The Automatic Screw Driving Machine adopting a Back to back type can tighten two different screws on the same product on the same Y axis, so as to achieve extremely fast and efficient work mode. The automatic screw driving system supports different screw specifications and fixtures, making it adaptable to a wide range of all kinds of toys, small household appliances, electronic products, instrumentation, lighting, electronics, plastic, alloy, communication equipment, audio and other locking screw technology.
| Model | XHD-5021-2Z | XHD-5023-2Z | XHD-4220-2Z | XHD-4222-2Z | |
|---|---|---|---|---|---|
| Axis Range | X1, X2 | 210 mm | 210 mm | 200 mm | 200 mm |
| Y-1 | 500 mm | 500 mm | 420 mm | 420 mm | |
| Y-2 | 500 mm | 500 mm | 420 mm | ||
| Z | 135 mm | 135 mm | 135 mm × 2Z | 135 mm | |
| Dimension (mm) | L | 950 | 950 | 970 | 830 |
| W | 720 | 720 | 820 | 820 | |
| H | 900 | 900 | 900 | 900 | |
| KG | 100 | 100 | 100 | 100 | |
| Power Source | 220V / 110V (Please specify) | ||||
| Motor | Stepper Motor (Specify if servo motor is needed) | ||||
| Precision | ±0.02 mm | ||||
| Control System | SCM + Touch Screen | ||||
| Screwing Time per Screw | 1 – 1.5 s/piece | ||||
| Suitable Screw Size | M1 – M6 | ||||
| Program Capacity | 999 files, each file can save up to 999 points | ||||
| Movement Speed | X/Y Axis ≤ 500 mm/s, Z Axis ≤ 300 mm/s | ||||
Yes, we are a professional manufacturer of automatic screw driving machines with in-house design, assembly, and quality control.
Yes, we provide both OEM and ODM services for branding and specialized production requirements.
Yes, the automatic screw driver machine can be customized with 3, 4, 5, or 6 axes to meet different production and assembly requirements.
The automatic screw driving system achieves precise screw placement within ±0.2 mm.
Our automatic screw driving system handles various screws, including self-tapping, round head, and flat head screws.
Provide your products, screw specifications, and customization requirements for a detailed quotation.
Standard machines are usually delivered within 20–35 days after order confirmation. Customized machines may require additional time.
Yes, we provide lifetime technical support for installation, troubleshooting, and upgrades.
If you have any questions or require a quote, please leave us a message. Our experts will respond within 24 hours and help you choose the right automation solution.
