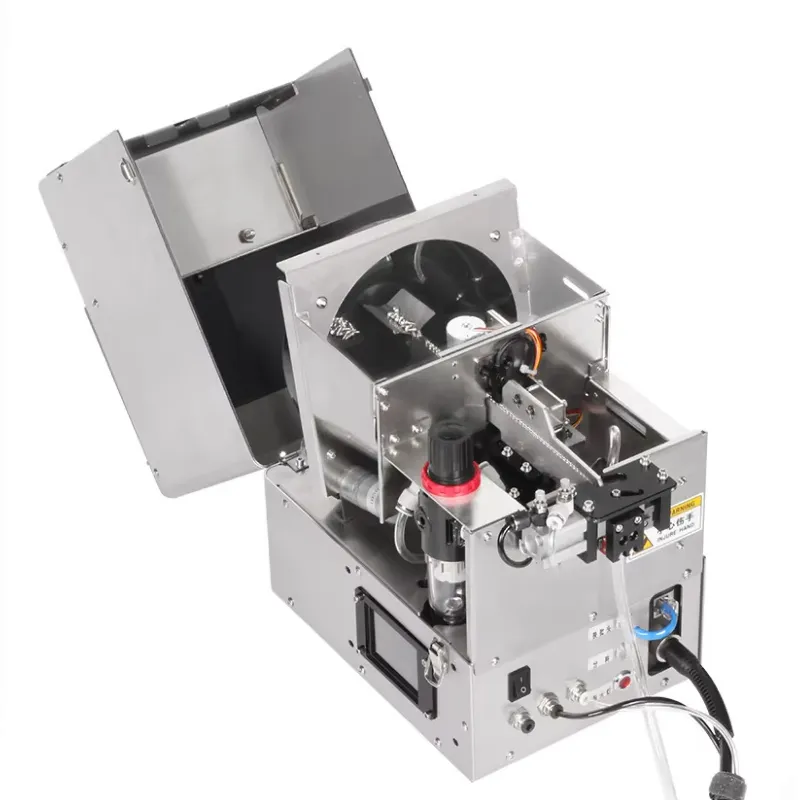

Feeding by means of turbine completely overturns the working principle of the traditional handheld auto feeding screw tightening machine,discards the vibrating disk and pusher, and makes the screw tightening machine more light, safe, stable, fast, low noise and low energy consumption. The screws are sorted on the vibration guide way for gong screening,and are transferred to the screw distributor to distribute the screws and sent to the lock mouth by tracheal pressure.
| Model | XHD-SCLS-3 |
|---|---|
| Feeder Mode | Blowing Type |

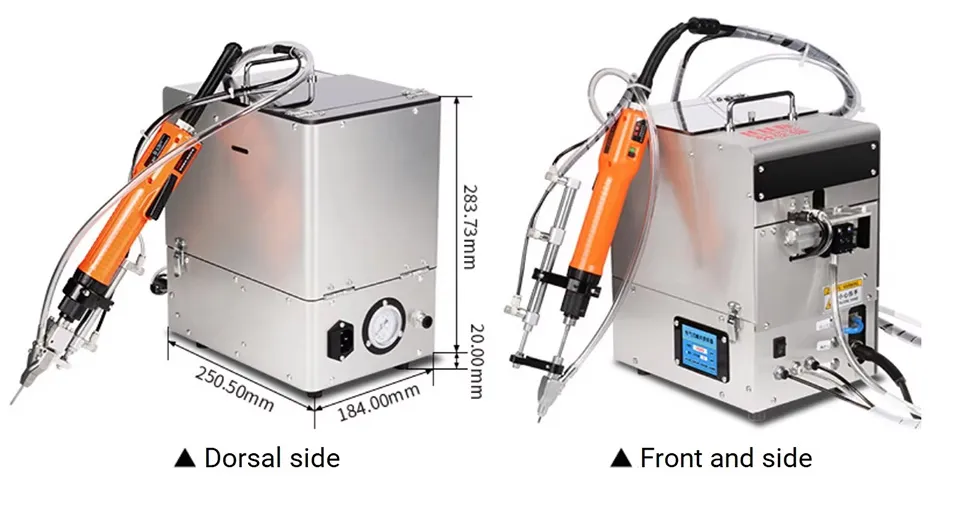

| Dimension (L × W × H) | 251 × 184 × 284 mm |
| Weight | 15 kg |
| Conveying Distance | 1–4 m |
| Feeder Capacity | 2000–5000 pcs (depending on screw type) |
| Screw Feeding Speed | 0.5 s / pcs |
| Screwdriver Brand | Taiwan HHB |
| Torque Range | 0.5–15 kgf·cm (adjustable) |
| Tightening Efficiency | 50–70 pcs/min (depending on screw length) |
| Voltage | AC 110V / 220V, 50Hz / 60Hz |
| Power Source | Electric + Pneumatic |
| Power | 30 W |
| Air Supply | 4–6 kg/cm² |
| Noise Level | ≤ 65 dB |
| Working Temperature | -20°C to 40°C |
| Working Humidity | 20–90% RH |
| Package Dimension | 505 × 410 × 510 mm |
| Gross Weight | 25 kg |
We are a professional auto feeding screw tightening machine manufacturer with in-house R&D, assembly, testing, and quality control.
Yes, we provide both OEM and ODM services based on customer requirements.

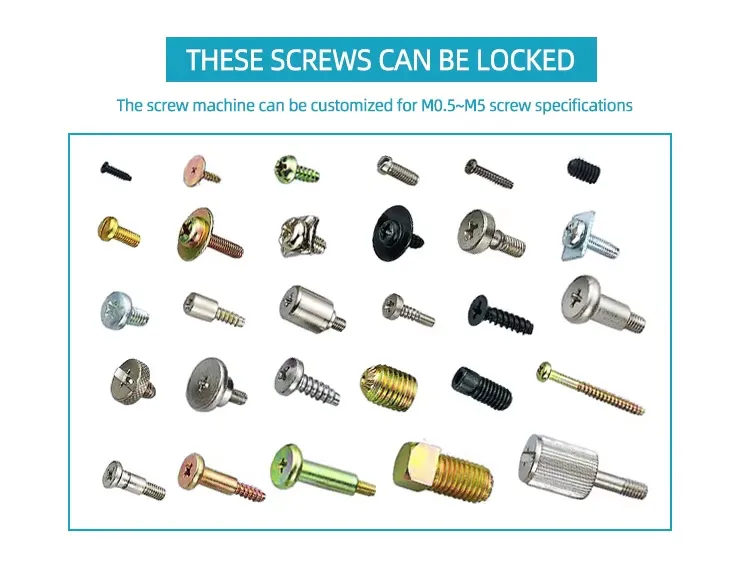

Yes, the machine supports screws from M0.5 to M5 through customized feeding and tightening configurations.
Yes, we can share application cases and configuration suggestions upon request.
Standard models usually ship within 7–15 working days.
We provide a standard 12-month warranty.
Yes, we welcome long-term distributors and partners.
If you have any questions or require a quote, please leave us a message. Our experts will respond within 24 hours and help you choose the right automation solution.
