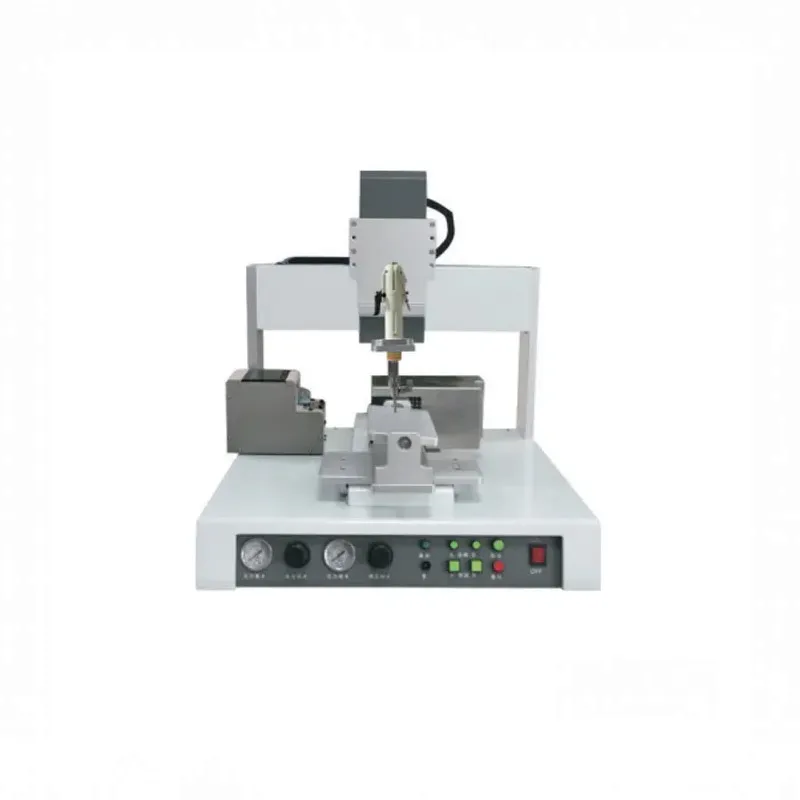

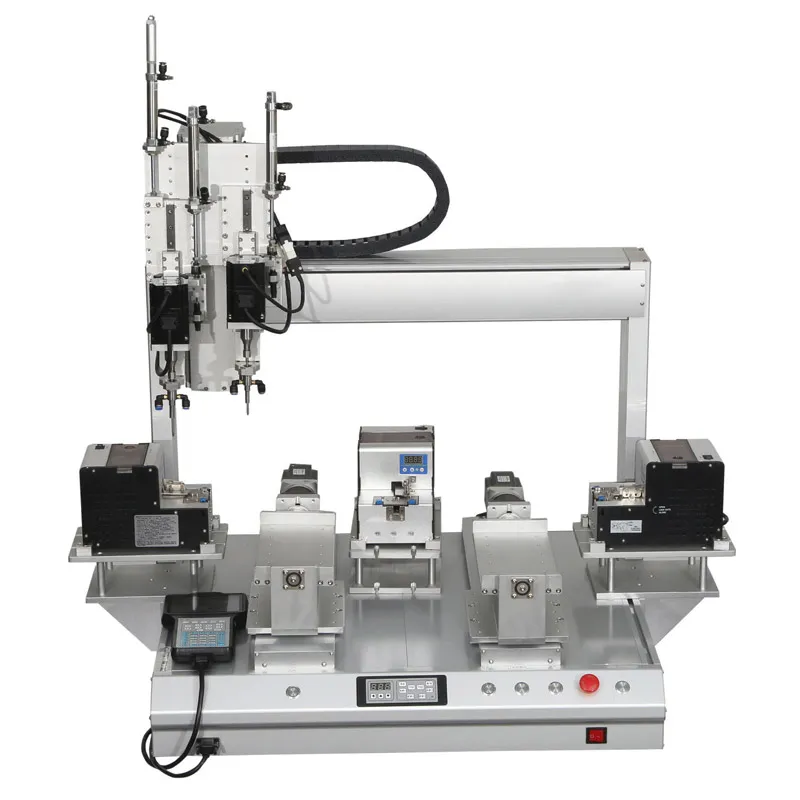

The automatic screw driver machine equipped with rotary product placement platform can rotate from 0° to 360°, allowing screws to be tightened from multiple sides, perfectly suited for complex or multi-surface assembly applications.
The automatic screw driving system is with various types for screw tightening solutions: single platform, double platform, dual screw feeding systems, double screw feeder with blowing and pneumatic mode to meet different product requirements.
The machine is programmed by teaching pendant for easy operation with detection functions as leak lock,sliding teeth,floating lock and so on.
The automatic screw driving machine is applied to M1-M8 screws, mainly applicable for socket, switch, LED, valve, toy, automobile, household appliances, 3C industry etc.
| Model | XHD-T43311 | XHD-T44411 | XHD-T53311 | XHD-T54411 | XHD-T43312 | XHD-T44412 | XHD-T53312 | XHD-T54412 | |
|---|---|---|---|---|---|---|---|---|---|
| Stroke | X | 400mm | 400mm | 500mm | 500mm | 400mm | 400mm | 500mm | 500mm |
| Y1,Y2 | 300mm | 400mm | 300mm | 400mm | 300mm | 400mm | 300mm | 400mm | |
| Z | 100mm | ||||||||
| R | 0~360° | ||||||||
| Number of screwdriver set head | 1 | 2 | |||||||
| Rated speed (MAX) | 500(1000) mm/s (X-Y-Z) | ||||||||
| Repeatability | ±0.02mm | ||||||||

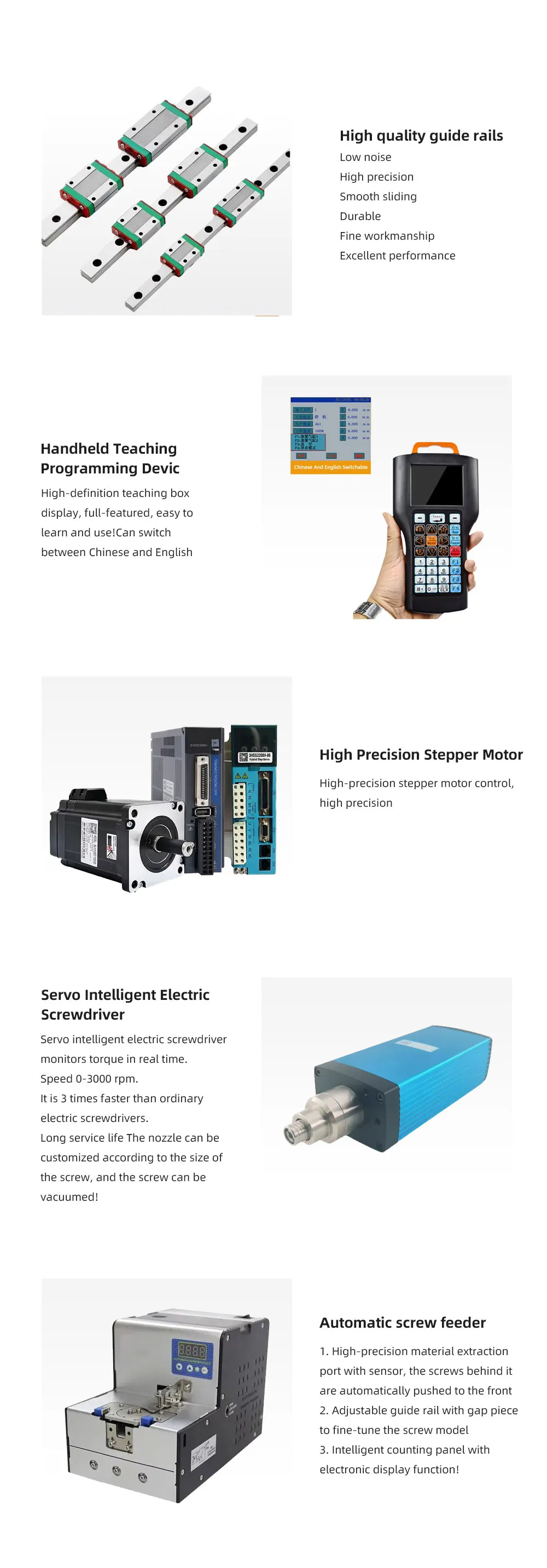

| Driving method | Stepping motor / servo motor + synchronous belt / ball screw rod | ||||||||
| Movement method | Point to point, linear and circular interpolation continuously variable transmission | ||||||||
| Programming interface | Teaching pendant / PC | ||||||||
| Slicable graphics | Straight lines, circles, arcs, continuous lines, 3D irregular lines | ||||||||
| Program capacity | 100 groups / 1000 points each group | ||||||||
| External way | RS232 | ||||||||
| Torque | 0.03~45kgf.cm | ||||||||

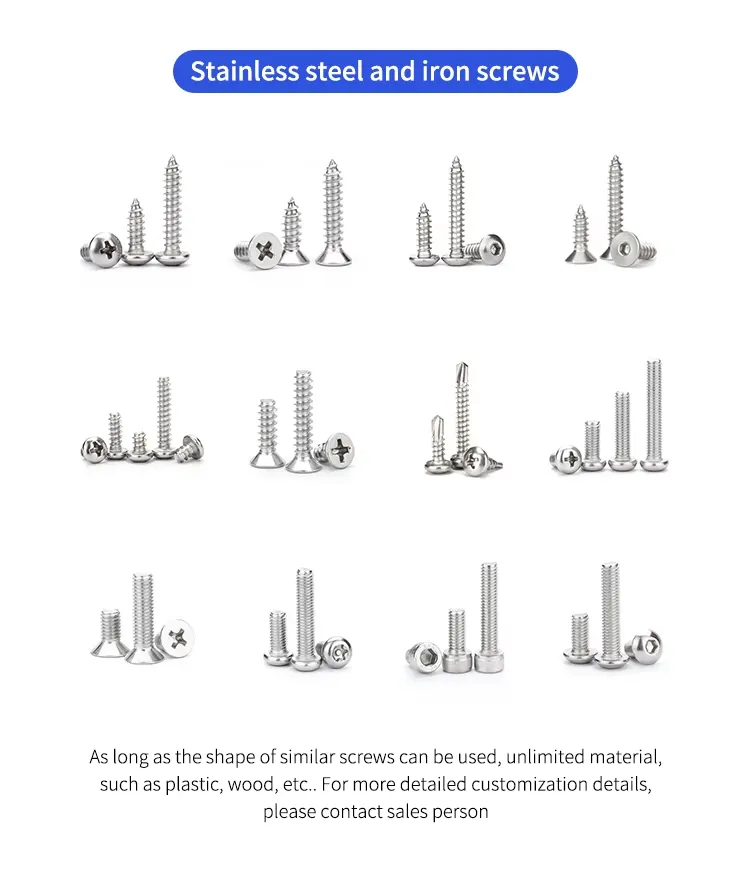

| Applicable screws | M1.0~M5.0 | ||||||||
| Dimension | L | 580mm | 680mm | 580mm | 680mm | 580mm | 680mm | 580mm | 680mm |
| W | 520mm | 620mm | 720mm | 720mm | 620mm | 620mm | 720mm | 720mm | |
| H | 603mm | ||||||||
| Input power | 110V/220V/50Hz | ||||||||
| Enter air pressure | 4~7kgf/cm² | ||||||||
| Weight | 70kg | 75kg | 75kg | 80kg | 70kg | 75kg | 75kg | 80kg | |
| The machine can hang many electronic screwdrivers, non-standard specifications can be customized | |||||||||
An automatic screw driving system is an automated fastening solution that automatically feeds, positions, and tightens screws with preset torque and depth. It improves production efficiency, ensures fastening consistency, reduces labor costs, and is widely used in electronics, automotive, home appliances, and assembly industries.
We are a manufacturer specializing in automatic screw driving systems with in-house design, production, and quality control.
Yes, we support both OEM and ODM based on customer requirements.
The automatic screw driving machine supports screws ranging from M1 to M8.
Yes, it is designed for complex and multi-surface automatic screw driving applications.
Fixtures can be customized based on product shape and requirements.
You can provide screw size and production requirements, and we will recommend a suitable solution.
Yes, we provide full technical support and after-sales service.
The price depends on configuration and customization requirements. Our engineering team will evaluate your application and provide a suitable solution with a detailed quotation.
