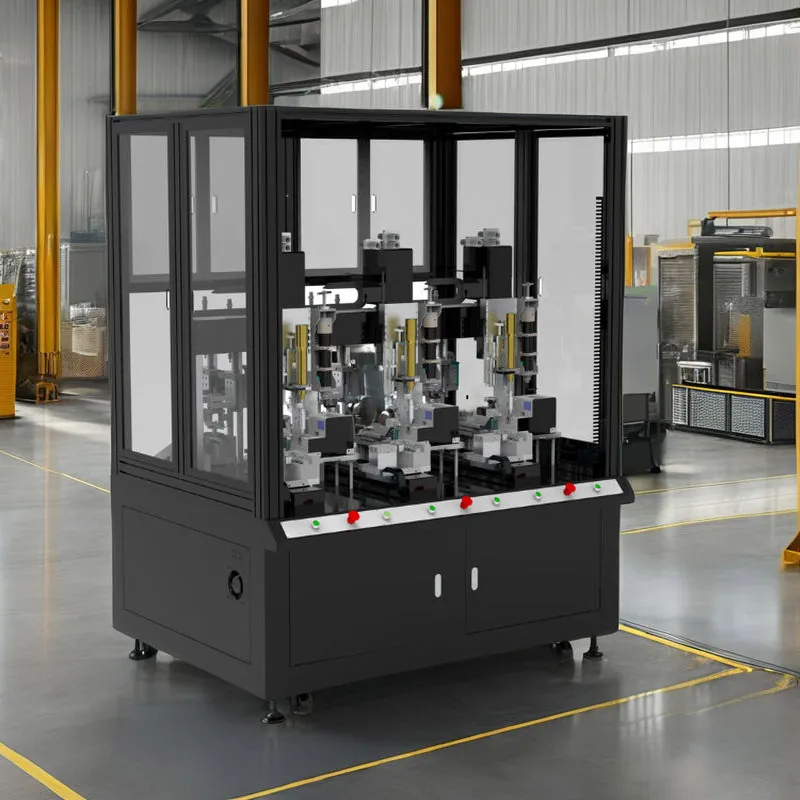

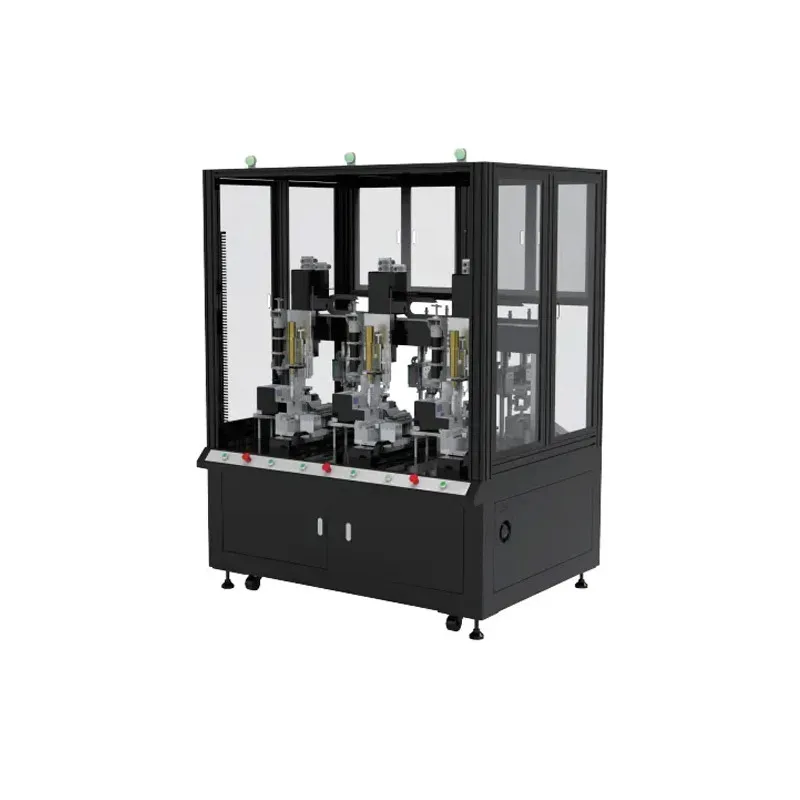

The Floor Type Automatic Screw Assembly Machine features a three-station design, allowing simultaneous operation of three electric batches to effectively double production efficiency. With fully automatic loading and unloading, it enables true unmanned operation, saving labor costs. Equipped with intelligent torque detection and an automatic alarm system, it ensures precise fastening quality and reliable production safety.
| Model | XHD-AS373-T |
|---|---|
| Working Area (X*Y*Z) | X1/X2: 330 × Y1/Y2: 700 × Z1/Z2: 100 mm |
| Moving Speed | X/Y axis ≤ 500 mm/s, Z axis ≤ 300 mm/s |
| Drive Mode | Stepper motor + linear guide or Servo motor + ball screw (optional) |
| Location Accuracy | ±0.01 – 0.03 mm |
| Control System | Moving control and teach pendant |
| Screw Transmission Method | Suction mode / Blow mode (alternative) |
| Electric Screwdriver | 3 pcs (optional) |
| Screw Feeder | 3 pcs |
| Full Voltage | 220V 50Hz |
| Operating Temperature | 5 – 40°C |
| Operating Humidity | 20 – 90% (non-condensing) |
| Air Pressure | 0 – 0.8 MPa |
| Dimension (W × D × H) | 1235 × 1080 × 780 mm |
| Weight | Approx. 420 kg |
We are a professional automatic screw assembly machine manufacturer with in-house design, assembly, and quality control.
Yes, we support both OEM and ODM according to customer requirements.
The positioning accuracy is ±0.02 mm.

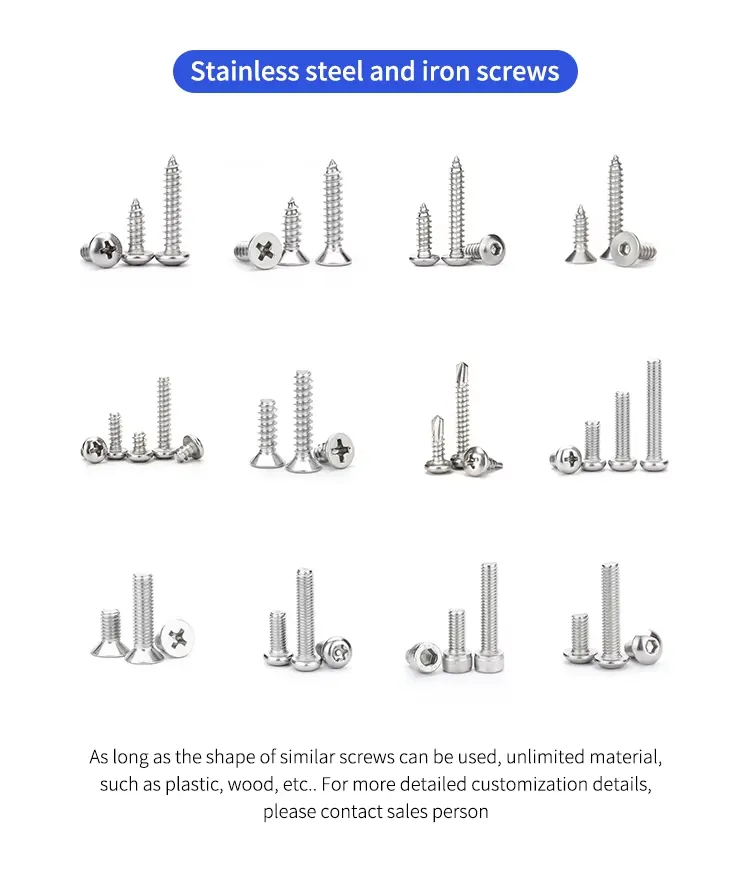

The auto screw assembly machine can handle standard screws from M1 to M8 and some special screws.
Yes, we can test samples.
The machine comes with a standard 12-month warranty for core components.
If you have any questions or require a quote, please leave us a message. Our experts will respond within 24 hours and help you choose the right automation solution.
