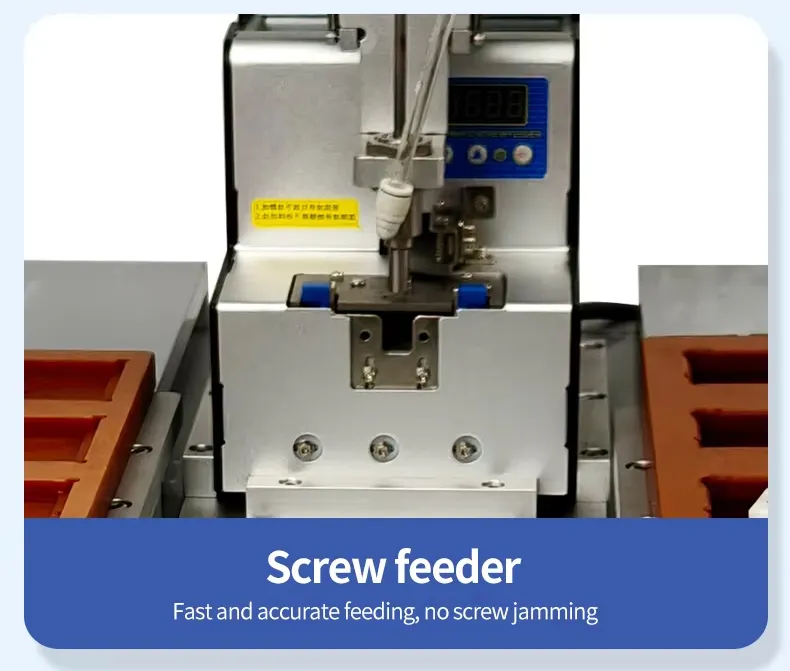

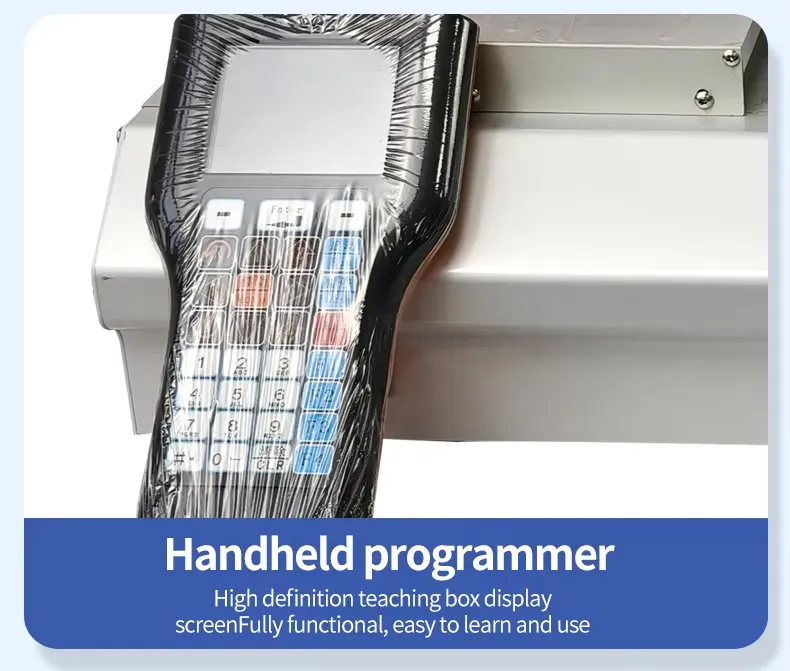

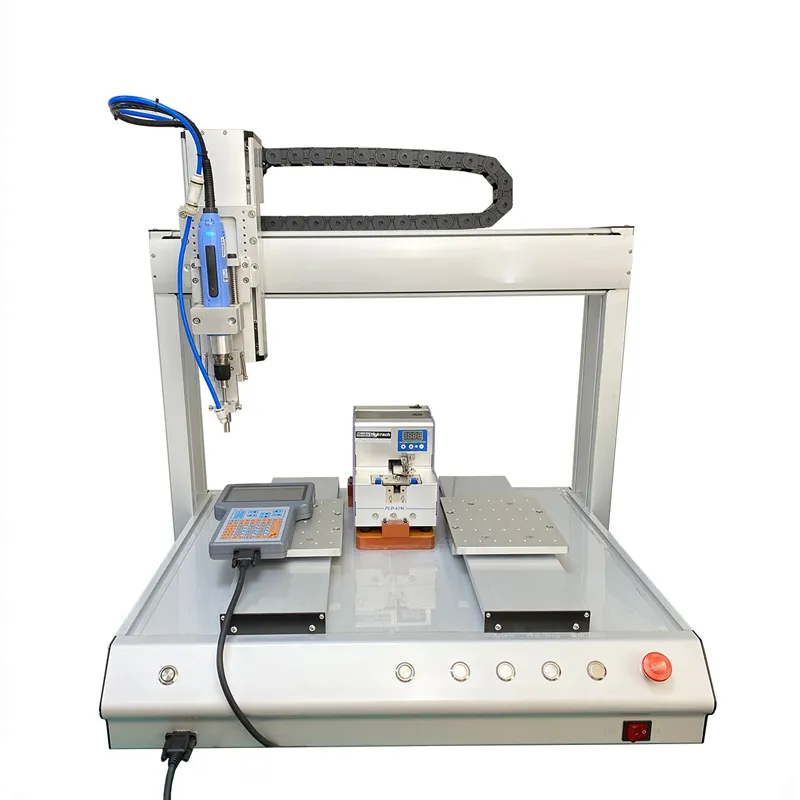

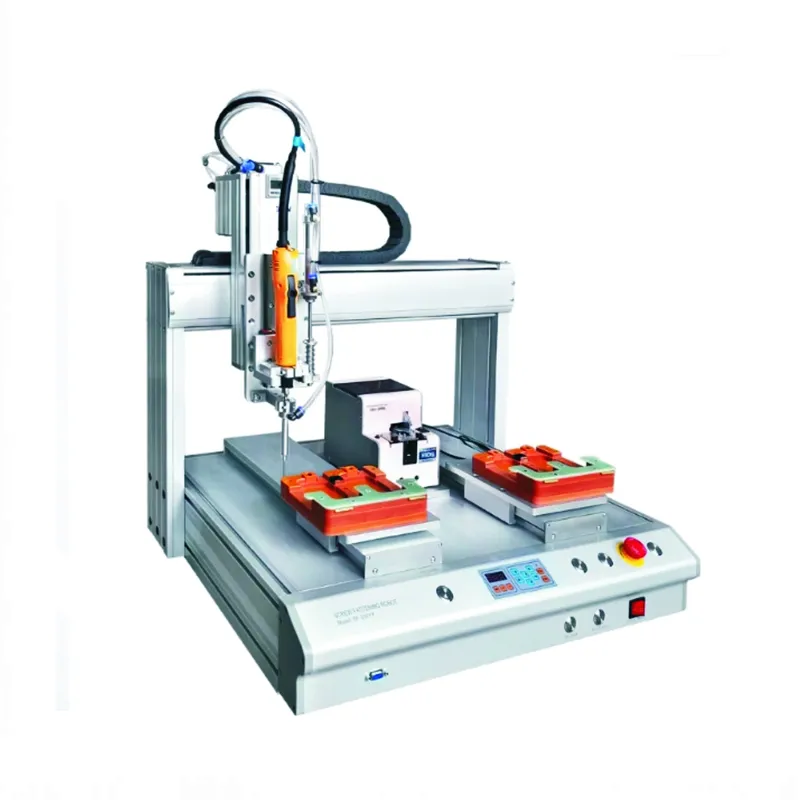

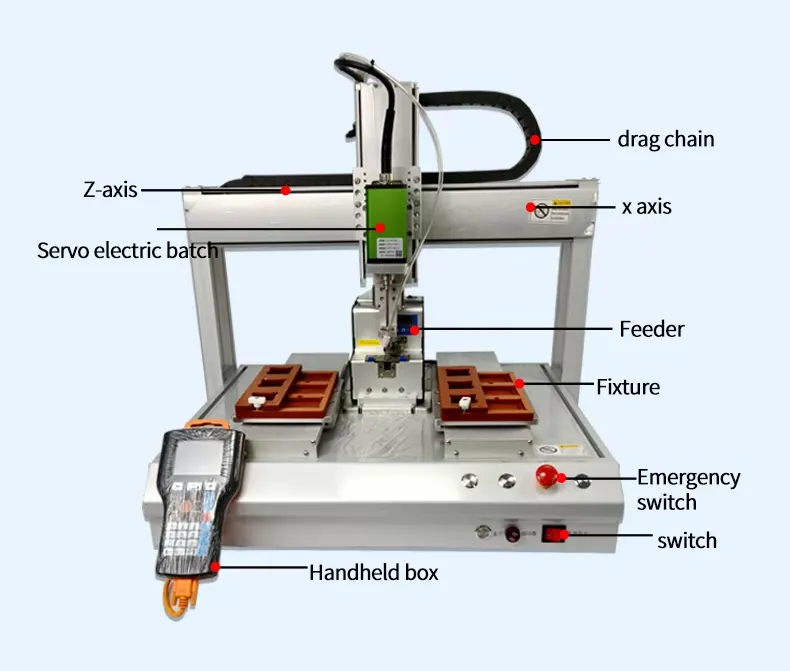

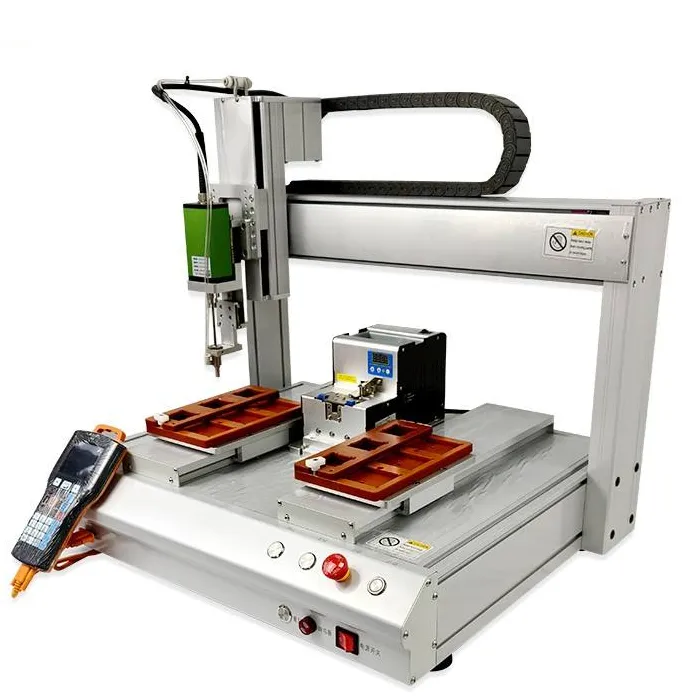

This automatic screw fastening machine features a 3-axis system and double platform design. Hand-held teaching programming allows simple operation, enabling one person to manage multiple machines. Fast fastening speed, about 1 second per screw. Supports slip-tooth detection, lock leakage monitoring, and floating lock prevention. Torque is adjustable. General-purpose and compatible with air-blow or suction-type feeders. Batch nozzles are easy to change.
| Model Number | XHD-L5331 | XHD-L5441 | XHD-L5441 | XHD-L661 |
| Operating Range (X/Y/Z) | 500(X) × 300(Y1) × 300(Y2) × 100(Z) mm | 400 × 400 × 100 mm | 500(X) × 400(Y1) × 400(Y2) × 100(Z) mm | 600 × 600 × 100 mm |
| Machine Size (W × L × H) | 746 × 585 × 800 mm | 616 × 685 × 800 mm | 846 × 785 × 800 mm | 816 × 885 × 800 mm |
| Screw Size | M1.0–M6.0 | |||
| Maximum Speed | 300 mm/s (Max customizable 800 mm/s) | |||
| Repeatability | ±0.02 mm to ±0.05 mm | |||
| Working Mode | Inhalation / Blowing | |||
| Control System | Intelligent motion control card with teaching box | |||
| Driving Mode | Precision stepper motor + synchronous belt + linear guide rail / Servo motor + ball screw | |||
| Program Storage | 1,000 sets of processed data; a single file up to 3 MB (5,000 processing points) | |||
| File Storage Space | Handheld box 256 MB, offline card 32 MB; single file up to 3 MB (100,000 points) | |||
| Transmission Mode | Dual Track Timing Belt | |||
| Maximum Load | X: 5 kg; Y1/Y2: 5 kg; Z: 3 kg | |||
| Power Supply | AC 220V, 50–60 Hz | |||
| Work Environment | Humidity: 20–90%, Temperature: 0–60 ℃ | |||
| External Interface | USB + RS232 | |||
| Packing | Wooden box | |||
We are a professional automatic screw fastening machine manufacturer with in-house design, assembly, testing, and quality control.
Yes, we support both OEM and ODM projects.
Yes, sample testing is available upon request before shipment.
Yes, we offer customization based on product size, screw type, working area, and production requirements.
Standard models are usually delivered within 7–15 working days. Customized machines may require additional time.
Yes, the machine can be used as a standalone unit or integrated into automated production lines.
We mainly serve industries such as consumer electronics, PCB assembly, hardware manufacturing, automotive parts, household appliances, medical devices, and precision components. Our automatic screw tightening solutions are widely used in control boards, sensors, connectors, plastic and metal housings, and small mechanical assemblies, supporting both standard and customized fastening requirements.
The price depends on the model, configuration, and customization requirements. Please contact us for an accurate quotation.
