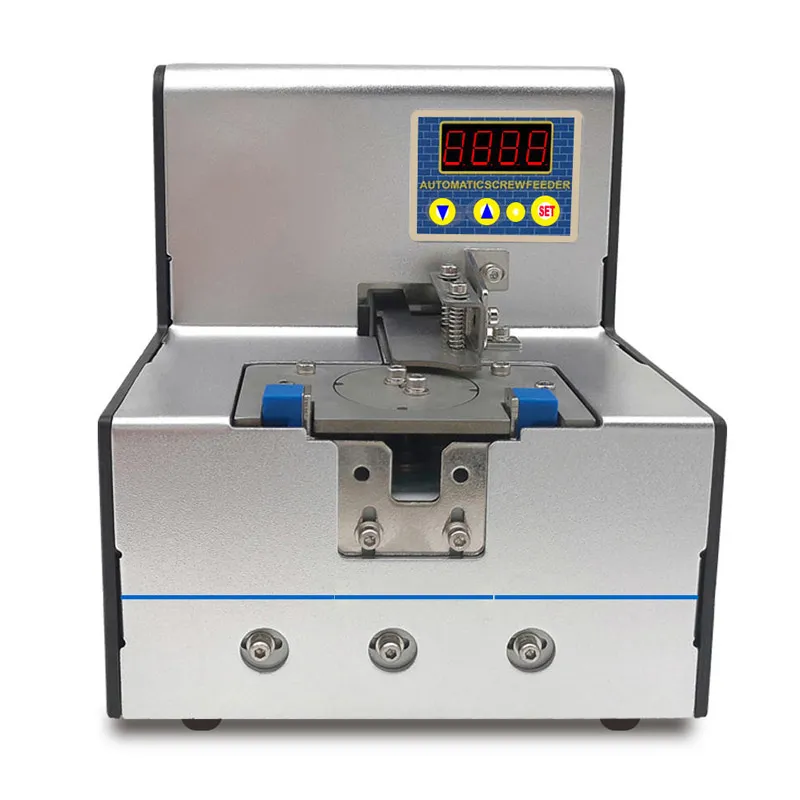

M1.0-M5.0 Automatic Screw Feeder Machine

The automatic screw feeder machine is the screw arranger used to dispense screws automatically.
The machine can be matched with automation machines and separate electric brushless screwdrivers for automatic operation. Has various types to meet different screw requirements from M1 to M5. Even special screws, such as 1:1 short screws or screws with washers, can also be applied.
The automatic screw feeding machine have many advantages, such as no need to change parts, 24-hour continuous operation, automatic alarm function when abnormal conditions occur, no screw blocking phenomenon, convenient rail adjustment, adjustable working speed, simple operation, small size, and space-saving design.

Send Inquiry Now

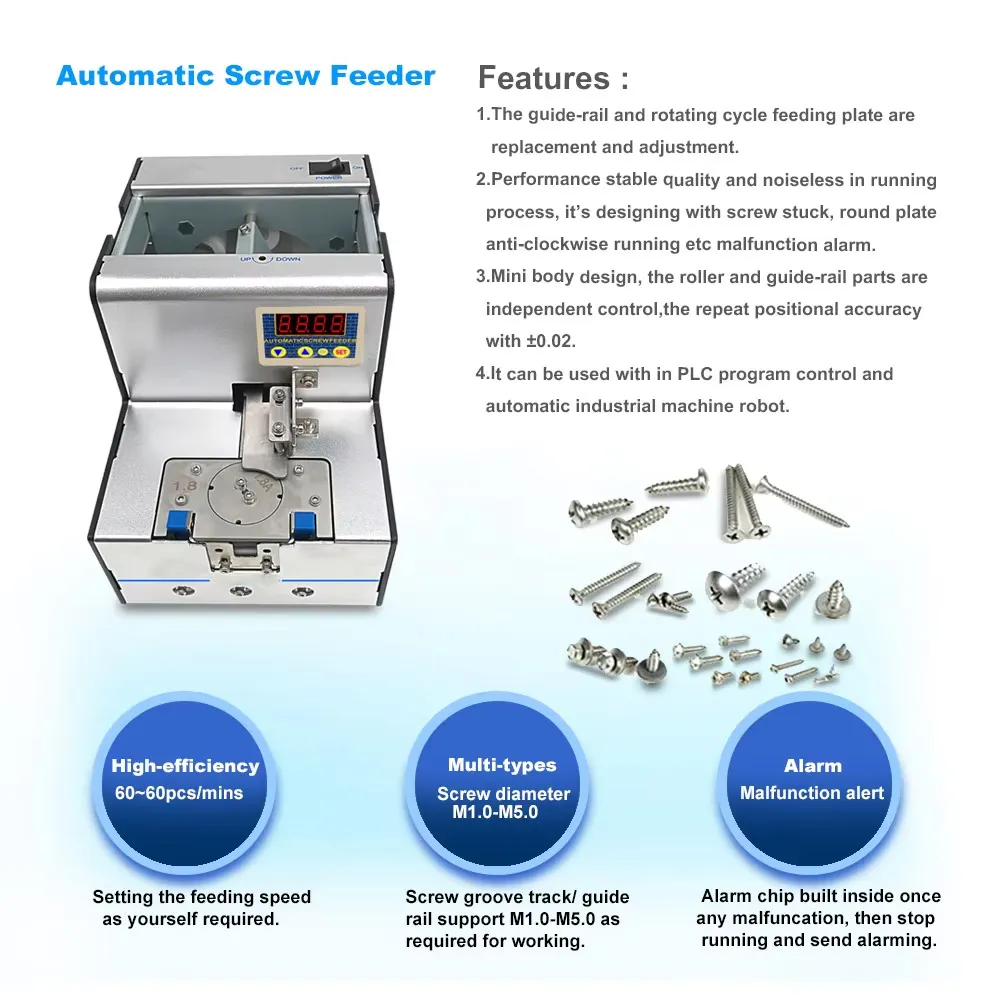

Features:

1. The automatic screw feeder machine is designing with counting function with value 0 - 9999 for setting and adjusting; also it is alarm warning function once
the value arrived the setting counting goal;
2. Screw output feeding speed with 60-90pcs/ mins, the speed can adjust easily;
3. It is easy to adjust the screw feeding speed by adjusting the vibration motor for guide-rail, it is stable without shaking once
it is arrived screw take out point;

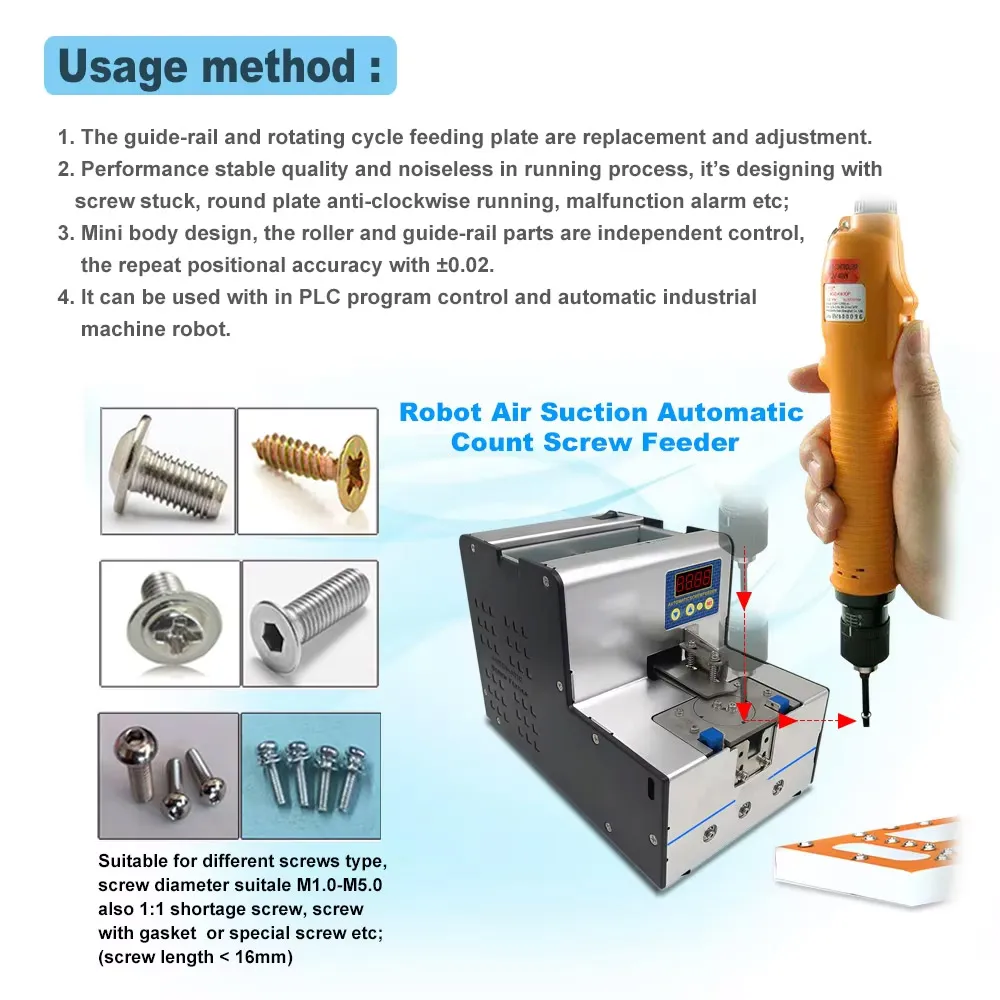

4. The automatic screw feeding machine is suitable for many kinds of screws with M1.0-M5.0(screw pole diameter) by replacing round plate with screw retention hole
and adjusting guide-rails gap, also workable with special screws with 1:1 screw, flat head screw and screw with gasket etc;

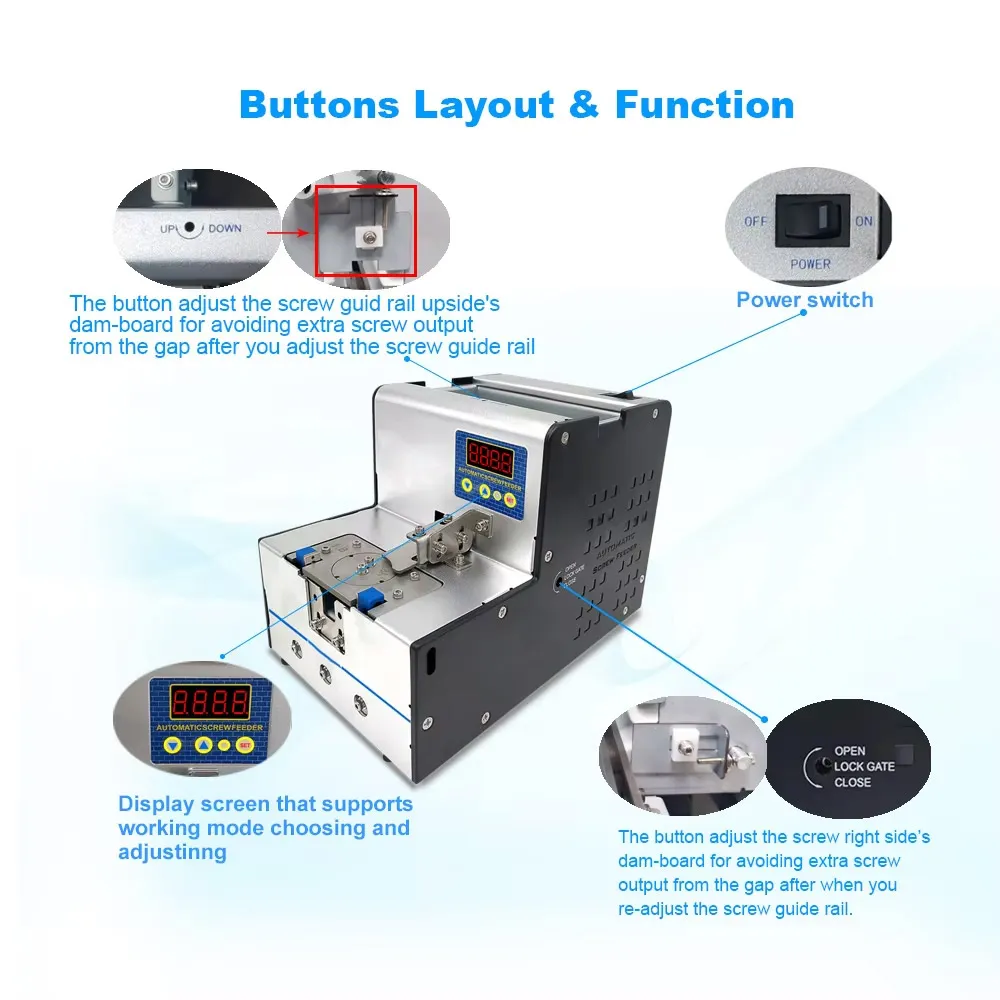

5. It is designed with malfunction alarm program, the guide-rail easy to adjust, it can be take it out for adjusting freely;

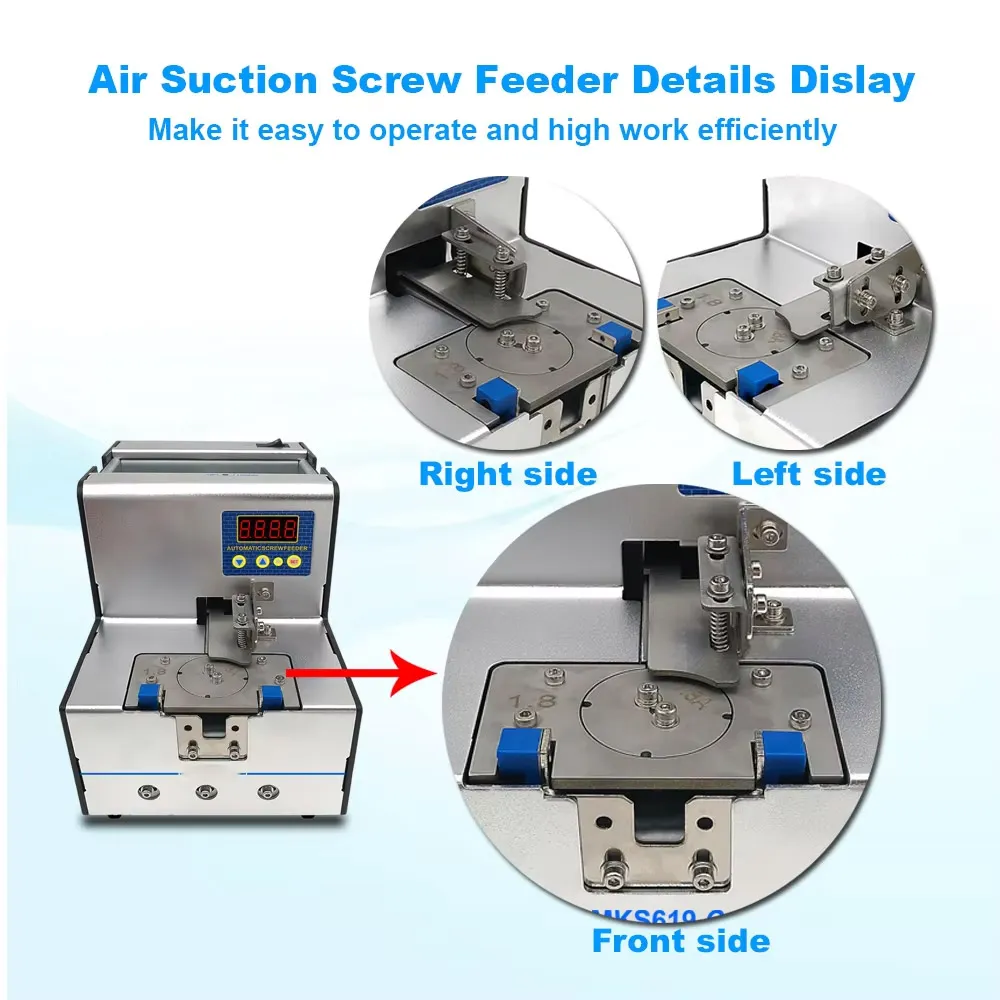

6. It is no screw stuck occurring usually, scientific designed with the feeding method by circulating roller to guide rail, also
has clearing brush hanging in upside to clear extra screw in guide-rail when it is transmission process.

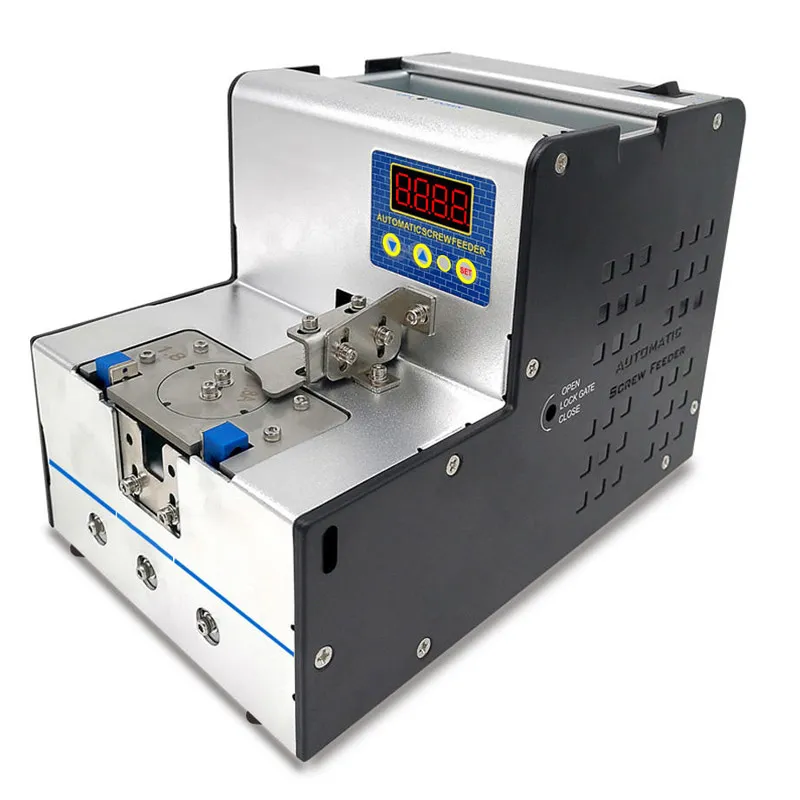

M1.0-M5.0 Automatic Screw Feeder Machine

Automatic Feeding Screw Machine Technical Parameters

Model No	XHD620-C
Power Supply	100~240VAC, 50/60Hz, 1~2A
Rated Power	20W
Screw Feeding Method	Round plate pick-up points with mechanical transmission
Screw Feeding Speed	60~90 pcs/min
Working Voltage	15V DC (500mA)
Weight	2.9 kg
Screw Capacity of Container	200 ml
Suitable Screw Diameter	M1.0 – M5.0
Workable Screw Length	≤15 mm

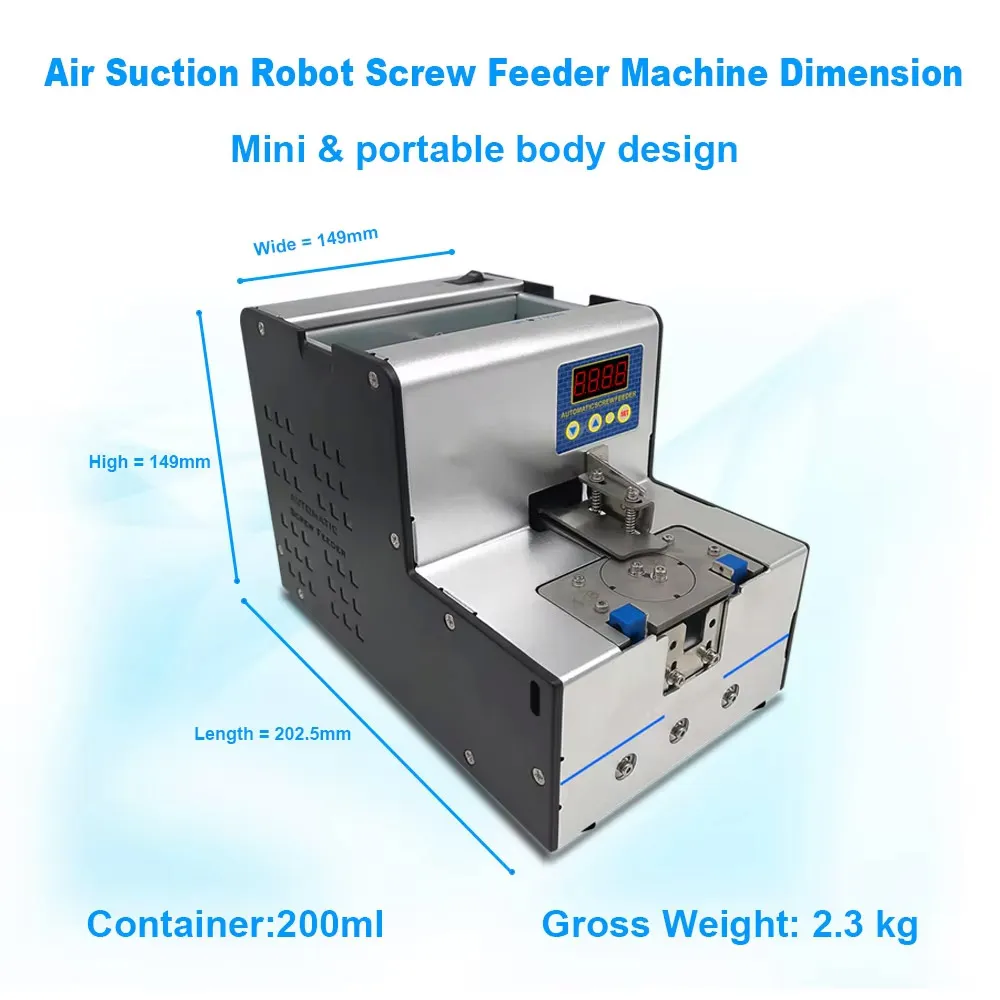

Product Size	203 × 126 × 150 mm (L × W × H)
Packaging Included	1 × Automatic screw feeding device 1 × Manual operation instruction 1 × Internal hexagonal wrench 2 × Power adapter with cable
Warranty	1 year

FAQs

We are a professional automatic screw feeder machine manufacturer with in-house R&D, assembly, testing, and quality control.

Yes, we provide both OEM and ODM services to meet customer requirements.

Yes, it supports screws from M1 to M5 (customizable for other sizes).

Standard delivery is 7–15 days.

The automatic screw feeding machine is portable and compact, making it flexible for various assembly setups. It features adjustable feeding speed, a flexible and easy-to-adjust feeding rail, and stable operation with minimal noise and no jamming. It can output information for integration with automatic screwdrivers or robotic arms, with repeated positioning accuracy of ±0.02 mm. Additional functions include screw counting and failure alerts to ensure smooth and efficient production.

Automatic screw feeding machines are widely used in electronics assembly, such as PCB boards and mobile phones, as well as in hardware assembly, small automotive parts, battery boxes, LCD panels, glass components, speakers, and other light industrial products.
