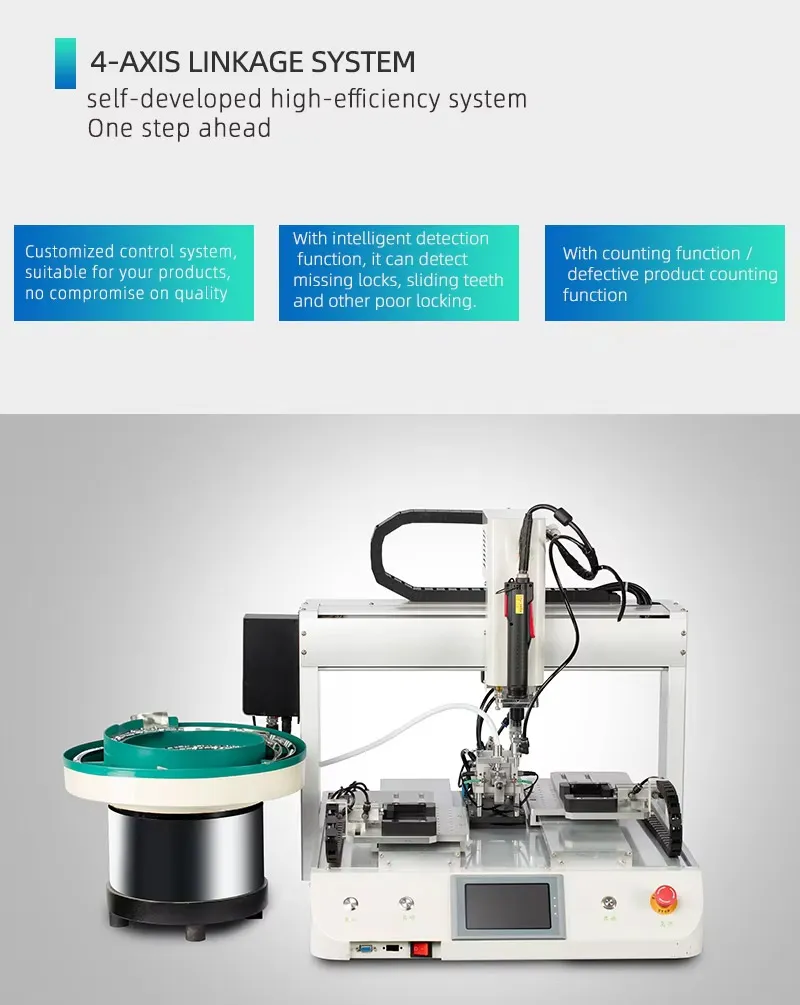

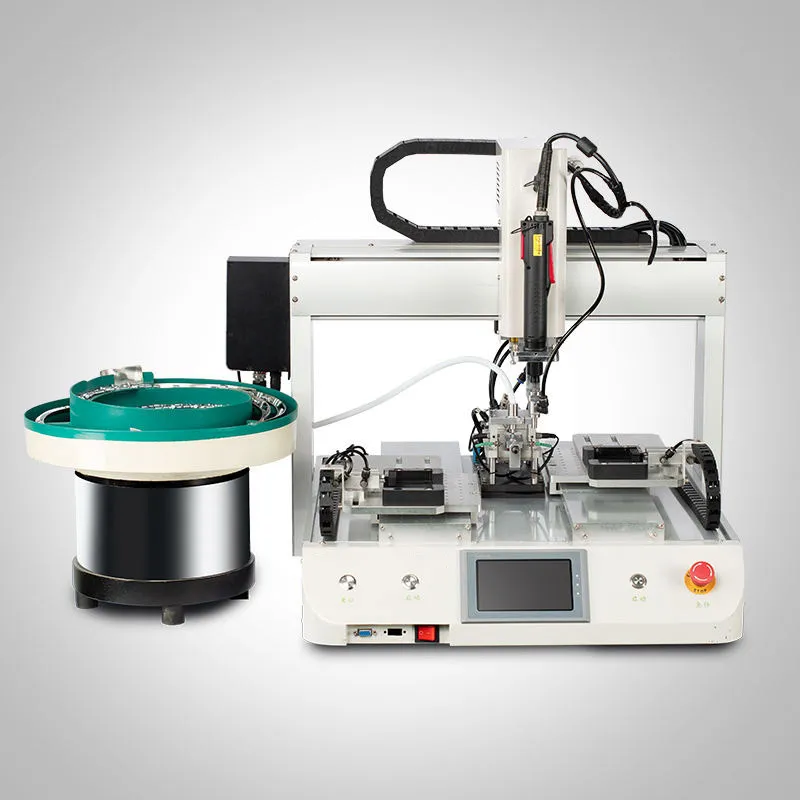

4-Axis Auto Screw Tightening Machine with Double Station

The 4 axis auto screw tightening machine is suitable for all kinds of screw fastening process on mobile phones, keyboards, monitors, car accessories, toys, small home electrical appliances, integrated circuits, printed circuit boards, LCD screen, electronic components (such as relays, speakers), etc.

Send Inquiry Now

Features:

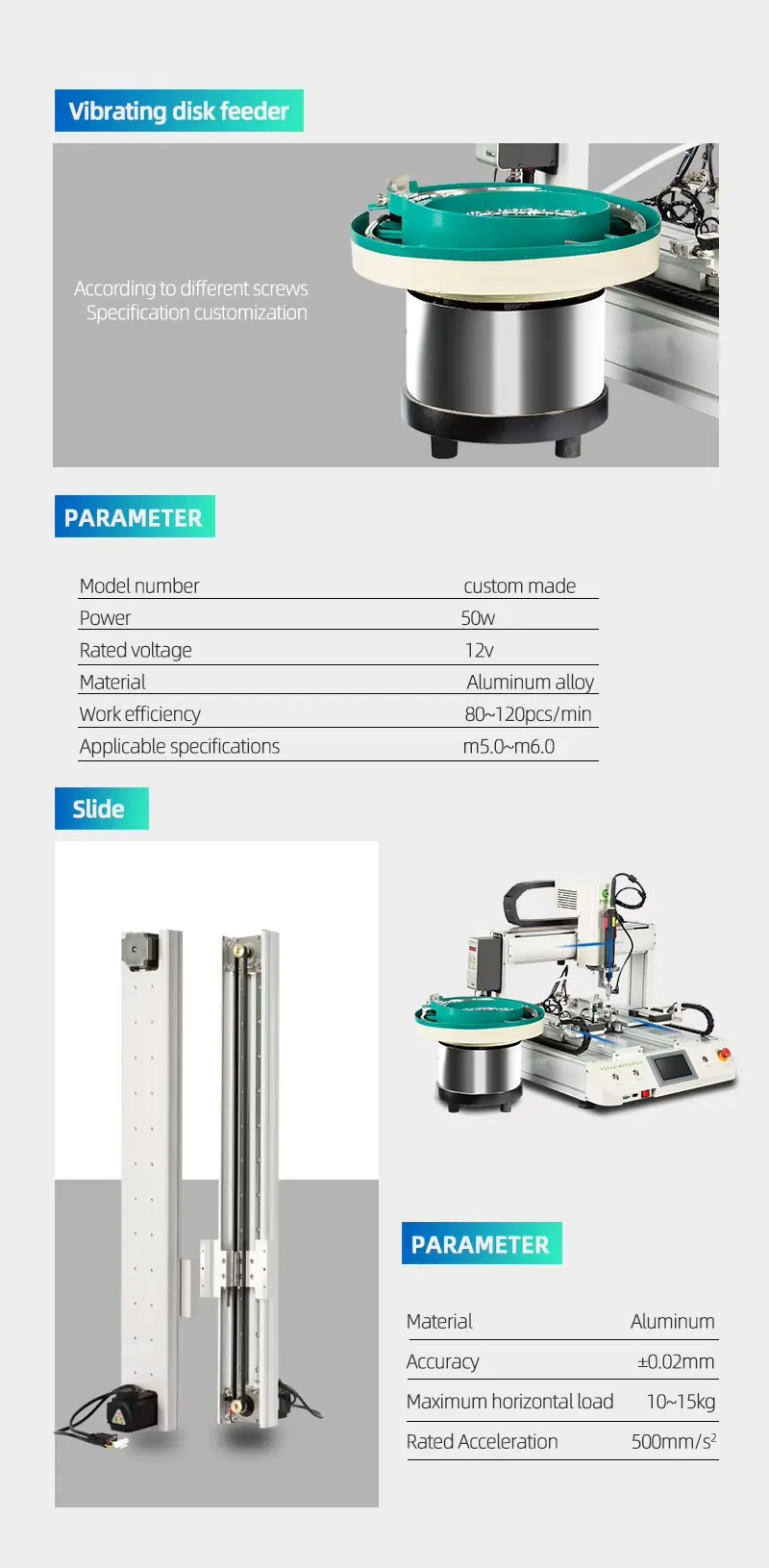

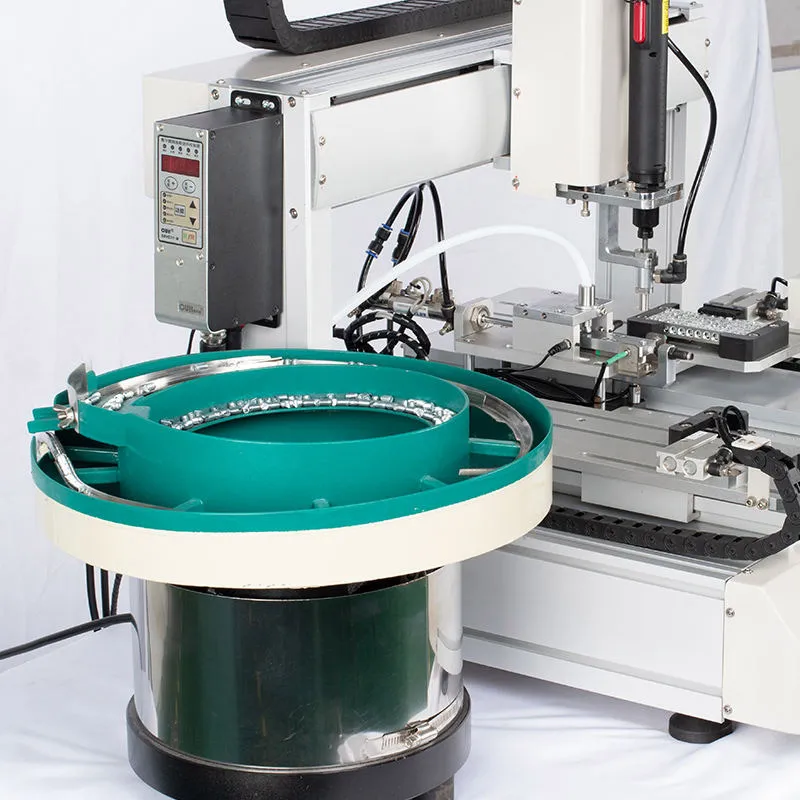

1.Multi-functional in one machine, supporting arbitrary switching between vacuum-suction and magnetic-adsorption feeding methods.

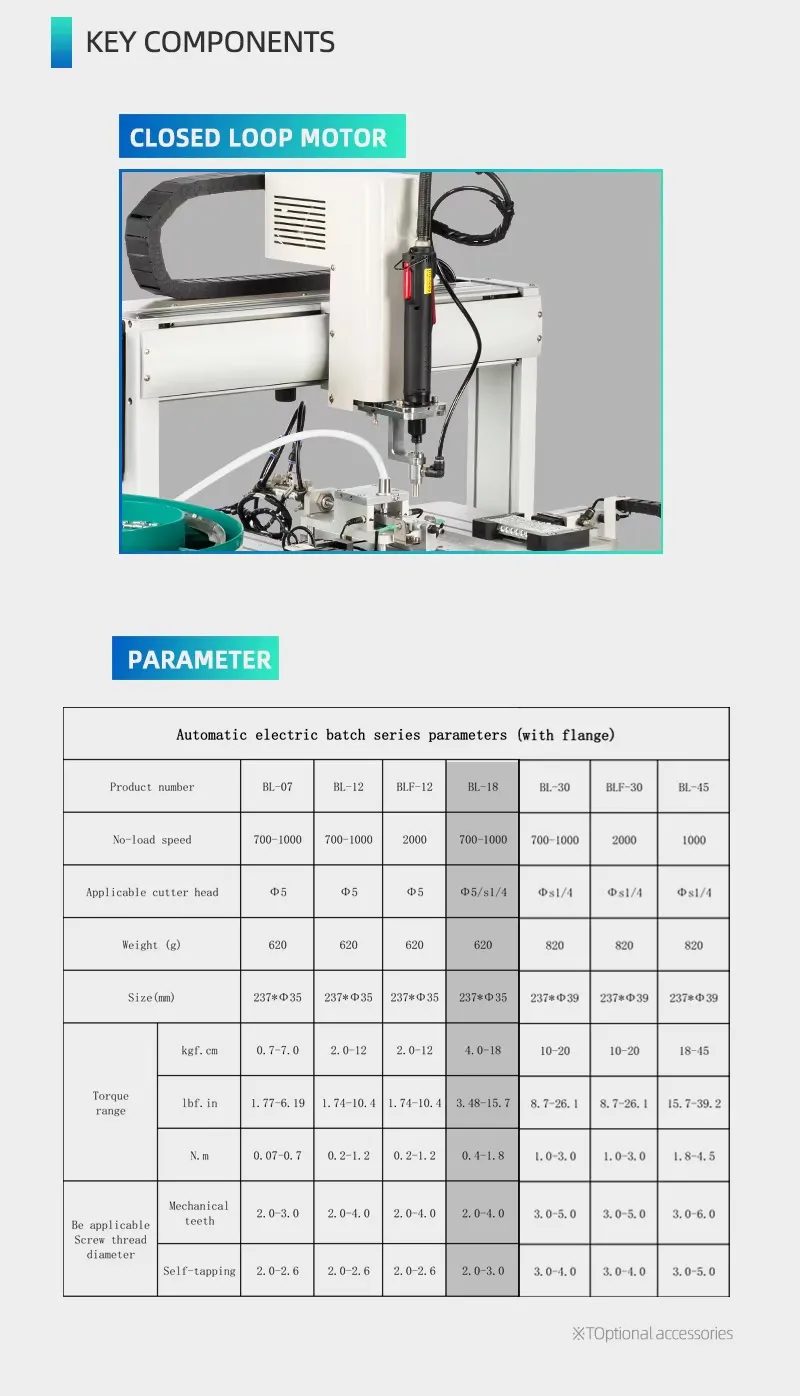

2.The intelligent servo electric screwdriver features high rotation speed, high precision, low noise, long service life, and is maintenance-free.
3.The auto screw tightening machine equipped with a 7-inch human-machine interface touch screen, it dynamically displays the fastening status and can monitor the torque and rotation speed of the electric screwdriver in real-time.
4.Equipped with a servo motor, it can perform position compensation, automatic correction, and there is no step-loss.
5.The thickened sheet-metal integrated frame has high rigidity, making the equipment more stable.

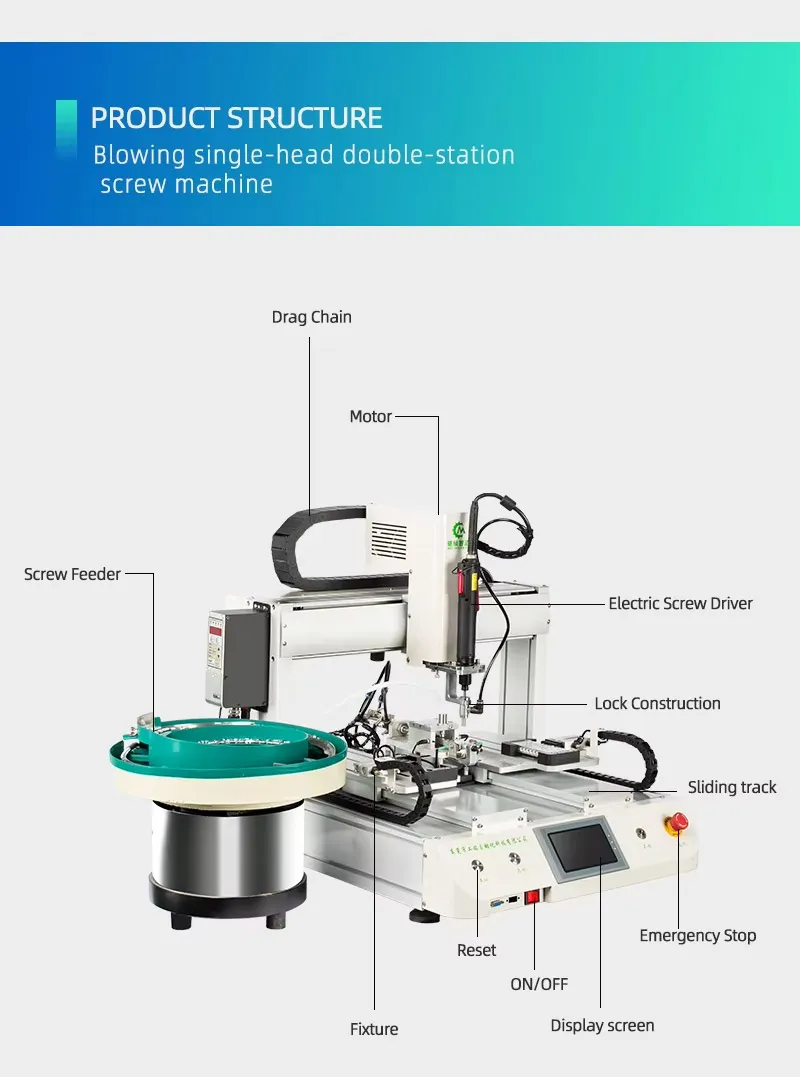

6.Single-head dual-station, with a large fastening range, can perform alternate operations, doubling the efficiency.
7.The intelligent electric screwdriver supports fastening a product with two different torques.

Paramenters

Model	XHD-DS5441
Feeder Mode	Adsorption Type

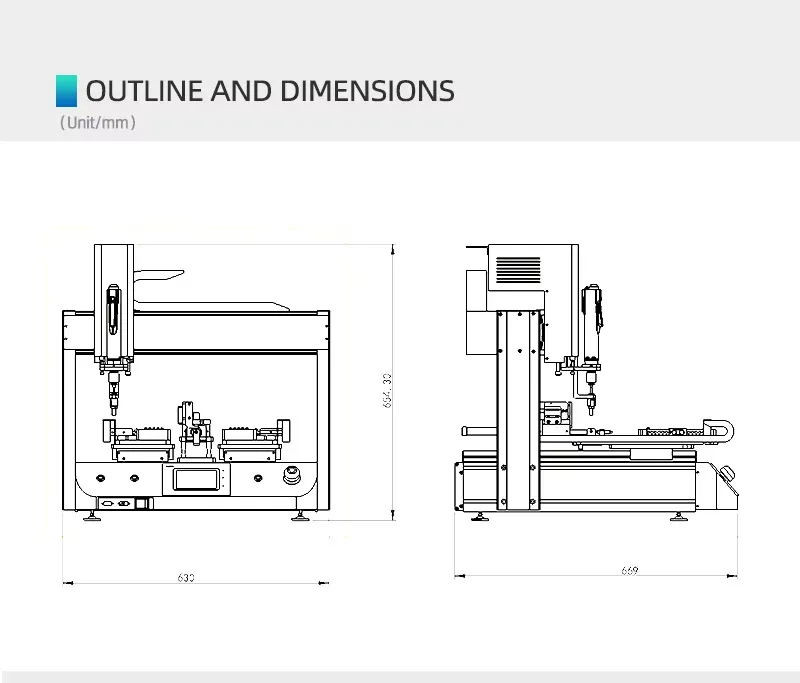

Dimension (L × W × H)	630 × 670 × 660 mm
Weight	45 kg
Operation Range (X × Y × Z)	380 × 365 × 65 mm
Axis	4 Axis (X, Y1, Y2, Z)
Driving Mode	Precision Stepping Motor + Timing Belt
Maximum Speed	X, Y: 600 mm/s; Z: 500 mm/s
Repeated Precision	X, Y, Z: ±0.02 mm
Teaching Method	Remote Teaching / Manual Data Input / Optional LCD Touch Screen
Motor System	Precision Stepper Motor
Transmission Mode	Timing Belt + Screw Rod + Guide Rail
Control Panel	Teach Pendant (Optional: PC or Touch Screen)
Torque Range	0.5 ~ 15 kgf·cm (Adjustable)
Tighten Efficiency	About 60 pcs/min (Depends on screw type)
Voltage	AC 110V / 220V, 50 / 60 Hz
External Interface	USB + RS232
Power Source	Electricity + Pneumatic
Air Pressure Requirement	0.4 – 0.6 MPa (Dry Air)
Working Temperature	5 – 40 ℃
Working Humidity	20 – 90% RH

auto screw tightening machine application

FAQs

We are a professional manufacturer specializing in auto screw tightening and fastening automation equipment with in-house R&D, production, assembly, and quality control teams.

Yes, we support both OEM and ODM projects according to customer requirements.

Yes, the single-head dual-station design allows alternate operations, significantly improving production efficiency.

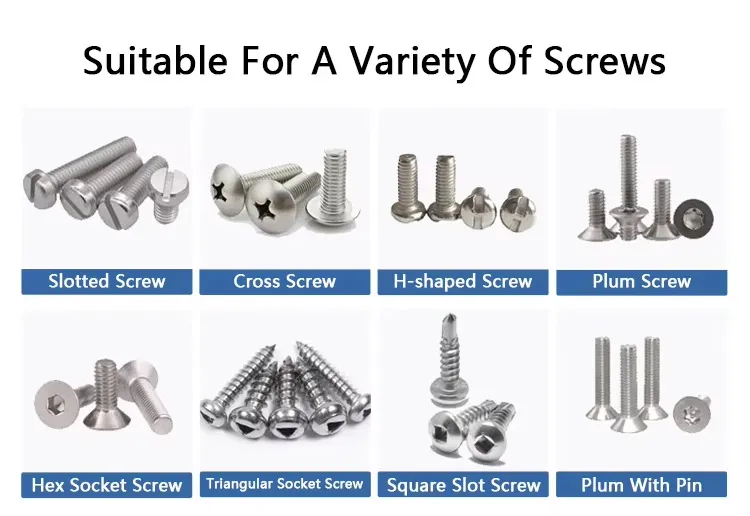

The auto screw tightening machine supports screws from M1 to M6 and can be customized for special screws such as short screws, screws with washers, or special head types.

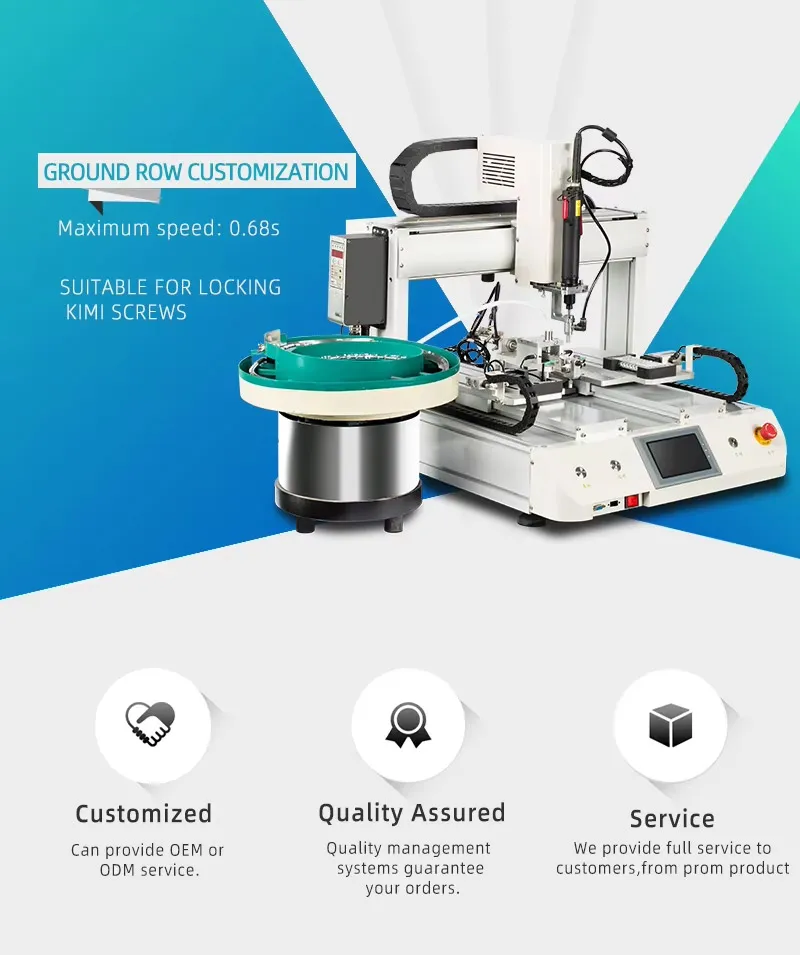

Yes, we provide full customization based on product size, screw type, production speed, and factory automation requirements.

Standard delivery time is usually 7–15 working days, depending on configuration and customization level.

Standard warranty is 12 months, with lifetime technical support.

Yes, customers can send samples for screw tightening testing and solution verification.

We offer strong technical capability, fast response service, flexible customization, stable machine quality, and competitive pricing.

An auto screw tightening machine improves production efficiency, ensures consistent fastening quality, reduces labor costs, minimizes human error, and enhances overall product reliability in assembly processes.
