Vision System

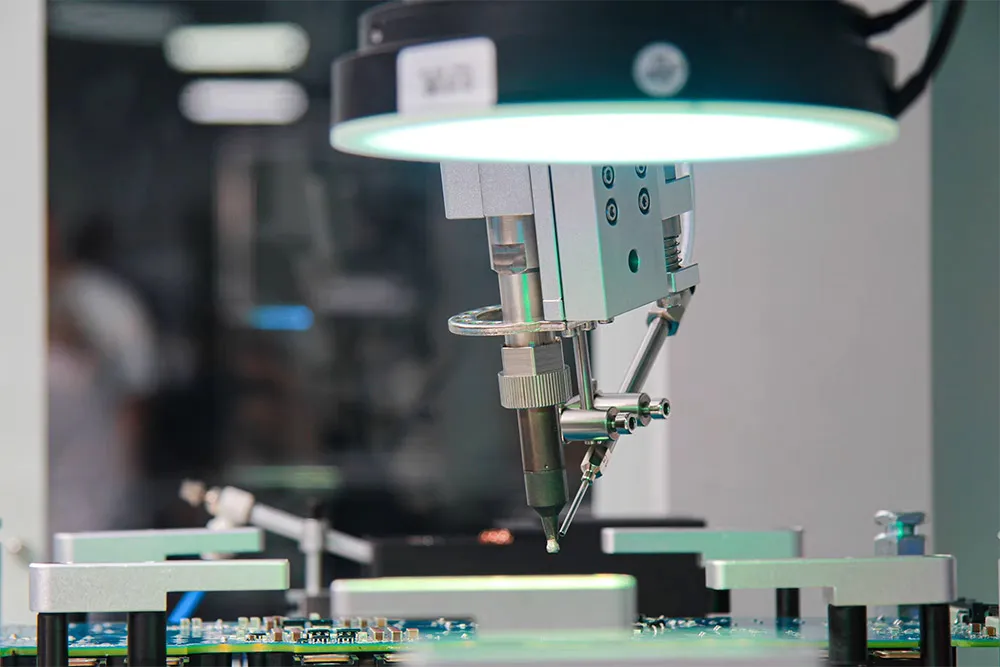

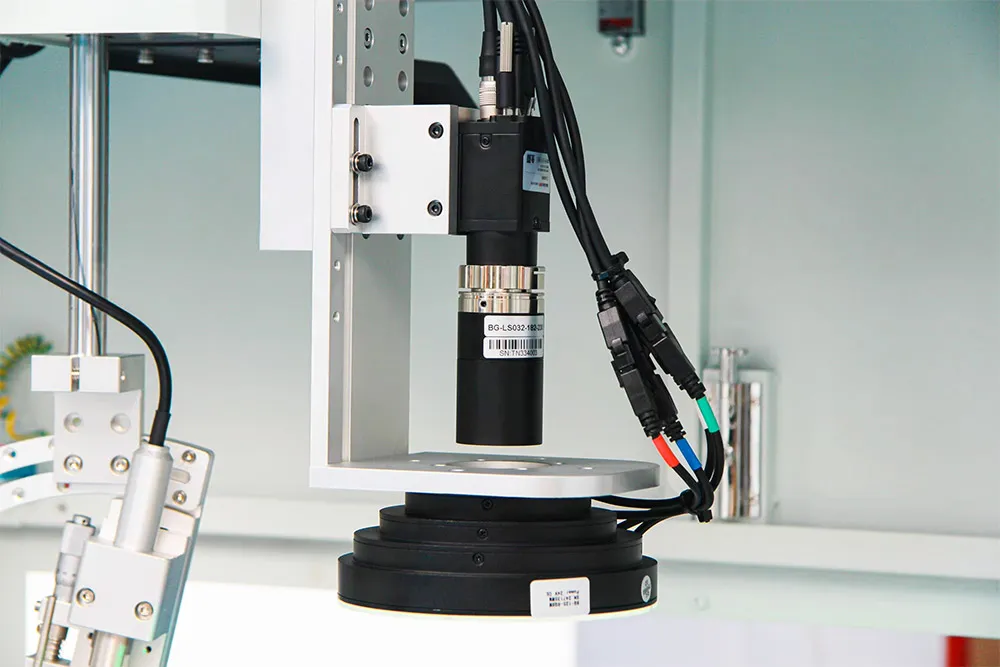

The automatic soldering machine utilizes high-resolution cameras (5MP+) with advanced image processing algorithms (0.01mm positioning accuracy) to precisely identify and locate solder joints, ensuring soldering precision and consistency.
Soldering Iron & Heating System
The auto soldering machine equipped with high-quality JIS-certified tips and PID temperature control (range: 150–450°C ±1°C), enabling stable and efficient solder melting (1–3 sec heating time).
Automatic Solder Feeder

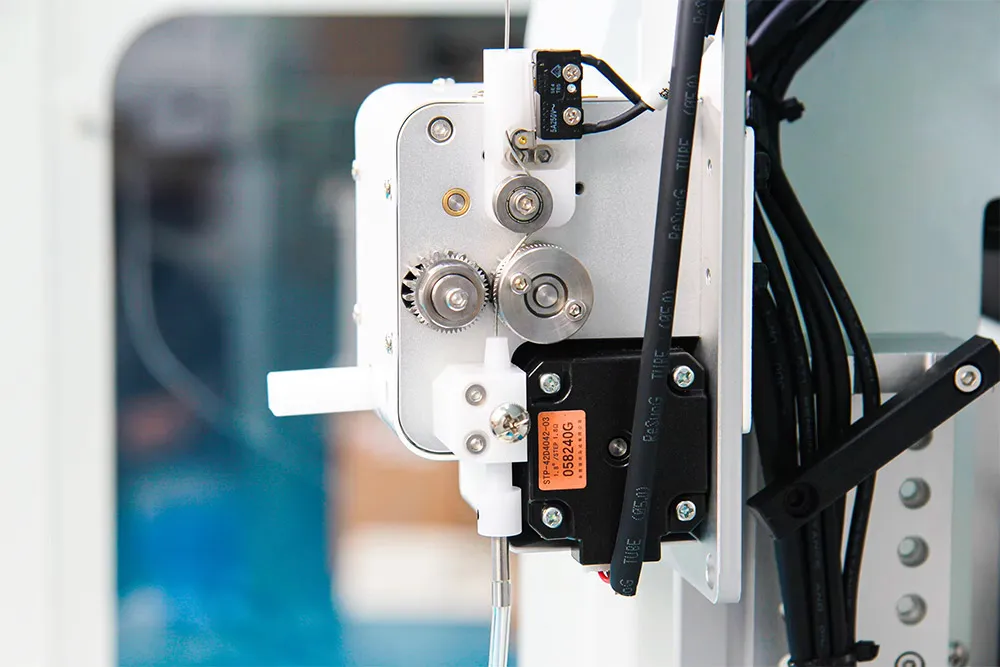

Servo-driven mechanism with closed-loop control (±0.5mm wire feed accuracy) ensures consistent solder volume during continuous operation (0.5–1.2mm wire diameter).
Control System
Industrial PC + multi-axis motion controller (EtherCAT, <1ms cycle time) provides synchronized control of all components (MTBF >10,000 hours).
Workstation & Fixturing

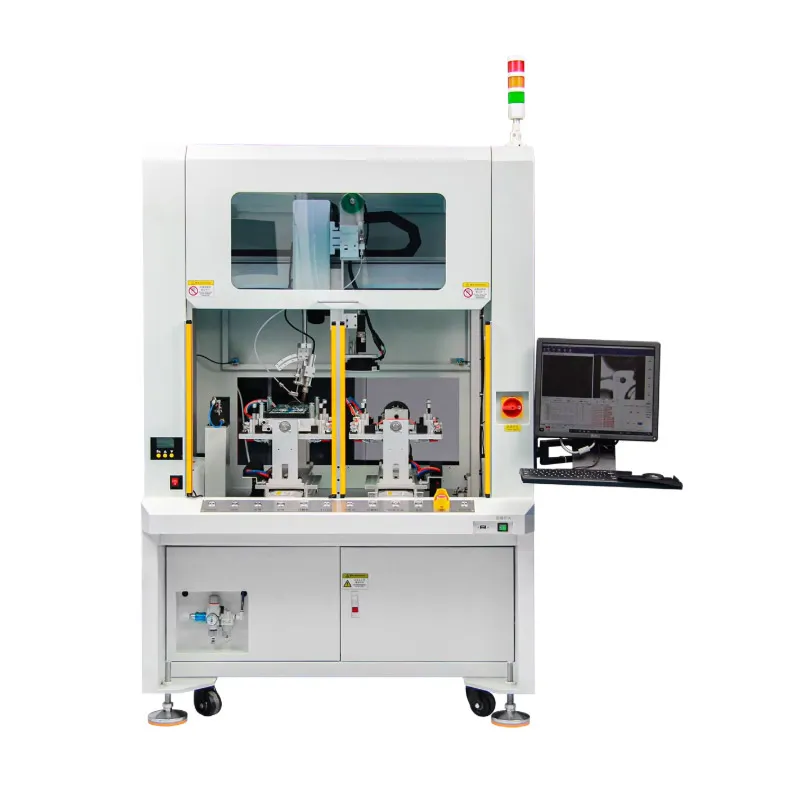

Double Y axis type,Rotary mechanism with pneumatic clamping (90° flip in 2 sec) enables dual-side soldering without manual repositioning, increasing throughput by 40%.
| Item | Specification |
|---|---|
| Soldering Travel Range | (X) 750*(Y1) 450*(Y2) 450*(Z) 100*(R1) 360° (Unit:mm) |
| Motion Speed | 0-800mm/s |
| Motor Type | Servo motor |
| Program Recording Mode | 99 groups |
| Repeatability Accuracy | ±0.03 mm |
| Control System | Motion control card + PC |
| Linear Guide | HIWIN |
| Ball Screw | TBI |
| Photoelectric Sensor | Panasonic, Omron |
| I/O Signal | 12 Inputs / 12 Outputs |
| Display Method | Display |
| Motion Graphics | Spot soldering / Drag soldering / Arc drag soldering |

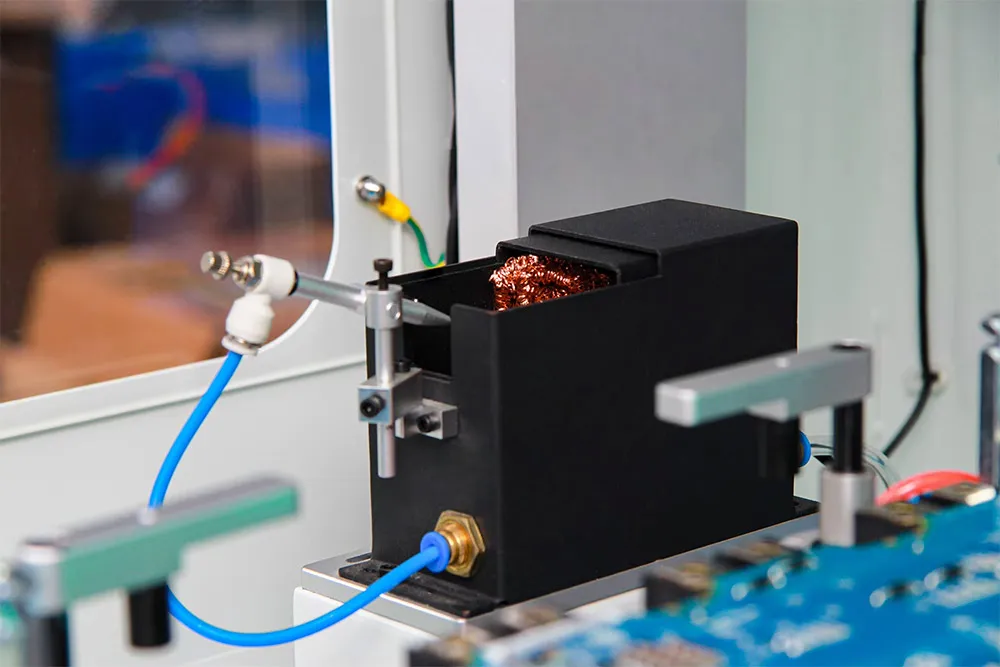

| Fume Extraction Method | Fume Extraction Fan |
| Cleaning | Automatic |
| Power Rating | 1.8KW |
| Product Positioning | Cylinder rotates 90° for pressing + Flips for dual-side soldering |
| Power Supply | AC220V / 50HZ |
| Dimensions | L1230mm * W1200mm * H1800mm |
We are a professional manufacturer specializing in automation soldering machine. We have extensive experience in automation equipment manufacturing and industrial application integration.
Usually supports 0.5–1.2 mm solder wire diameter (customizable).
The vision positioning accuracy can reach up to 0.01 mm.
The machine supports spot soldering, drag soldering, arc drag soldering, multi-point soldering, micro soldering, and selective soldering. It is suitable for various SMT and PCBA soldering applications.
Yes, we provide full customization based on product process requirements.
Standard warranty is 12 months after delivery.
Yes, all machines undergo full functional testing before delivery.
Yes, customers can send samples for soldering evaluation.
Standard machines are typically delivered within 7–15 working days. For customized machines, the lead time depends on specific technical requirements and complexity and may be longer.
The price of an automatic soldering machine depends on factors such as machine configuration, vision system requirements, soldering process complexity, customization level, and automation integration requirements. Please contact us with your product details and technical requirements so we can provide a suitable solution and quotation.
This automatic soldering machine is suitable for a wide range of industries, especially SMT and PCBA manufacturing. In the electronics industry, it is used for soldering electronic components, PCBs, and connectors. In telecommunications, it is suitable for soldering data cables, interfaces, antennas, and communication products. It is widely used in home appliance manufacturing for soldering control boards in air conditioners, refrigerators, and washing machines. In the automotive sector, it is applied to automotive electronics, sensors, and navigation systems. It is also suitable for the energy storage industry, including energy storage PCBs, inverters, and converters.
If you have any questions or require a quote, please leave us a message. Our experts will respond within 24 hours and help you choose the right automation solution.
