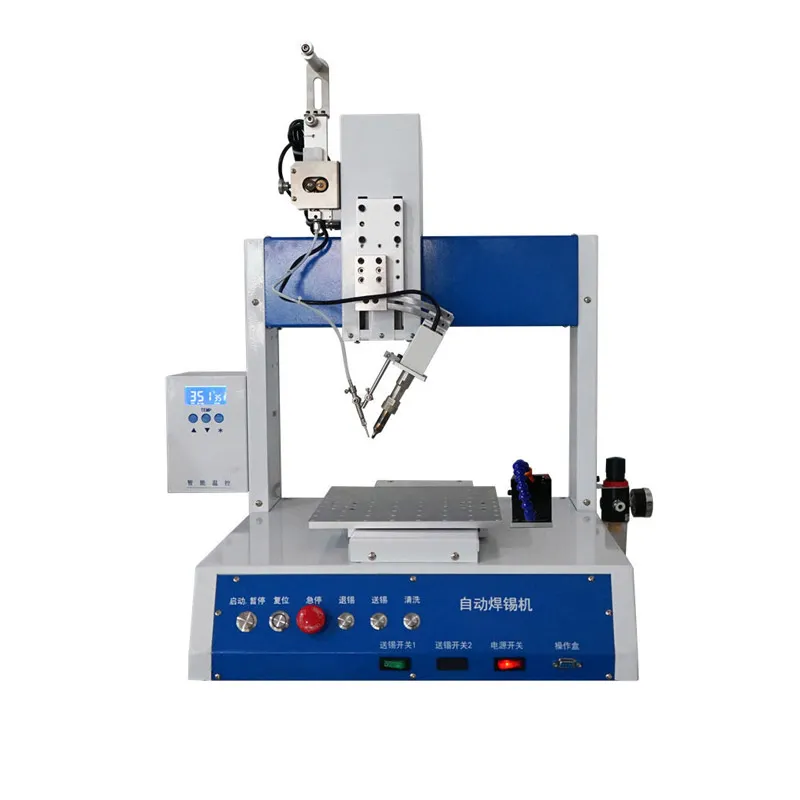

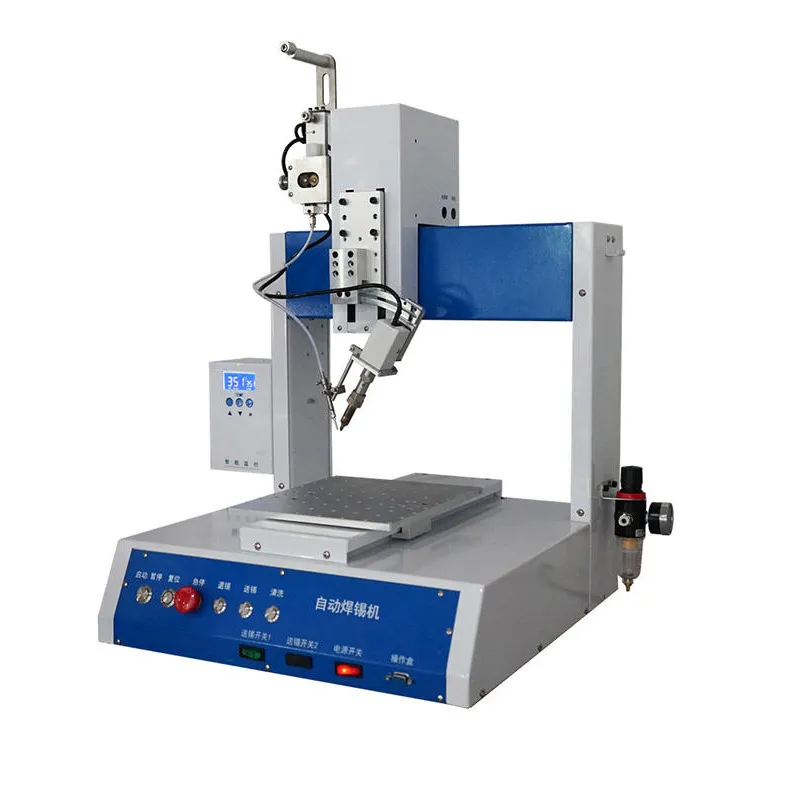

Automatic Point Soldering Machine

Features:

1. Simple programming mode, convenient handheld teaching programming, can be directly input coordinates, can be teaching points, can also be CAD import And so on to find the solder joint coordinates.
2. The automatic point soldering machine adopts a multi-axis manipulator and a real-time motion control algorithm for coordinated movement, simulating manual tin-feeding actions and effectively improving the positioning accuracy of the soldering tip.
3. Powerful storage function, which can be processed for different products.
4. The automatic soldering machine with spot welding, drag welding, shaking and other functions, different process parameters can be set according to welding spot requirements.
5. High frequency eddy current heating temperature control, rapid temperature return, more accurate temperature control.
6. Broken tin feeding is optional and can be equipped with wuxi tin alarm function.
7. Detailed design, handle fixture with spring buffer, fine tuning, reduce the damage to the welding plate.
8. It has the functions of position correction, insertion array, etc., and the programming operation is simple.
9. With its own cleaning function, it can automatically clean the tip of the soldering iron, clean with electric brush and blow tin by pneumatic.
10. Simple operation, one person can operate multiple machines, effectively improve efficiency.

Paramenters:
