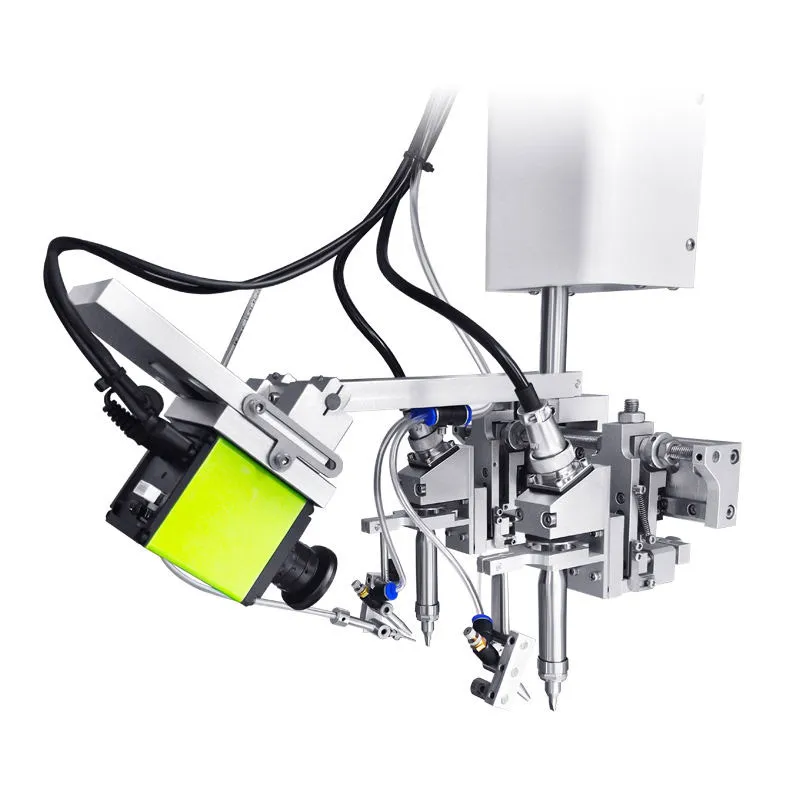

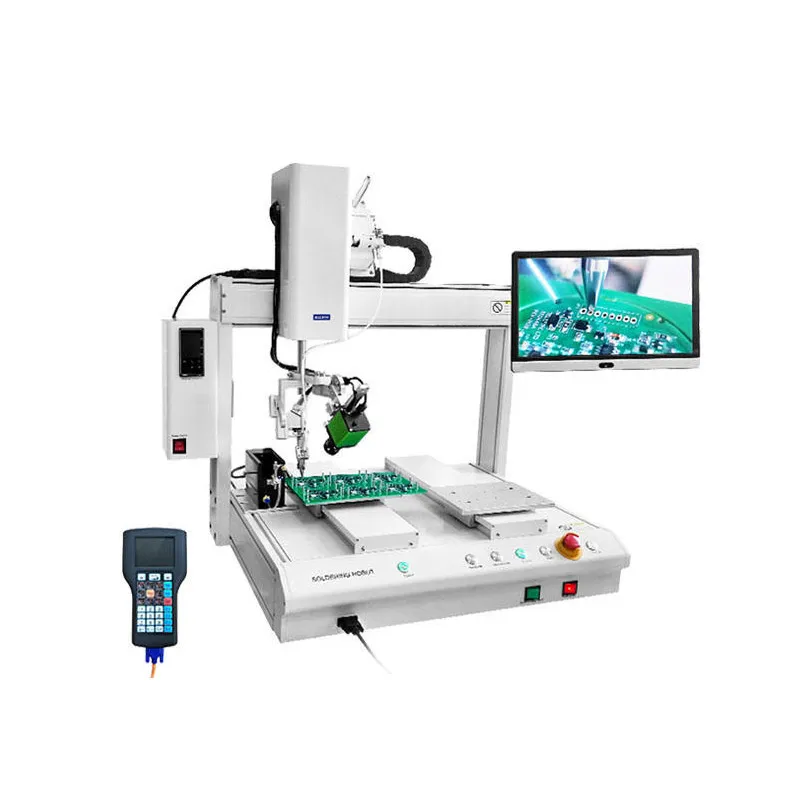

The Automatic Soldering Machine is developed for reliable and repeatable soldering performance in SMD/SMT and PCB assembly applications. The CCD vision system improves positioning accuracy, while the double-station structure allows loading and soldering to run alternately to reduce idle time.
It is mainly used for process processes and solder processing that are difficult to achieve in reflow soldering and wave soldering. It is especially suitable for mixed circuit boards, heat sensitive components, and sensitive devices in the SMD/SMT back-end process. Welding, widely used in PCB board welding line, charger plug welding, connector soldering, DC end tin, LED light strip connection and other fields.
| Model | S331R | S441R | S551R | S531R |
|---|---|---|---|---|
| Stroke S | 300mm | 400mm | 500mm | 500mm |
| Stroke S | 300mm | 400mm | 500mm | 300mm |
| Stroke S | 0mm | 0mm | 0mm | 300mm |
| Stroke S | 100mm | 100mm | 100mm | 100mm |
| Rated Speed Max | 500mm/s (X-Y-Z) | 500mm/s (X-Y-Z) | 500mm/s (X-Y-Z) | 500mm/s (X-Y-Z) |
| R-axis | 360° | |||
| Repeatability | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
| Drive Method | Stepper Motor / Servo + Timing Belt / Ball Screw | |||
| Control System | Programming Method,CCD control system | |||
| Operation Mode | Teaching Pendant / PC | |||
| Usable Graphics | Spot Welding, Drag Welding, Arc Welding, Shake Welding, Shake Brazing | |||
| Program Capacity | External Connection Method | |||
| Communication Interface | RS232 | |||
| Power Supply | 220V / 50Hz | |||
| Input Power | 4–7 kgf/cm² | |||
| Solder Wire Diameter | 0.3–1.6mm | |||
| Heating Power | 90W | |||
| Heating Rate | 10–20s | |||
| Temperature Range | 0–500℃ | |||
| Overall Dimension (L×W×H) | 590×520×603mm | 690×690×603mm | 790×790×603mm | 790×520×603mm |
| Machine Weight | Approx. 55kg | Approx. 55kg | Approx. 75kg | Approx. 45kg |
We are a professional manufacturer specializing in automatic soldering and automation equipment with 20+ years of industry experience.
Yes, we support OEM and ODM customization based on customer requirements.
The machine supports multiple soldering processes including spot soldering, drag soldering, arc soldering, shake soldering, and shake brazing, which allows it to meet different SMD/PCB and electronic component soldering requirements.
Usually supports 0.5–1.2 mm solder wire (customizable).
Each machine undergoes strict quality inspection and full function testing before shipment.
Yes, we can customize soldering solutions based on product samples, or process requirements.

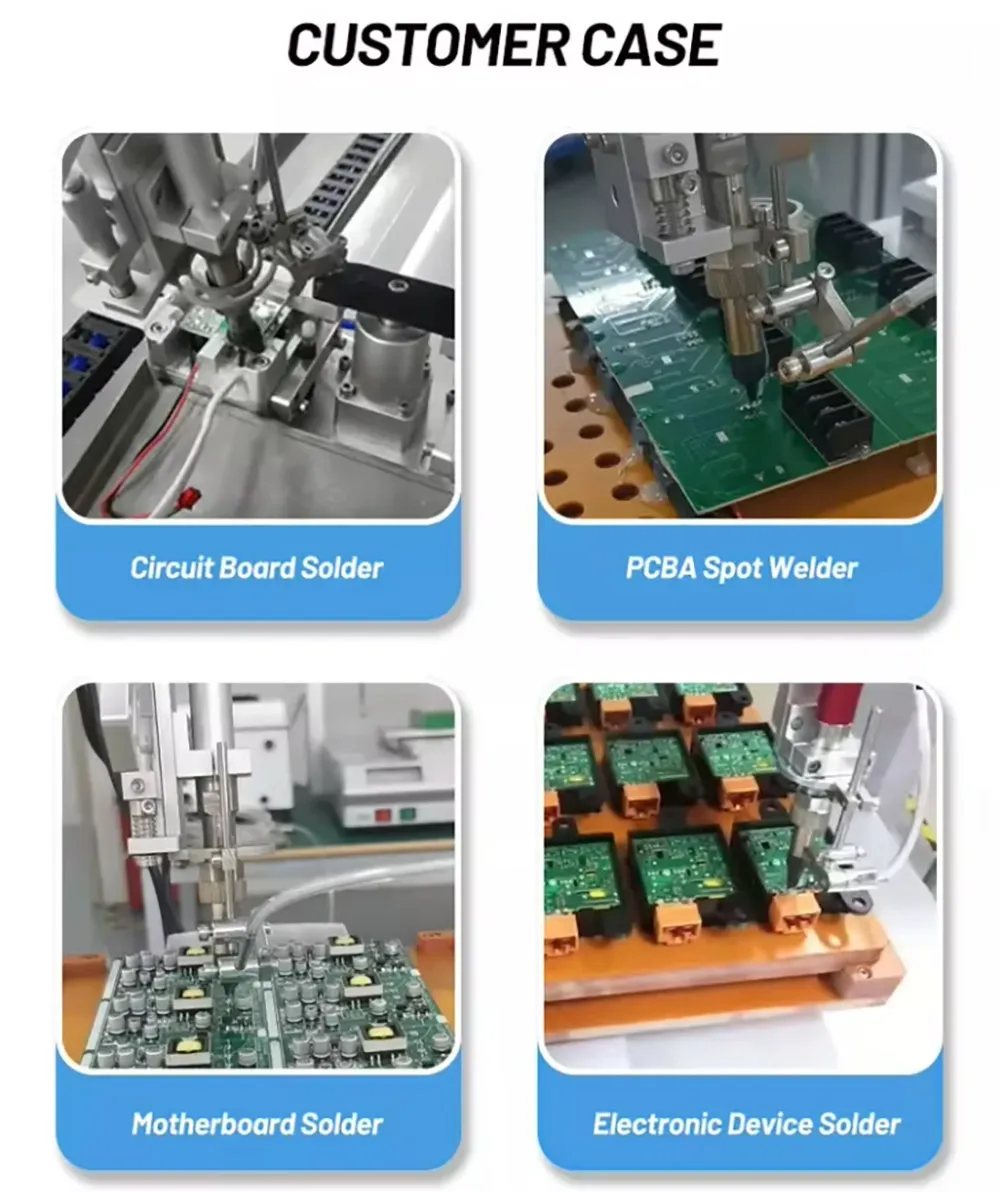

The automatic soldering machine is widely used for welding all kinds of plug-in electronic components such as capacitors, resistors, plugs, shield boxes, etc., as well as various electronic connectors, LED lamp posts and light strips, video cable plugs, audio cable plugs, RF cable plugs, sockets, headphone cables, computer cables, USB cables, power lines, and small circuit boards.
Yes, we provide remote technical guidance, and on-site installation can be arranged if required.
Standard machines usually take 7–15 working days. Customized machines may take longer.
The price depends on machine configuration and customization requirements. Please contact us with your product details or technical requirements to get an accurate quotation.
If you have any questions or require a quote, please leave us a message. Our experts will respond within 24 hours and help you choose the right automation solution.
