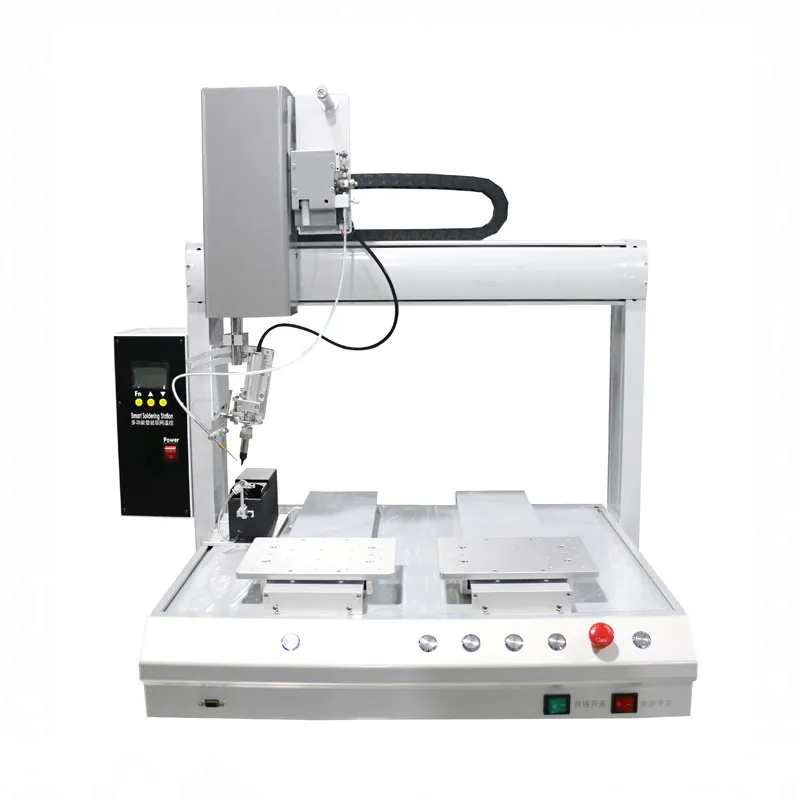

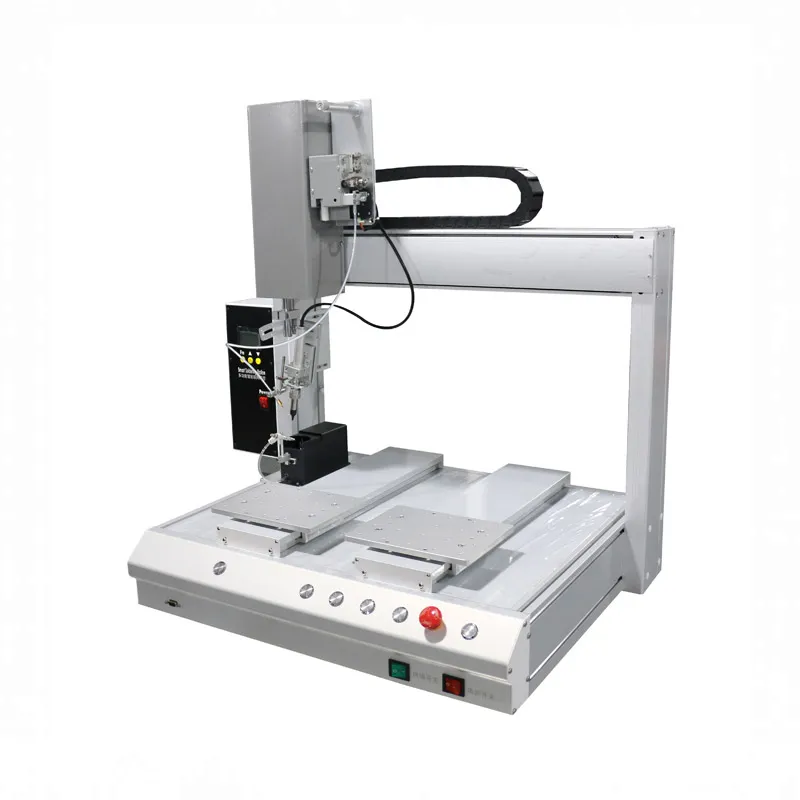

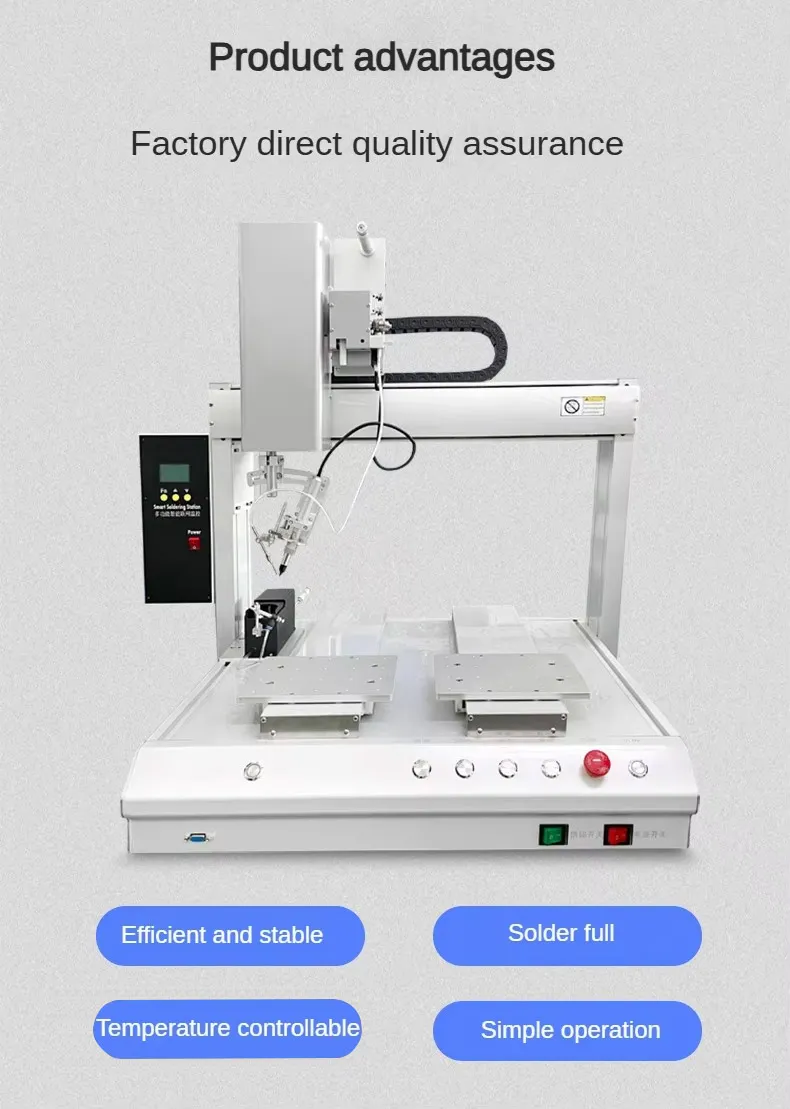

The automatic wire soldering machine offers dual-station operation for efficient welding and loading, precise temperature control (50-500°C), and automatic tin feeding. It features a high-rigidity body structure, CNC precision machining, and an aluminum alloy sandblasted surface for durability. The automatic soldering machine equipment supports spot and drag welding modes, multi-program storage, and is ideal for PCB, LED, USB,HDMI cable,mobile data cable and connector soldering tasks.
| Model | XHD-AS4002Y |
|---|---|

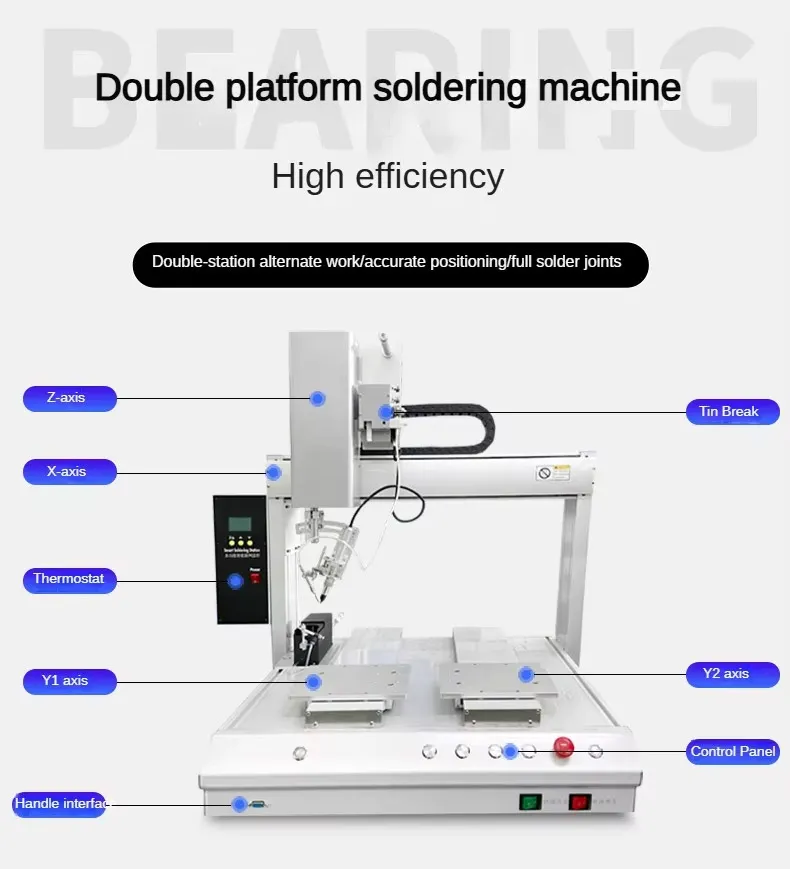

| Working Area | X400mm*Y1/400mm*Y2/400mm*Z120mm*R360° |

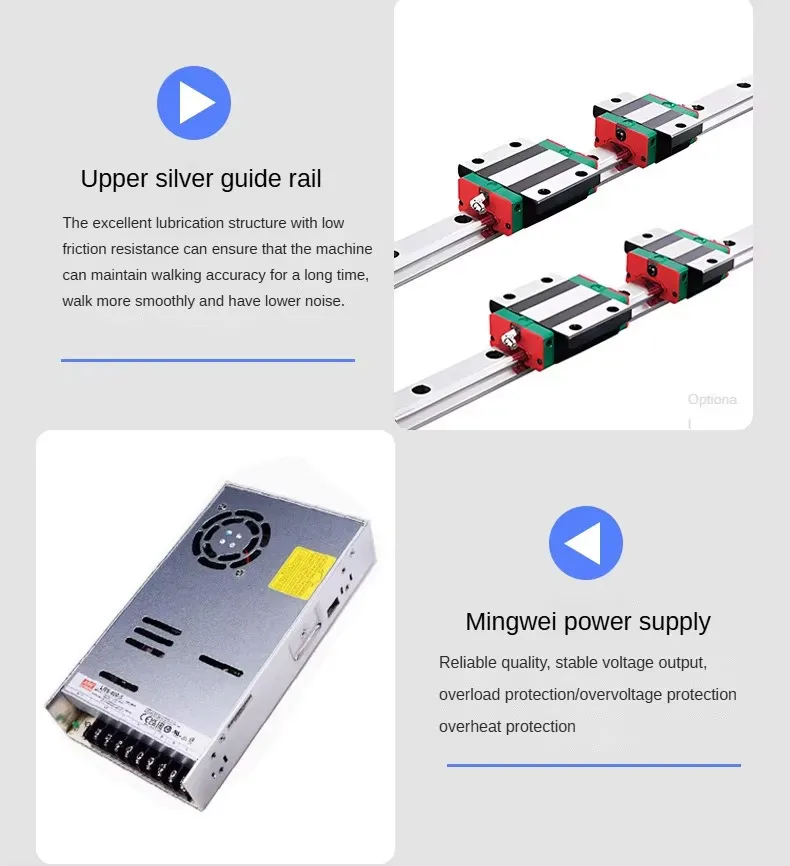

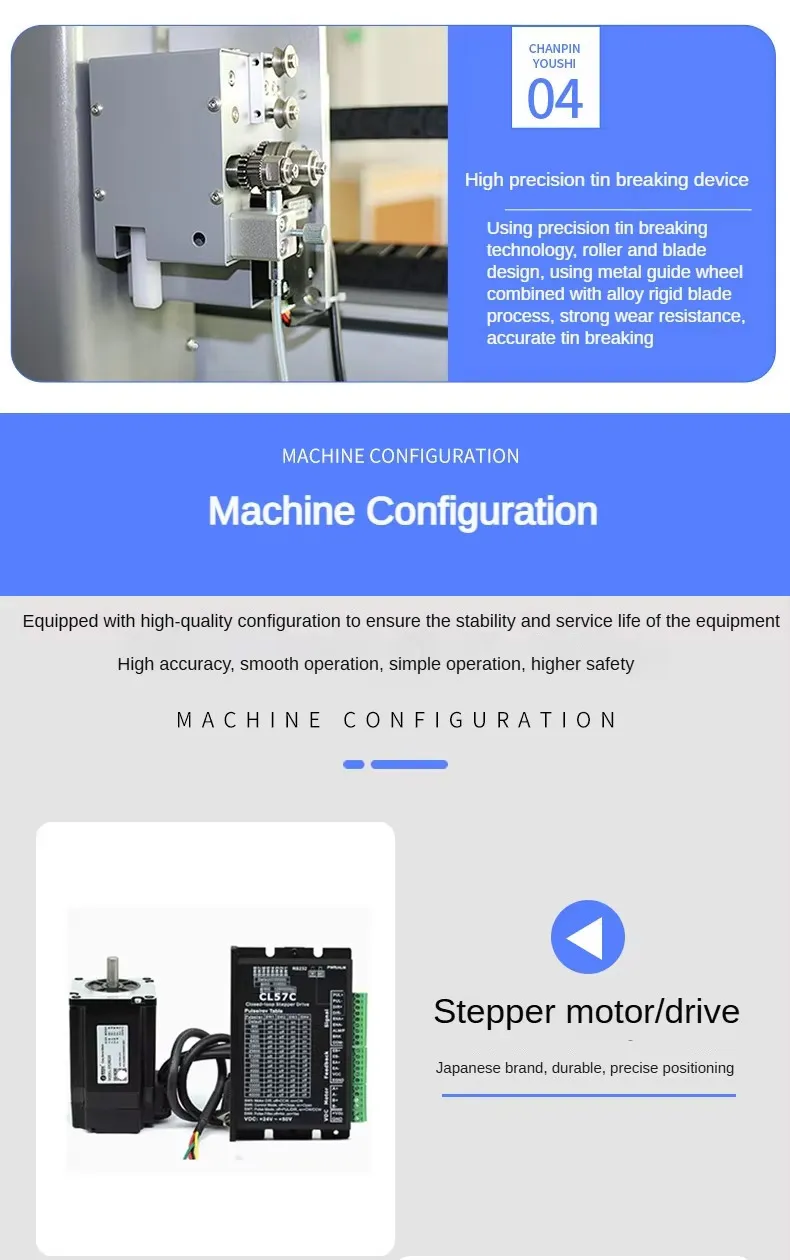

| Drive Mode | Stepping motor + straight guide / servo motor + ball screw (optional) |
| Positioning Accuracy | ±0.01~0.03mm |
| Programming Mode | Teaching screen |
| Temperature Control System | 1 high frequency intelligent constant temperature welding table, welding table with automatic temperature compensation, abnormal temperature alarm function |
| Automatic Tin Feeder | 1 unit |
| Cleaning Cylinder | 1 unit |
| Temperature Setting Range | 0–500℃ |
| Automatic Temperature Compensation | Yes |
| Cleaning Method | Air blowing cleaning |
| Applicable to Tin Wire Range (Outside Diameter) | Ø0.3~1.6mm |
| Full-voltage | 220V 50HZ |
| Dimension (W*D*H) | 610*690*845mm |
| Machine Weight | 90kg |
We are a manufacturer specializing in automatic soldering machine equipment with over 20 years of industry experience.
Yes, we support both OEM branding and ODM customization based on customer requirements.
Yes, we can customize fixtures, soldering programs, working range, and feeding systems.
Commonly supports 0.3~1.6mm solder wire (customizable).
Yes, supports point soldering, drag soldering, and customized soldering paths.
The automatic wire soldering machine can be configured with 3-axis, 4-axis, or 5-axis motion systems depending on the soldering application and product structure. Customized multi-axis configurations are also available for special process requirements.

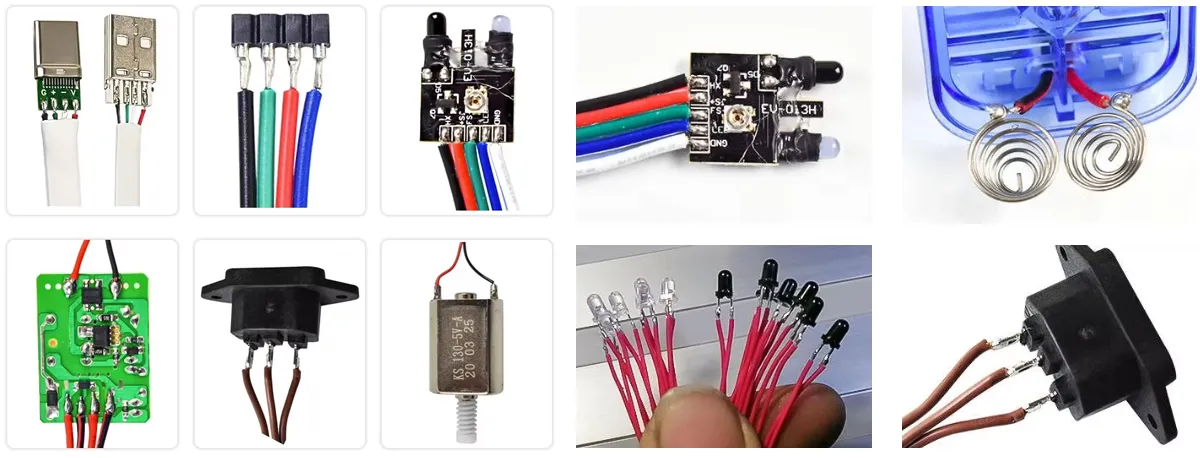

Electronics, automotive electronics, home appliances, communication equipment, LED products, and wire harness manufacturing. Applications include PCB circuit board soldering, LED display and wire soldering, micro motor welding wire, USB interface soldering, charger plug soldering, connector soldering, DC terminal soldering, LED strip connection, SMT back-end soldering, and soldering of thermal and sensitive mixed circuit components.
Each machine is tested before shipment, including function test, aging test, and soldering sample verification.
Yes, we provide operation manuals, videos, and remote technical support.
Yes, we provide remote training and operation guidance for operators and engineers.
Standard warranty is 12 months after shipment.
Price depends on configuration, customization level, and optional functions. Please contact us for a quotation.
