This automatic soldering machine is an ideal solution for electronics manufacturers seeking to enhance their soldering processes with speed and precision.

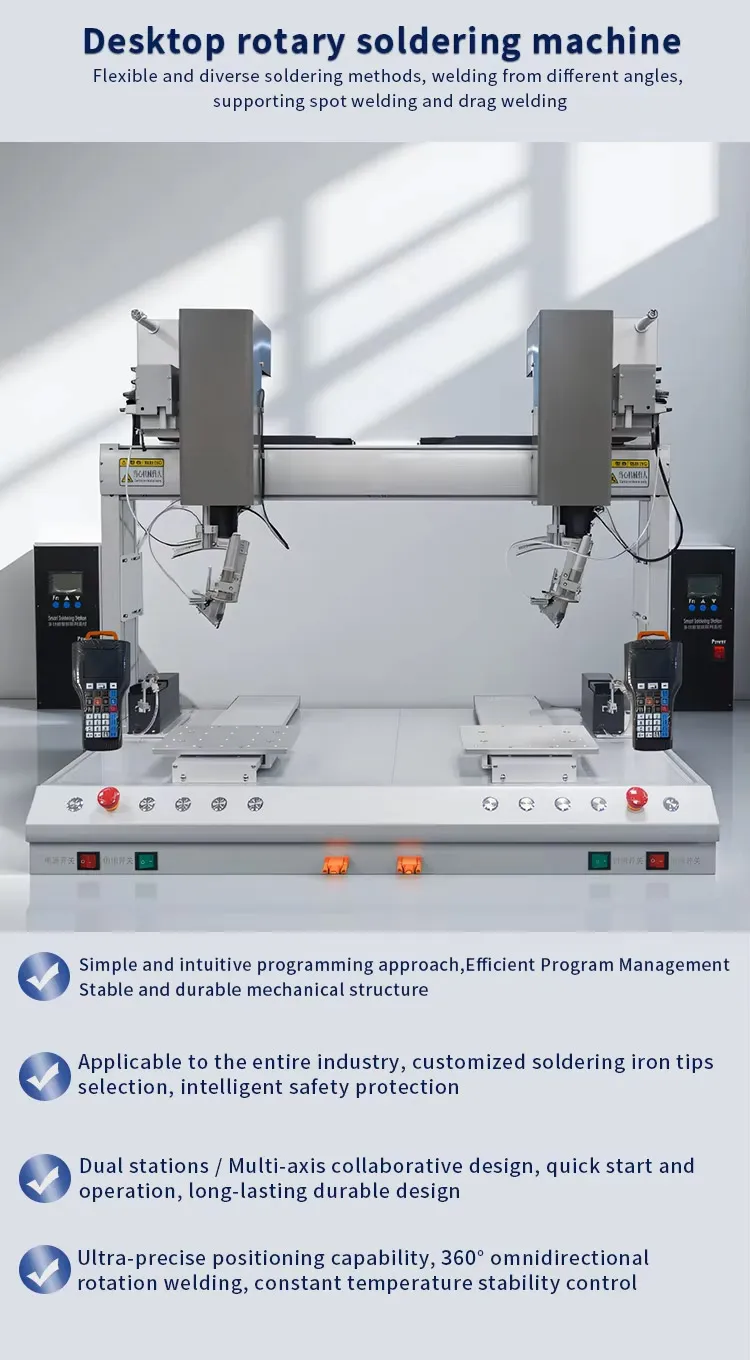

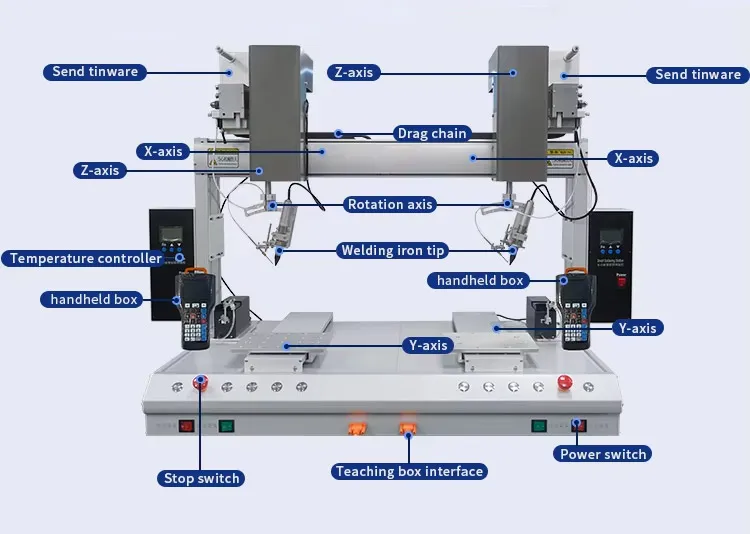

The auto soldering machine is built around a dual-efficiency structure designed. The double-head configuration enables two soldering operations to run simultaneously or independently. Combined with the double-station design, the machine allows loading and soldering to operate at the same time, ensuring continuous workflow and minimizing operator waiting time.

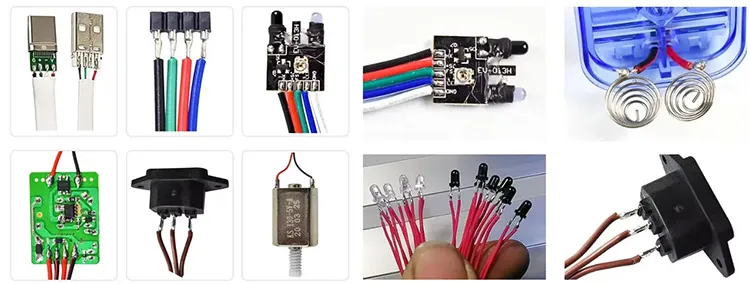

The automatic soldering machine widely used in SMT/PCBA manufacturing, consumer electronics assembly, automotive electronics, LED lighting, communication devices, connectors, wire harness soldering, and control board production. It is suitable for soldering tasks involving fine-pitch components, heat-dissipating PCBs, and products requiring consistent solder joint quality.
| Model | XHD-6331HX (Dual soldering systems) | ||
|---|---|---|---|
| Voltage | AC 110/220V 50/60HZ | ||
| Power | 700W | ||
| Movable Range | X 500mm | ||
| Y1/Y2 300mm | |||
| Z 100mm | |||
| R 360° | |||
| Max Moving Speed | X 600mm/s | ||
| Y1/Y2 600mm/s | |||
| Z 400mm/s | |||
| R 300°/s | |||
| Repeat Positioning Accuracy | ±0.02mm (X*Y*Z), ±0.05° (R) | ||
| Maximum Load Weight | 8KG (For Work Platform) | ||
| Programming File Capacity | 256MB, up to 999 files, single file up to 1000 points | ||
| Preheating Temperature Range | 0℃ ~ 550℃ | ||
| Solder Wire Diameter | 0.4 / 0.6 / 0.8 / 1.0 / 1.2 / 1.6 mm | ||
| Tin Feeding Control | Precision Stepper Motor | ||
| External Dimensions (L×W×H) | 100×60×85 cm | ||
| Weight | 120KG | ||
We are a professional automatic soldering machine manufacturer, with over 20 years of industry experience.
Yes, we support both OEM branding and ODM technical customization.
Yes, we support customization based on product size, soldering process, fixtures, and production line integration requirements.
Spot soldering, drag soldering, and other programmable soldering paths.
Yes, the automatic soldering machine supports solder wire diameters typically ranging from 0.3 mm to 1.6 mm, including common sizes such as 0.5 mm, 0.8 mm, 1.0 mm, and 1.2 mm.

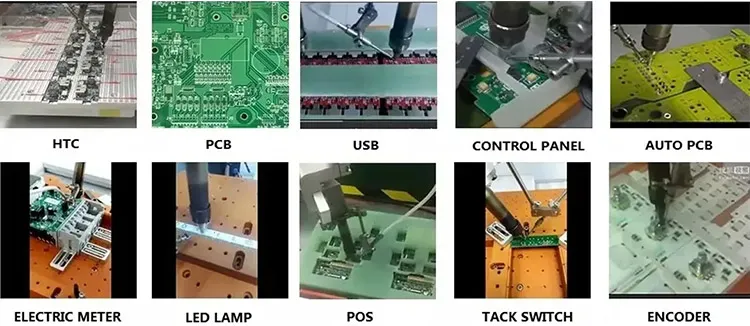

Electronics, automotive electronics, home appliances, LED, communication devices, and PCBA manufacturing.
Standard warranty is 12 months after delivery.
Usually 7–21 working days depending on configuration and customization level.
Yes, customers can send samples for soldering testing and evaluation.
We offer competitive pricing, reliable after-sales service, fast technical support, and 20+ years of manufacturing experience to ensure stable, high-quality production.
