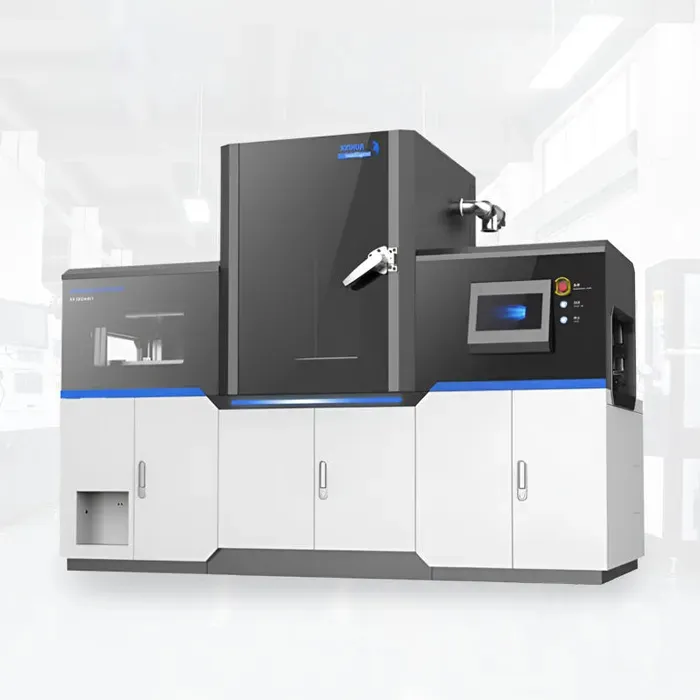

This automatic glue potting machine operates in a vacuum environment, ensuring the adhesive fully penetrates every corner of the product for perfect sealing and insulation. With three chambers working simultaneously, it eliminates the need for repeated vacuum cycles, significantly improving production efficiency and throughput. Ideal for high-precision, high-reliability potting applications in electronics, and other complex products.
| Models | XHD-DSR4401 |
|---|---|
| Operation mode | Single action, linkage, automatic |
| Proportioning accuracy | ≤ ±3% |
| Ejection accuracy | ≤ ±3% |
| Mixing ratio | 1:1~20:1 (customizable) |
| Glue dispensing speed | 0.1~50G/S (set according to customer product conditions) |
| Mixing device | Double layer mixing / single layer mixing (optional) |
| Mixed mode | Dynamic mixing / static mixing (optional) |
| Operating system | PLC + touch screen |
| Operation mode | Start switch |
| Measurement mode | 2 sets of high-precision metering pumps of independent brand (gear pump and screw pump can be) |
| Glue supply system | Gear pump, screw pump, plunger pump (optional) |
| Pipeline circulation system | Optional |
| Anti curing function | Optional |
| Operating humidity | 20-90% no condensation |
| Input power | AC380V 50-60Hz |
| Overall dimension | W2100*L900*H1650mm (for reference only, subject to actual product) |
| Weight | Around 2000kg |
If you have any questions or require a quote, please leave us a message. Our experts will respond within 24 hours and help you choose the right automation solution.
