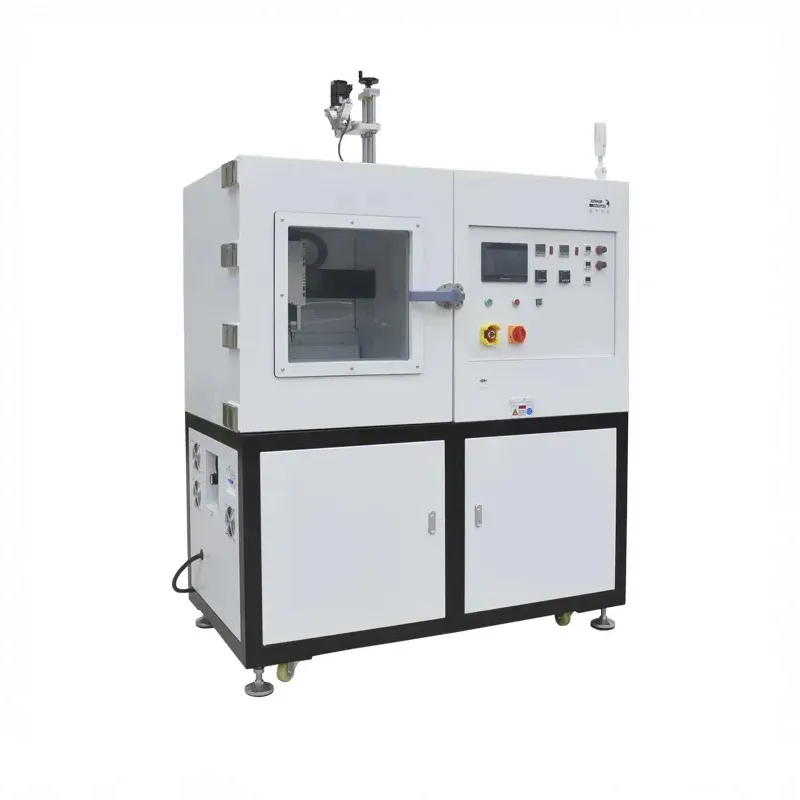

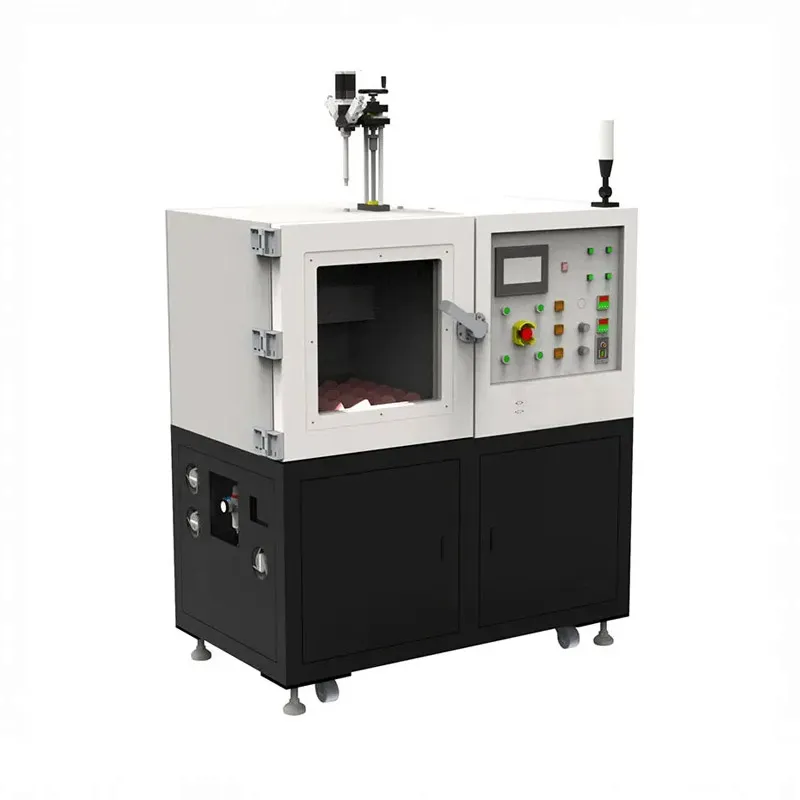

Automatic Double Liquid Vacuum Glue Potting Machine

Features:

* The automatic vacuum glue potting machine functions of drawing points, lines, surfaces, circle, consecutive complement of irregular curves and three axes linkage available, applicable to any irregular product potting.
* Potting volume, speed, time, and halting time can be set by parameters; glue outflow is quite stable with no leaking or dripping.
* CCD visual programming optional, realizing fast programming process.
* Parameters on the vacuum gauge adjustable, the pump automatically stops working when vacuum degree reaches the limit.
* Equipped with safety light curtain, make sure the equipment safely work.
* Full automatic process of glue mixing, potting, and various route potting.
* Glue mixed as needed before and in the process of potting, saving glue as much as possible.
* Dual glue tanks to store A and B glue separately, helping to store glue for a long time.
* Mixing ratio adjustable from 100:100 to 100:20 or from100:20 to 100:10, dynamic or static mixing mode optional to ensure fully
mixing.
* Unique control system helps to avoid uneven potting, drawing and bubble in the potting process without impaction from air
pressure.
* Height-adjusting device of Z-axis enables to work for workpiece of different height.
* (Automatic alarming by up /low level materials sensors to avoid short of material.
* Optional functions of stirring, heating and vacuum defoamation, fit for various potting /dispensing process.

Paramenters:

Models	XHD-SR4401
Operation mode	Single action, linkage, automatic
Proportioning accuracy	≤ ±3%
Ejection accuracy	≤ ±3%
Mixing ratio	1:1~20:1 (customizable)
Glue dispensing speed	0.1~50G/S (set according to customer product conditions)
Storage tank	2 stainless steel vacuum storage barrels, 1 cleaning barrel (the volume can be customized according to customer requirements)
Mixed mode	Dynamic/static hybrid (optional)
Operating system	PLC PC/teaching pendant
Operation mode	Foot switch + start switch
Measurement mode	2 independent brand high-precision metering pumps (gear pump/screw pump optional)
Mixing device	Double layer mixing/single layer mixing (optional)
Pipeline circulation system	Optional
Anti curing function	Optional
Input power	AC220V 50-60Hz
Operating humidity	20-90% no condensation
Overall dimension	W1960*L900*H1900mm (for reference only, subject to actual product)
Weight	Around 1500kg
