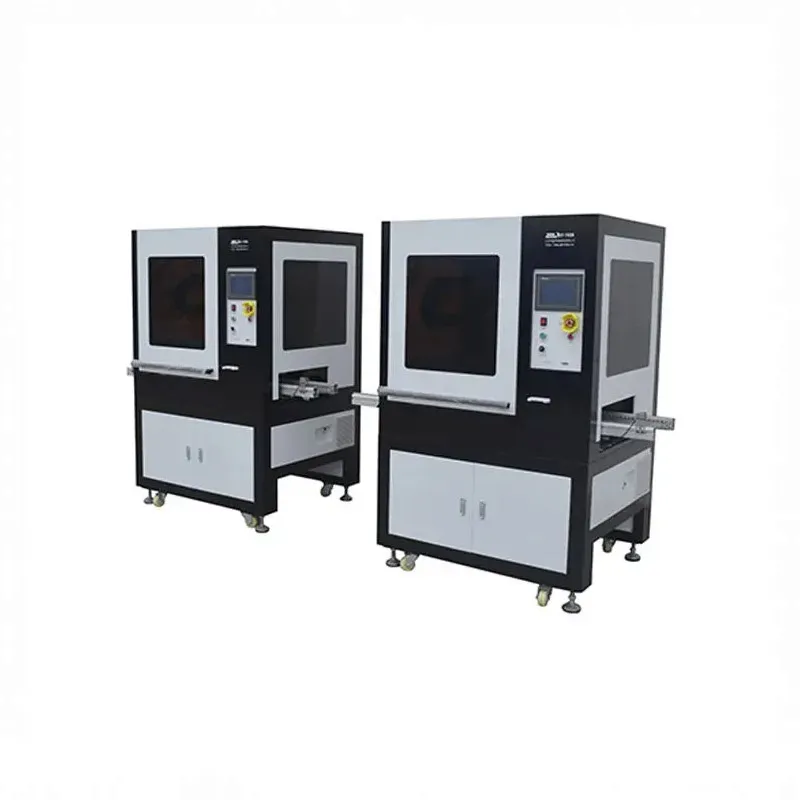

Inline AB Two-Component Automatic Glue Potting Machine

The Automatic Glue Potting Machine features a three-axis system and is operated via our proprietary Windows-based software, providing simple and convenient operation. The machine integrates seamlessly with an automatic production line.
It supports trajectory programming for points, lines, circles, and arcs, and can perform advanced functions such as three-dimensional potting through customized programs. The system can automatically meter, mix (ratios from 1:1 to 20:1), and dispense adhesives according to preset ratios.

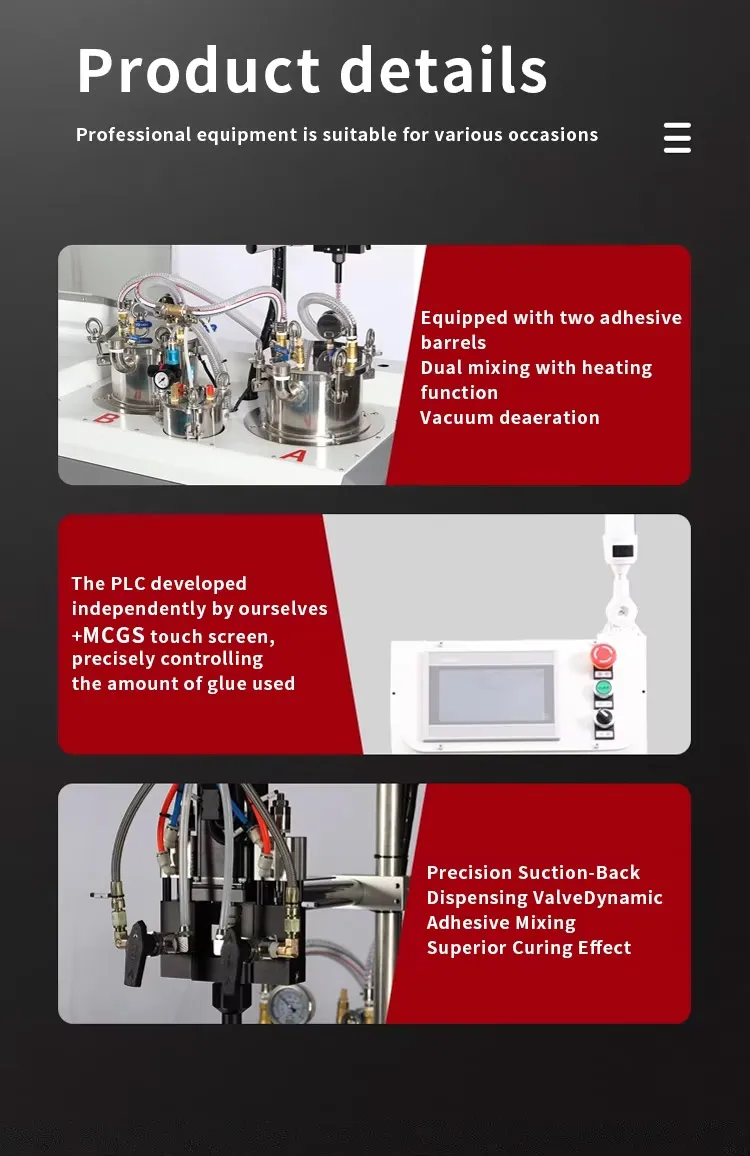

Additionally, the machine is equipped with an automatic material replenishment and degassing system, with optional features including stirring, tank heating, and automatic valve cleaning.

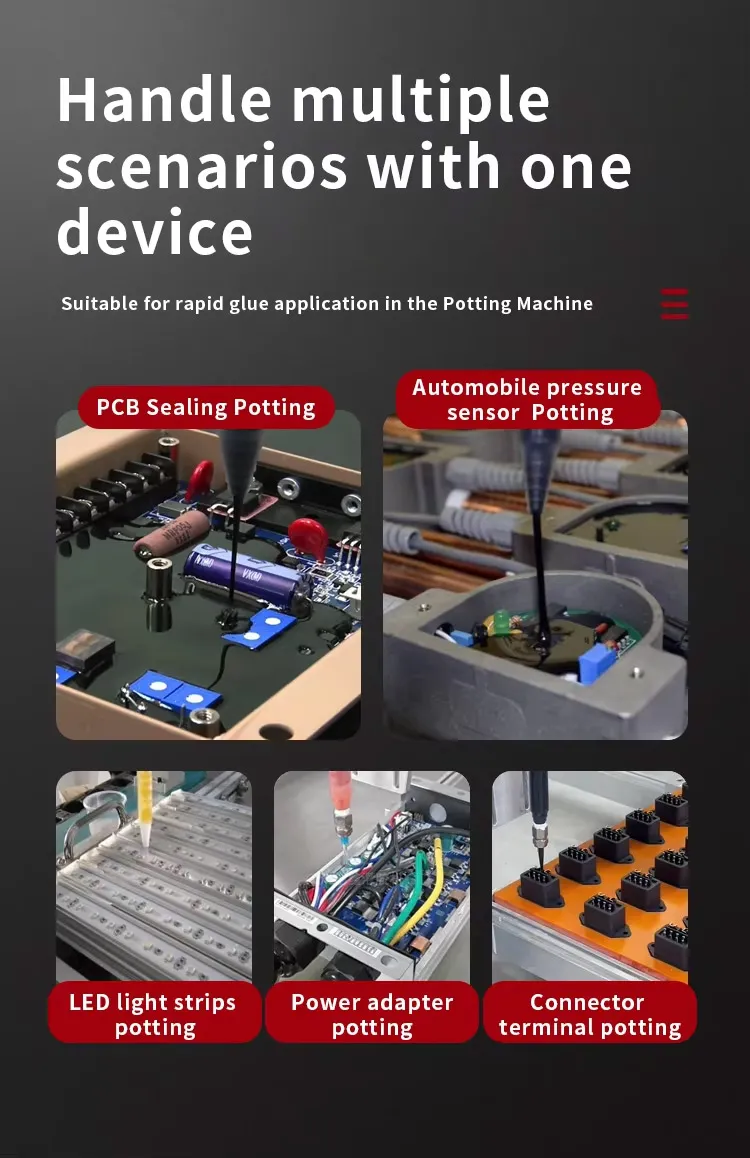

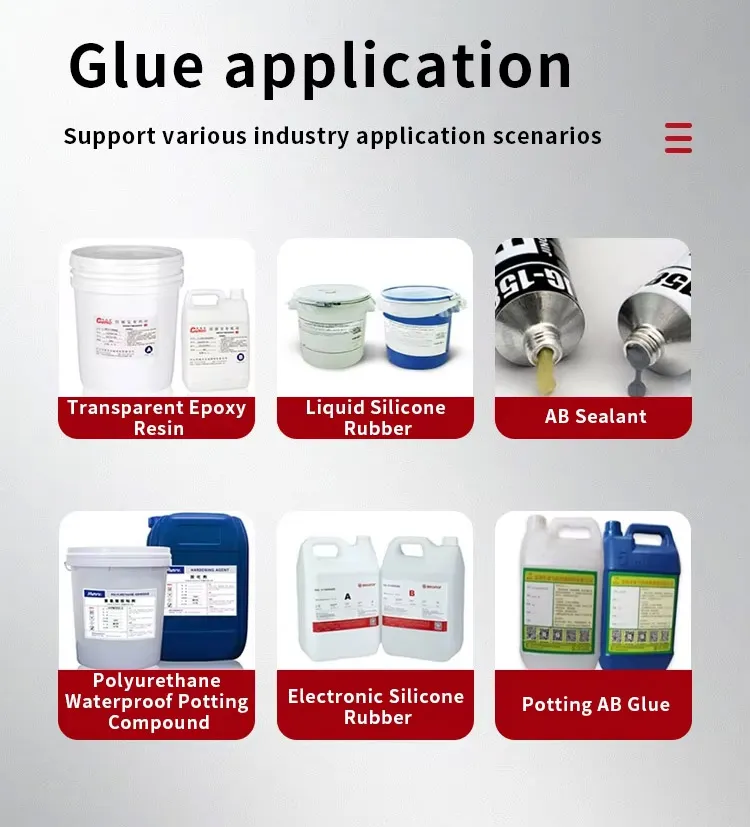

This Glue Potting Machine is compatible with a wide range of two-component materials, including epoxy, polyurethane, and silicone. It is suitable for applications in electronics, automotive components, new energy products, and industrial assembly. Its stable mixing structure, reliable dispensing control, and customizable configuration options make it capable of meeting diverse production process requirements.

Paramenters:

Models	XHD-SY540
Working range	X500*Y400*Z120mm
Maximum load	X/Y: 20kg; Z: 8KG
Moving speed	X/Y: ≤ 800mm/s; Z: ≤ 300mm/s
Motion accuracy	±0.01mm
Dispensing accuracy	≤ ±0.03mm
Glue ratio	1:1~20:1 (customizable)
Vision system	Optional
Pipeline width	100~500mm
Transmission mode	Timing belt / speed doubling chain / plug-in chain (optional)
Incoming induction	Optical fiber / photoelectric
Transmission mode	Servo motor + ball screw
Measurement mode	Metering pump
Mixed mode	Dynamic mixing / static mixing (optional)
Glue storage mode	2 high precision vacuum pressure barrels + 1 cleaning barrel
Operation mode	PC with vision; teaching pendant without vision
Anti-curing function	Provided
Input power	AC220V 50–60Hz
Overall dimension	Approx. W1300*L900*H1600mm (subject to actual product)
Weight	Approx. 1500kg
